In the world of HVAC service and replacement, few components are as widely recognized as the 48 frame condenser fan motor. Whether you are a technician troubleshooting a failed outdoor fan, a maintenance manager planning spare parts inventory, or a facility operator looking to understand your equipment better, knowing the details of this motor family is essential. The 48 frame designation is not just a random number—it represents a set of standardized dimensions, mounting configurations, and performance characteristics that have made these motors the backbone of residential and light commercial condensing units for decades.
This article provides a comprehensive, technically accurate look at 48 frame condenser fan motors. We will cover what the frame size means, typical specifications, common applications, how to select a replacement, and emerging efficiency trends. By the end, you will have a clear understanding of why this motor format remains so prevalent and how to work with it effectively.

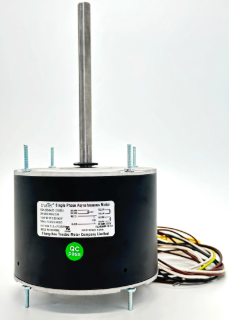

The term “frame size” in electric motors refers to a standard defined by the National Electrical Manufacturers Association (NEMA). For a NEMA 48 frame motor, several key physical dimensions are fixed:
Body diameter: 5‑5/8 inches (approximately 5.6 inches)
Shaft diameter: 1/2 inch
Shaft center height (from base to center of shaft): 3 inches
These dimensions are critical because they determine whether a motor will physically fit into the mounting bracket or cradle of a given condensing unit. However, it is important to understand that not every motor labeled “48 frame” is exactly the same. Variants such as 48Y, 48Z, and 48FR exist to accommodate different bolt circle patterns, shaft lengths, or mounting hole positions. For example, a 48Y motor might have a slightly different flange design compared to a standard 48 frame. When replacing a failed motor, always compare the actual dimensions—especially the shaft length (often 6 to 7 inches or more for condenser fan applications) and the bolt hole spacing—rather than relying solely on the frame number.
A 48 frame condenser fan motor is almost always a single‑phase, permanent split capacitor (PSC) or, increasingly, an electronically commutated motor (ECM). Below are the most common electrical and mechanical ratings you will encounter.
Residential and light commercial condenser fan motors typically range from 1/8 HP to 1 HP. The most frequently seen ratings are:
1/4 HP
1/3 HP
1/2 HP
Speed is measured in revolutions per minute (RPM). On 60 Hz power, the most common synchronous speeds for 48 frame motors are:
1075 RPM – by far the most common for modern standard‑efficiency units
825 RPM – often found on older or lower‑airflow applications
1100–1140 RPM – used in some commercial or high‑static pressure designs
Matching the original RPM is crucial. A motor that runs too slowly will reduce airflow across the condenser coil, causing high head pressure, reduced cooling capacity, and potential compressor overheating. A motor that runs too fast may create excessive noise, high wind velocity that can trip pressure switches, and unnecessary energy consumption.
These motors are available for a wide range of supply voltages to match different equipment classes:
115V – older residential systems and some smaller units
208‑230V – the standard for most North American split‑system air conditioners and heat pumps
277V – sometimes used in commercial buildings where lighting circuits supply 277V
460V – industrial and larger commercial condenser units
Many universal replacement 48 frame motors are designed for dual voltage (e.g., 208‑230/460V) to reduce the number of SKUs a service contractor must carry.
Because condenser fan motors operate outdoors, exposed to rain, dust, insects, and extreme temperatures, their enclosure type is critical. Virtually all 48 frame condenser fan motors are rated TEAO (Totally Enclosed Air‑Over), sometimes labeled OAO (Open Air‑Over) or OPAO (Open, Protected Air‑Over).
A TEAO motor is not hermetically sealed; instead, it relies on the airstream from the fan it drives for cooling. The enclosure protects the internal windings and bearings from falling debris and splashing water, but it is not submersible. High‑quality TEAO motors include shaft slingers, double‑sealed ball bearings with synthetic grease, and corrosion‑resistant coatings on the housing and hardware.
The 48 frame condenser fan motor is found in:
Residential split‑system air conditioners (both single‑stage and two‑stage)
Residential and light commercial heat pumps (as the outdoor unit fan)
Commercial refrigeration condensing units (for walk‑in coolers and freezers)
Packaged rooftop units (light commercial, up to approximately 10 tons)
In each application, the motor’s role is identical: drive the fan blade that pulls ambient air across the condenser coil, rejecting heat from the refrigerant to the outdoors. Without a functioning 48 frame motor, the system cannot condense refrigerant properly, leading to rapid performance degradation and potential compressor failure.
For decades, the Permanent Split Capacitor (PSC) motor has been the dominant technology in 48 frame condenser fan applications. PSC motors are simple, robust, and inexpensive. They use a run capacitor to create a phase shift and operate at a single fixed speed (or occasionally two speeds via tapped windings). PSC motors are easy to diagnose and replace, and universal aftermarket versions are widely available.
However, Electronically Commutated Motors (ECMs) are becoming increasingly common, especially in new original equipment. An ECM 48 frame motor offers:
Higher efficiency – typically 65–75% vs. 60–70% for PSC, with some designs exceeding 80%
Soft start – reduces mechanical stress on bearings and fan blades
Built‑in protection – electronic overload and over‑temperature safeguards
Variable or constant‑speed operation – some ECMs can ramp up slowly or adjust speed based on head pressure
For service replacements, PSC motors remain the most popular choice due to lower upfront cost and universal fit. However, when energy savings or utility rebates are a priority, upgrading to an ECM 48 frame motor can be a smart long‑term investment.
When a motor fails, follow this checklist to ensure a correct replacement:
Voltage and phase – Match the existing motor (e.g., 208‑230V single‑phase).
Horsepower – Equal or slightly higher is acceptable; never lower.
RPM – Must be identical; 1075 RPM is the most common.
Frame size – Verify that it is 48 frame, but also measure shaft length and bolt hole spacing.
Rotation direction – Many universal motors are reversible; check leads.
Mounting style – Belly band, thru‑bolt, or rigid base; measure the distance between mounting holes.
Enclosure – Must be TEAO or OAO; never use an open drip‑proof (ODP) motor outdoors.
Capacitor – PSC motors require a run capacitor; confirm the microfarad and voltage rating (often 5, 7.5, or 10 MFD at 370V or 440V).
Many aftermarket brands offer “universal” 48 frame motors that come with multiple mounting brackets, reversible rotation switches, and dual‑voltage capability—ideal for service trucks.
To extend the life of a 48 frame condenser fan motor, follow these best practices:
Keep the condenser coil clean – A dirty coil raises head pressure, making the motor work harder and run hotter.
Check the fan blade for balance – A bent or damaged blade causes vibration that destroys bearings.
Listen for unusual noises – Grinding or squealing indicates bearing wear; replace the motor before it seizes.
Replace the run capacitor proactively – A weak capacitor can cause the motor to overheat and fail prematurely.
Ensure proper airflow around the unit – Avoid planting shrubs too close or allowing debris to block air intake.
Most 48 frame condenser fan motors have a design life of 10 to 15 years in normal service, but harsh environments (coastal salt air, heavy pollen, extreme heat) can shorten that considerably.
The U.S. Department of Energy (DOE) has implemented energy conservation standards for small electric motors, including condenser fan motors under 1 HP. While PSC motors remain legal for replacement use, new OEM equipment is increasingly required to meet higher efficiency levels that favor ECM technology. Similarly, the European Union’s ErP (Energy‑related Products) Directive, particularly the 2024/1834 regulation, will tighten efficiency requirements for fans with electrical input power between 125 W and 500 kW starting in 2026‑2027.
For property owners and facility managers, staying ahead of these regulations can mean lower operating costs and compliance with local energy codes. Replacing an aging PSC 48 frame motor with an energy‑efficient ECM model often pays for itself through electricity savings within a few years, especially in hot climates with long cooling seasons.
The 48 frame condenser fan motor is a true workhorse of the HVAC industry. Its standardized dimensions, wide availability, and proven reliability have made it the default choice for outdoor condensing units in residential and light commercial applications. Whether you are dealing with a traditional PSC motor or a modern ECM replacement, understanding the key specifications—frame size, horsepower, RPM, voltage, enclosure, and mounting—is essential for proper selection and long‑term performance.
By paying attention to installation details, performing routine maintenance, and staying informed about efficiency trends, you can ensure that your 48 frame condenser fan motor delivers years of trouble‑free service, keeping your air conditioning or heat pump running efficiently through even the hottest summer days.
