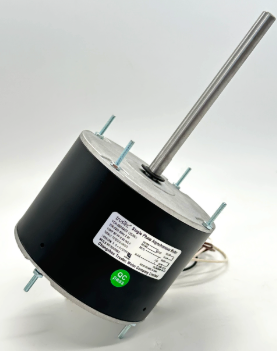

When servicing air conditioning and refrigeration equipment, HVAC technicians frequently encounter motors labeled with variations of the standard NEMA frame size. One such variation is the 48Y condenser fan motor. While it shares many characteristics with the common 48 frame motor, the “Y” suffix indicates specific dimensional or mounting differences that can be critical when sourcing a replacement. Understanding what 48Y means, where it is used, and how to select the correct substitute is essential for proper system operation and longevity.
This article provides a detailed technical overview of the 48Y condenser fan motor, including its definition, typical specifications, common applications, how it differs from standard 48 frame motors, and practical guidance for replacement.
In NEMA (National Electrical Manufacturers Association) motor nomenclature, the frame size designation consists of numbers followed optionally by letters. The number indicates the basic frame family—in this case, 48, which normally specifies a motor with a body diameter of 5‑5/8 inches (approximately 5.6 inches) and a shaft diameter of 1/2 inch. The letter suffix, such as Y, denotes a modification to the standard frame dimensions.
For a 48Y condenser fan motor, the “Y” typically indicates one or more of the following variations:
Different shaft length – The shaft may be longer or shorter than the standard 48 frame shaft (which is typically 1‑1/2 inches of extension for general‑purpose motors, though condenser fan motors vary widely).
Modified mounting hole pattern – The bolt circle or the distance between mounting holes may differ from a standard 48 frame.
Aligned or offset mounting feet – Some 48Y motors have mounting feet that are positioned differently relative to the motor’s centerline.
Special flange configuration – Certain OEM designs use a non‑standard flange that carries the 48Y designation.
It is important to note that “48Y” is not a rigid, universally standardized definition across all motor manufacturers. Different brands may use the “Y” suffix to represent slightly different modifications. Therefore, when replacing a 48Y motor, measuring the physical dimensions of the failed unit is always recommended over relying solely on the frame number.
Despite the dimensional variations, most 48Y condenser fan motors share a common set of electrical and performance characteristics with the broader 48 frame family. These include:
48Y motors for condenser fan duty are typically available from 1/8 HP to 1 HP, with 1/4 HP, 1/3 HP, and 1/2 HP being the most common ratings in residential and light commercial applications.
The most frequently encountered synchronous speeds on 60 Hz power are:
1075 RPM – by far the most common for modern equipment
825 RPM – found on older units or specialized low‑airflow designs
1100–1140 RPM – used in some commercial applications
Matching the original RPM is critical. A speed mismatch will directly affect condenser airflow, which in turn impacts head pressure, compressor efficiency, and system cooling capacity.
48Y condenser fan motors are manufactured to match common supply voltages:
115V – older residential systems
208‑230V – standard for most North American split‑system air conditioners and heat pumps
277V – commercial building applications
460V – industrial and larger commercial equipment
Many universal replacement motors intended for 48Y applications offer multi‑voltage capability (e.g., 208‑230/460V) to simplify inventory management.
Like all outdoor condenser fan motors, the 48Y must be rated for outdoor, weather‑exposed operation. The standard enclosure is TEAO (Totally Enclosed Air‑Over) , also referred to as OAO (Open Air‑Over) or OPAO (Open, Protected Air‑Over). TEAO motors rely on the airstream from the fan for cooling while protecting internal components from rain, dust, and debris. They are not submersible but are designed to withstand typical outdoor conditions including direct sunlight, high temperatures, and moisture.
The 48Y condenser fan motor is most often found in:
Residential split‑system air conditioners from specific OEMs (original equipment manufacturers) that specified the “Y” variant for their condenser fan assembly
Light commercial condensing units (up to approximately 10 tons)
Heat pump outdoor units
Commercial refrigeration condensing units – particularly those manufactured by brands such as Carrier, Rheem, and others that have historically used 48Y or 48Z frame variations
Because the “Y” suffix often indicates an OEM‑specific mounting pattern, these motors are encountered more frequently during replacement scenarios where the original manufacturer’s parts are being substituted with universal aftermarket motors.
The table below summarizes the key differences that a technician or facility manager should be aware of:
Characteristic | Standard 48 Frame | 48Y Frame |
|---|---|---|
Body diameter | 5‑5/8 inches | 5‑5/8 inches (same) |
Shaft diameter | 1/2 inch | 1/2 inch (same) |
Shaft center height | 3 inches (base mounting) | May vary, especially on flange‑mounted units |
Shaft length | Typically 1‑1/2 inches (general purpose); up to 6‑7 inches for condenser fan applications | Often longer or shorter; OEM‑dependent |
Mounting hole spacing | Standard NEMA pattern | Modified spacing or bolt circle diameter |
Mounting style | Belly band, thru‑bolt, or rigid base | May require specific bracket or flange |
The most practical implication is that while a standard 48 frame motor may have the same electrical ratings (voltage, horsepower, RPM), it may not bolt into the space originally designed for a 48Y motor. The mounting feet, bolt holes, or shaft extension length could be incompatible.
When a 48Y motor fails, follow these steps to ensure a correct replacement:
Verify voltage and phase – Match the nameplate rating of the failed motor (e.g., 208‑230V single‑phase).
Confirm horsepower and RPM – These must be identical. Do not undersize. Slightly oversized horsepower is acceptable, but RPM must match exactly.
Measure the shaft – Use a caliper to check the shaft diameter (should be 1/2 inch). Measure the usable shaft length from the face of the motor to the end of the shaft. Compare with the original.
Check the mounting configuration – Measure the distance between mounting holes or the bolt circle diameter. Note whether the motor uses a belly band, thru‑bolts, or a rigid base.
Determine rotation direction – Many universal replacement motors are reversible. Verify the original rotation (clockwise or counter‑clockwise as viewed from the shaft end).
Select the enclosure – Must be TEAO or OAO for outdoor service. Never use an open drip‑proof (ODP) motor in a condenser fan application.
Match the capacitor rating – For PSC motors, confirm the required run capacitor (microfarads and voltage). The capacitor is often sold separately.
Many reputable aftermarket brands offer “universal” condenser fan motors that are designed to replace multiple frame variations, including 48Y, 48Z, and standard 48 frame. These motors typically come with multiple mounting brackets, adapters, and reversible rotation leads, making them a practical choice for service trucks.
The majority of existing 48Y condenser fan motors are Permanent Split Capacitor (PSC) type. PSC motors are simple, durable, and widely available at a reasonable cost. However, Electronically Commutated Motors (ECMs) are increasingly used in newer equipment and are available as premium replacement options.
ECM motors offer higher efficiency (typically 65–75% or better), soft starting to reduce mechanical stress, and built‑in electronic protection. For property owners seeking energy savings or utility rebates, upgrading from a PSC to an ECM 48Y replacement motor—when physically compatible—can be a worthwhile investment.
To maximize the service life of a 48Y condenser fan motor:
Keep the condenser coil clean – A dirty coil increases head pressure, forcing the motor to run hotter.
Inspect the fan blade – A bent or unbalanced blade causes vibration that rapidly destroys bearings.
Replace the run capacitor proactively – A failing capacitor is a common cause of motor overheating and premature failure.
Listen for bearing noise – Grinding or squealing indicates bearing wear; replace the motor before it seizes.
A properly maintained 48Y condenser fan motor can last 10 to 15 years or more in typical residential service.
The 48Y condenser fan motor is a specialized variant of the widely used 48 frame motor family. While it shares the same basic body diameter and shaft diameter as a standard 48 frame motor, the “Y” suffix indicates important differences in shaft length, mounting hole spacing, or flange configuration. When replacing a 48Y motor, careful measurement of the failed unit’s physical dimensions is just as important as matching its electrical ratings.
Whether you are working with a traditional PSC motor or considering an ECM upgrade, understanding the unique characteristics of the 48Y frame ensures that you select the correct replacement, avoid installation problems, and restore the condensing unit to full, efficient operation. By paying attention to these details, HVAC professionals and facility managers can keep equipment running reliably for years to come.
