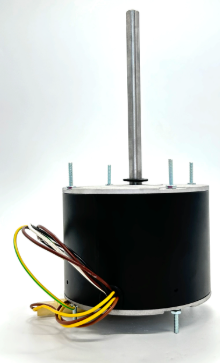

In the HVAC service industry, motor frame designations can sometimes appear confusing, especially when letters are added to standard NEMA numbers. The 48YZ condenser fan motor is one such designation that technicians and facility managers occasionally encounter, particularly when replacing motors in older or OEM-specific equipment. While it shares the basic 5.6-inch body diameter of the common 48 frame family, the “YZ” suffix indicates a distinct set of dimensional and mounting characteristics that set it apart from standard 48, 48Y, or 48Z motors.
This article provides a detailed technical overview of the 48YZ condenser fan motor—what the designation means, typical specifications, common applications, how it differs from similar frame sizes, and practical guidance for sourcing a correct replacement.
To understand the 48YZ designation, it helps to first understand NEMA motor frame nomenclature. The base number “48” refers to a NEMA 48 frame motor, which has a standard body diameter of 5‑5/8 inches (approximately 5.6 inches) and a shaft diameter of 1/2 inch. The letters that follow—in this case “YZ”—indicate modifications to the standard frame dimensions.
Unlike “Y” or “Z” alone, which typically signal one specific dimensional change (such as altered shaft length or different bolt circle spacing), the combination “YZ” generally indicates that multiple modifications have been applied to the base 48 frame. These may include:
Extended or shortened shaft length – Often longer than a standard 48 frame motor, sometimes exceeding 7 inches
Non-standard mounting hole pattern – The distance between mounting holes or bolt circle diameter differs from standard NEMA specifications
Modified flange configuration – A special flange design that requires a specific mounting bracket
Aligned or offset mounting feet – Feet may be positioned differently relative to the motor’s centerline
It is important to note that “48YZ” is not a universally standardized designation across all motor manufacturers. Different OEMs (original equipment manufacturers) may use the “YZ” suffix to represent slightly different combinations of modifications. Therefore, when replacing a 48YZ motor, measuring the physical dimensions of the failed unit is essential—relying solely on the frame number can lead to incorrect fit.
Despite the dimensional variations, most 48YZ condenser fan motors share common electrical and performance characteristics with the broader 48 frame family. These include:
48YZ motors for condenser fan duty are typically available from 1/8 HP to 1 HP. The most common ratings in residential and light commercial applications are:
1/4 HP
1/3 HP
1/2 HP
On 60 Hz power, the most common synchronous speeds are:
1075 RPM – standard for most modern equipment
825 RPM – found on older or specialized low-airflow units
1100–1140 RPM – used in some commercial applications
Matching the original RPM is critical. A speed mismatch directly affects condenser airflow, head pressure, compressor efficiency, and overall system performance.
48YZ motors are manufactured to match common supply voltages:
115V – older residential systems
208‑230V – standard for most North American split‑system air conditioners and heat pumps
277V – commercial building applications
460V – industrial and larger commercial equipment
Many universal replacement motors designed to fit 48YZ applications offer multi‑voltage capability, simplifying inventory for service contractors.
Like all outdoor condenser fan motors, the 48YZ must be rated for weather‑exposed operation. The standard enclosure is TEAO (Totally Enclosed Air‑Over) , also referred to as OAO (Open Air‑Over) or OPAO (Open, Protected Air‑Over). TEAO motors rely on the fan’s airstream for cooling while protecting internal components from rain, dust, debris, and insects. They are not submersible but are designed to withstand typical outdoor conditions including direct sunlight, high ambient temperatures, and moisture.
The 48YZ condenser fan motor is most often encountered in:
Older residential split‑system air conditioners from specific brands that used custom frame variations
Light commercial condensing units (approximately 3 to 10 tons) where OEM engineering specified non‑standard mounting
Heat pump outdoor units manufactured during the 1990s and early 2000s
Commercial refrigeration condensing units for walk‑in coolers and freezers, particularly from brands such as Carrier, Rheem, Trane, and Lennox
Because the “YZ” suffix often indicates an OEM‑specific combination of modifications, these motors are encountered most frequently during service replacement scenarios where the original manufacturer’s part is being substituted with a universal aftermarket motor.
The table below summarizes the key differences that a technician or facility manager should be aware of:
Characteristic | Standard 48 Frame | 48Y Frame | 48Z Frame | 48YZ Frame |
|---|---|---|---|---|
Body diameter | 5‑5/8 inches | 5‑5/8 inches | 5‑5/8 inches | 5‑5/8 inches |
Shaft diameter | 1/2 inch | 1/2 inch | 1/2 inch | 1/2 inch |
Shaft length (condenser fan type) | 6‑7 inches typical | Varies (often longer) | Varies (often shorter) | Often extended (>7 inches) or custom |
Mounting hole spacing | Standard NEMA pattern | Slightly modified | Slightly modified | Significantly modified or non‑standard |
Flange configuration | Standard | Minor variation | Minor variation | Often unique to a specific OEM |
Interchangeability with standard 48 | Direct | Limited | Limited | Low; requires measurement |
The most practical implication is that while a standard 48 frame motor may have the same electrical ratings (voltage, horsepower, RPM), it will likely not physically fit in place of a 48YZ motor. The mounting feet, bolt hole spacing, shaft length, or flange design are typically incompatible without adapters.
When a 48YZ motor fails, follow these steps to ensure a correct replacement:
Note the voltage, phase, horsepower, and RPM from the motor nameplate. These must be matched exactly.
Use a caliper to confirm the shaft diameter (should be 1/2 inch). Measure the usable shaft length from the motor face (or bearing retainer) to the end of the shaft. Compare with the original.
Measure the distance between mounting holes, the bolt circle diameter (if flange‑mounted), and the overall motor length. Note whether the motor uses a belly band, thru‑bolts, or a rigid base.
Verify the original rotation as viewed from the shaft end (clockwise or counter‑clockwise). Many universal motors are reversible.
Must be TEAO or OAO. Never use an open drip‑proof (ODP) motor in a condenser fan application.
For Permanent Split Capacitor motors, note the run capacitor’s microfarad (µF) and voltage rating. Common values: 5, 7.5, or 10 µF at 370V or 440V.
Many reputable aftermarket brands offer “universal” condenser fan motors designed to replace multiple frame variations, including 48Y, 48Z, and 48YZ. These motors typically include:
Multiple mounting brackets and adapters
Reversible rotation leads
Dual or multi‑voltage capability
Extra‑long shafts that can be trimmed (where permitted)
Universal motors are often the most practical solution for 48YZ replacements because they eliminate the need to source an exact OEM match.
The majority of existing 48YZ condenser fan motors are Permanent Split Capacitor (PSC) type. PSC motors are simple, robust, and widely available. However, Electronically Commutated Motors (ECMs) are increasingly used in newer equipment and are available as replacement options where physical compatibility permits.
ECM motors offer higher efficiency (typically 15‑30% energy savings), soft starting, and built‑in electronic protection. For property owners seeking energy savings or utility rebates, upgrading from a PSC to an ECM 48YZ‑compatible motor—when available—can be a worthwhile long‑term investment.
To maximize the service life of a 48YZ condenser fan motor:
Keep the condenser coil clean – A dirty coil raises head pressure, forcing the motor to run hotter.
Inspect the fan blade regularly – A bent or unbalanced blade causes vibration that rapidly destroys bearings.
Replace the run capacitor proactively – A failing capacitor is a common cause of motor overheating.
Listen for bearing noise – Grinding or squealing indicates wear; replace the motor before it seizes.
A properly maintained condenser fan motor can last 10 to 15 years in typical residential service, even with the specialized dimensions of a 48YZ frame.
The 48YZ condenser fan motor represents a specialized variant within the widely used 48 frame motor family. While it shares the same 5.6‑inch body diameter and 1/2‑inch shaft diameter as a standard 48 frame motor, the “YZ” suffix indicates multiple dimensional modifications—typically involving shaft length, mounting hole spacing, or flange configuration—that make direct interchangeability with standard motors unlikely.
When replacing a 48YZ motor, careful measurement of the failed unit’s physical dimensions is just as important as matching its electrical ratings. Universal replacement motors, which include multiple mounting adapters and reversible rotation, offer the most practical solution for most service scenarios. By understanding the unique characteristics of the 48YZ frame, HVAC professionals and facility managers can select the correct replacement, avoid installation problems, and restore condensing unit performance reliably and efficiently.
