In modern heating, ventilation, and air conditioning systems, the fan coil unit (FCU) plays a silent but essential role. Whether installed in hotels, office buildings, hospitals, or residential apartments, fan coil units rely on a critical component to move air across the heating or cooling coil: the motor. As the industry shifts toward higher efficiency, lower noise, and smarter control, electronically commutated (EC) motors have become the gold standard for fan coil applications. For contractors, facility managers, and distributors, sourcing EC fan coil unit motors at wholesale prices offers a clear path to cost savings, reliable performance, and customer satisfaction. This article explores everything you need to know about EC fan coil unit motor wholesale, including technical benefits, common applications, selection criteria, and why Trustec stands out as a trusted partner.

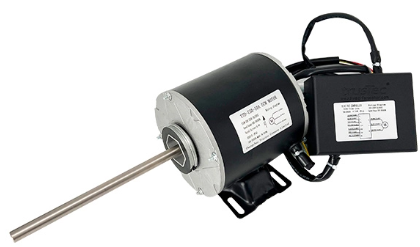

An EC fan coil unit motor is a brushless DC motor that integrates an electronic controller to manage speed, torque, and power input. Unlike traditional permanent split capacitor (PSC) or shaded-pole motors, EC motors use permanent magnets and intelligent circuitry to achieve exceptional efficiency—often exceeding 70% compared to 30–40% for conventional AC motors. In a fan coil unit, the motor drives a fan (usually a forward-curved or backward-curved centrifugal fan) that draws room air over a chilled water or hot water coil, conditioning the space.
The EC design allows for infinitely variable speed control. The motor can receive external signals (0–10V, PWM, or digital communication) from a thermostat, building management system (BMS), or a built-in potentiometer. This precise control translates to exact airflow delivery, quieter operation at reduced speeds, and significant energy savings. Because fan coil units run for long hours—often 24/7 in commercial buildings—the efficiency advantage of EC technology quickly pays for itself.
Understanding the differences helps wholesale buyers justify the higher initial cost of EC motors to their customers. The following advantages are driving rapid replacement and specification of EC fan coil motors:
PSC motors operate at a single or limited number of speeds and waste energy as heat. EC motors automatically adjust power consumption to match the required torque. In a typical 24/7 hotel or office application, an EC fan coil motor can cut electrical consumption by two-thirds compared to a PSC motor of the same nominal horsepower.
EC motors eliminate the hum and electrical noise associated with AC motors. When running at low speeds (e.g., night setback mode), they are nearly silent. This makes EC motors ideal for noise-sensitive environments such as hospital patient rooms, luxury apartments, and conference rooms.
Many EC fan coil motors include onboard memory and communication capabilities. They can report runtime hours, current draw, fault codes, and even predict bearing wear. Integration with BMS protocols (BACnet, Modbus, KNX) is possible via external gateways, enabling centralized control and preventive maintenance.
A single EC motor design can often replace multiple PSC motors because EC motors can be programmed for different speed-torque curves. Wholesale buyers can stock fewer SKUs while covering a wide range of OEM and replacement applications. Some EC motors accept universal voltage (100–277V AC) and offer auto-rotation detection, further reducing the need for model-specific inventory.
EC motors run cooler due to higher efficiency. Bearings, windings, and electronics experience less thermal stress. With sealed bearings and overcurrent/overvoltage protection, a quality EC fan coil motor typically lasts 50,000 to 70,000 hours—far beyond the 30,000-hour typical life of a PSC motor.
Wholesale customers span diverse sectors. Understanding these applications helps distributors target their sales efforts:
Hotel guest rooms – Individual FCUs require quiet, energy-saving operation to meet guest comfort and green certification (LEED, Green Key).
Office buildings – Variable occupancy demands responsive fan speed adjustment. EC motors pair with CO₂ sensors and occupancy detectors.
Hospitals and clinics – Reliability, low noise, and easy integration with room pressure controls are critical.
Senior living facilities – Quiet operation and precise temperature control improve resident well-being.
Condominiums and apartments – Energy savings reduce HOA electricity bills, and low noise prevents neighbor complaints.
Educational buildings – Classrooms benefit from reduced humming noise and lower operational costs.
Retrofit projects – Upgrading existing PSC-based fan coils to EC motors can qualify for utility rebates.
For distributors, mechanical contractors, and OEMs, wholesale purchasing means more than just lower unit price. The following factors determine a successful wholesale partnership:
Fan coil units typically use compact motors with frame sizes such as 42, 48, 51, or 56. Shaft diameters of 1/4″, 1/2″, or 5/8″ are common. The mounting bracket style (studs, bolt circle, or resilient rings) must match the FCU’s fan housing. A good wholesale supplier will provide dimensioned drawings and cross-reference guides.
Most EC fan coil motors accept a 0–10V control signal from a standard thermostat or controller. Some older FCUs use triac-based controllers designed for PSC motors. In such cases, the EC motor must be compatible with leading-edge or trailing-edge dimming, or the installer must replace the controller. Wholesale buyers should stock both standard 0–10V models and universal input models.
Look for UL/cUL recognition (or equivalent local marks: CE, TUV, EAC). For fire safety, motors used in air handling should meet UL 60730 or similar standards. Energy efficiency claims should be verified by independent testing.
Reputable manufacturers publish sound power levels (dBA) at various speeds. For residential-grade fan coil units, choose motors rated under 35 dBA at medium speed.
A minimum three-year warranty is industry standard for EC motors. Top-tier suppliers offer five-year warranties. Wholesale buyers should also have access to application engineers who can help with integration challenges.
Because EC motors are growing in popularity, upstream component shortages can occur. Reliable wholesale partners maintain regional stock and offer predictable lead times, especially before peak HVAC seasons (spring and autumn).
Trustec (www.trustecgroup.com) has earned a strong reputation among HVAC professionals for delivering high-quality EC motors at competitive wholesale prices. Their EC fan coil unit motor lineup is specifically engineered to meet the demands of modern buildings: high efficiency, whisper-quiet operation, and drop-in compatibility with major FCU brands including Carrier, Trane, Daikin, Johnson Controls, and many Asian manufacturers.
Trustec’s EC fan coil motors feature:
Wide voltage range (100–277V AC) – one model fits multiple regions.
Integrated 0–10V / PWM speed control with optional potentiometer.
Soft-start and overcurrent protection to extend motor and fan life.
All-metal bearing housings and dynamically balanced rotors for minimal vibration.
Plug-and-play connectors that match common FCU terminal blocks, reducing installation time.
For wholesale customers, Trustec offers tiered pricing starting from small carton quantities (12–24 units) up to pallet loads (500+ units). They provide private labeling options for large distributors and OEMs. Their logistics team can ship from regional warehouses to meet just-in-time construction or maintenance schedules. Additionally, Trustec supplies detailed specification sheets, wiring diagrams, and video installation guides—resources that help wholesalers support their own customers effectively.
The upfront cost of an EC motor is usually 2–3 times that of a PSC motor. However, the payback period in continuous-use applications is often less than 12 months due to electricity savings. For a building with 500 fan coil units, switching to EC can save tens of thousands of dollars annually. Wholesale pricing shortens the payback further, making retrofits attractive even for budget-conscious facility managers.
Additionally, many utilities offer incentives for EC motor upgrades. The Consortium for Energy Efficiency (CEE) lists EC fan coil motors as a prescriptive measure. Wholesale buyers can guide their customers to these rebates, adding value beyond the motor sale.
The next generation of EC fan coil motors will feature integrated Bluetooth or Wi-Fi for commissioning via smartphone apps. Some manufacturers are developing motors with self-diagnosing algorithms that alert building staff before a failure occurs. Trustec is actively investing in R&D to bring these innovations to the wholesale market at accessible price points.
EC fan coil unit motors represent a smart investment for any building owner, contractor, or distributor focused on energy efficiency, occupant comfort, and long-term reliability. For wholesalers, stocking EC motors is not just a trend—it is a necessity to meet tightening energy codes and customer expectations. By partnering with a trusted supplier like Trustec, you gain access to a comprehensive range of high-performance EC fan coil motors, flexible wholesale pricing, and expert technical support. Whether you are equipping a new high-rise hotel or modernizing an aging office building, choosing EC fan coil unit motor wholesale from Trustec ensures you deliver the best in modern HVAC technology.
