When it comes to maintaining an efficient and reliable heating, ventilation, and air conditioning (HVAC) system, few components play as critical a role as the HVAC condenser fan motor. This small but powerful device is responsible for driving the fan that moves air across the condenser coil, enabling heat rejection from the refrigerant to the outdoor environment. Without a properly functioning condenser fan motor, even the most advanced air conditioner or heat pump will quickly lose its ability to cool or heat effectively.
This article provides a detailed look at HVAC condenser fan motors: what they do, how they are built, common types, failure symptoms, selection criteria, and maintenance best practices. Whether you are a facility manager, a maintenance technician, or simply a property owner looking to understand your equipment better, this guide will give you the essential knowledge you need.
An HVAC condenser fan motor is an electric motor specifically designed to drive the fan blade in the outdoor condensing unit of a split-system air conditioner or heat pump. The motor is typically mounted inside the condenser cabinet, with the fan blade attached directly to its shaft. When the motor runs, it spins the fan, which draws ambient air through the condenser coil, carrying away the heat that has been released from the high-pressure, high-temperature refrigerant.
In simple terms, the condenser fan motor enables the heat exchange process that makes air conditioning possible. Without adequate airflow across the condenser coil, the refrigerant cannot condense properly, leading to high head pressures, reduced cooling capacity, and eventual compressor failure.
HVAC condenser fan motors are not general-purpose motors — they are engineered specifically for outdoor, harsh-environment duty. Several technical characteristics define this product category:
Most residential and light commercial condenser fan motors adhere to NEMA (National Electrical Manufacturers Association) frame standards, with 48 frame being the most common. A NEMA 48 frame motor has a body diameter of approximately 5.6 inches and a shaft diameter of ½ inch. Other frame sizes (such as 42, 48Y, 48Z, or 56) exist but are less common in standard residential units.
Condenser fan motors typically range from 1/8 HP to 1 HP, with 1/4 HP, 1/3 HP, and 1/2 HP being the most frequently encountered in split-system residential applications. Commercial and industrial units may use motors up to 1 HP or more, depending on the size of the condenser coil and the required airflow.
The rotational speed of the motor is measured in revolutions per minute (RPM). The most common speeds for condenser fan motors are:
1075 RPM – standard for many residential condensing units
825 RPM – often found on older or lower-efficiency units
1100–1140 RPM – used in some commercial applications
Matching the original RPM is essential. A slower motor will reduce airflow, causing high head pressure and reduced efficiency. A faster motor may create excessive noise, higher power draw, and potential overloading of the compressor.
Condenser fan motors are manufactured for various supply voltages:
115V – older residential systems and smaller window units
208–230V – most common in North American residential and light commercial equipment
277V – sometimes found in commercial buildings using 277V lighting circuits
460V – industrial and large commercial systems
Many universal replacement motors offer multi-voltage capability (e.g., 208–230/460V) to reduce inventory requirements for service contractors.
Perhaps the most important specification for an outdoor condenser fan motor is its enclosure rating. The vast majority of these motors are rated TEAO (Totally Enclosed Air-Over), also referred to as OAO (Open Air-Over) or OPAO (Open, Protected Air-Over). This means the motor is designed to be cooled by the airstream of the fan it drives. The enclosure protects the internal windings and bearings from rain, dust, debris, and insects, but it is not fully sealed against submersion. Quality TEAO motors feature shaft slingers, sealed ball bearings, and corrosion-resistant coatings.
Two motor technologies currently dominate the HVAC condenser fan market: Permanent Split Capacitor (PSC) and Electronically Commutated Motor (ECM) .
PSC motors have been the industry standard for decades. They are simple, robust, and relatively inexpensive. A PSC motor uses a run capacitor to create a phase shift between the main and auxiliary windings, producing a rotating magnetic field. PSC condenser fan motors are typically single-speed devices, though some multi-speed versions exist.
Advantages of PSC motors include low initial cost, proven reliability, and easy replacement with universal aftermarket models. Disadvantages include relatively lower efficiency (60–70% range) and fixed-speed operation, which does not allow for variable airflow control.

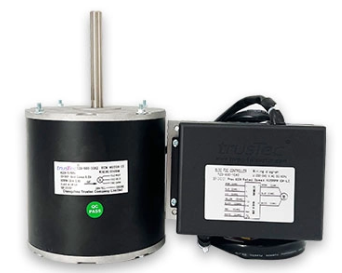

ECMs are more advanced, incorporating an electronic control module and a permanent magnet rotor. For condenser fan applications, constant-speed ECMs are increasingly used in new OEM equipment. These motors offer:
Higher efficiency (typically 65–75% or better)
Soft-start capability (reduces mechanical stress)
Built-in protection features (overload, over-temperature)
No run capacitor required
While ECMs cost more upfront, their energy savings often justify the premium, especially in regions with high cooling loads or where utility rebates are available.
Recognizing the symptoms of a failing condenser fan motor can prevent secondary damage to the compressor and refrigerant system. Watch for these indicators:
The outdoor fan does not spin when the system calls for cooling – The compressor may run, but the fan remains stationary. This often trips the internal overload protector on the motor.
The fan runs slowly or intermittently – A weak capacitor or worn bearings can cause reduced speed, leading to poor heat rejection.
Unusual noises – Grinding, squealing, or rattling sounds often indicate failing bearings or a loose fan blade.
The motor housing is excessively hot – While condenser motors are designed to run hot, temperatures beyond 200°F (93°C) suggest a problem.
The breaker trips or the fuse blows – An internal short in the motor windings can cause electrical faults.
High system head pressure – Measured with refrigerant gauges, high discharge pressure often points to inadequate condenser airflow.
When a motor fails, proper selection is critical. Here is a step-by-step checklist:
Verify voltage and phase – Match the supply voltage (e.g., 208–230V single-phase).
Match horsepower – Equal or slightly higher is acceptable; do not undersize.
Confirm RPM – Must be identical or within a very small margin (e.g., 1075 RPM).
Check frame size and shaft dimensions – 48 frame with ½-inch diameter shaft is standard; measure shaft length carefully.
Determine rotation direction – Many universal motors are reversible by changing lead connections.
Choose mounting style – Belly band, thru-bolts, or rigid base; verify bolt hole spacing.
Select enclosure type – Must be TEAO or OAO for outdoor service.
Note capacitor requirements – PSC motors require a run capacitor (microfarad and voltage rating).
Many aftermarket manufacturers offer “universal” condenser fan motors that come with multiple mounting brackets, reversible rotation, and multi-voltage capability – ideal for service trucks.
Proper installation extends motor life. Always disconnect power before servicing. When installing a new motor:
Use the original or an equivalent fan blade (pitch and diameter must match).
Ensure the fan blade is correctly positioned on the shaft – usually with the hub flush with the shaft end or as specified by the OEM.
Tighten the setscrew firmly, but do not overtighten.
Connect the capacitor and leads according to the wiring diagram (note that common color codes: black = high speed, red = medium, blue = lowest, brown = capacitor, white = common neutral for 115V).
Verify rotation direction before reassembling the cabinet.
For routine maintenance, keep the condenser coil clean, check for debris around the fan blade, and listen for unusual noises. Replacing a failing motor early can prevent a complete system shutdown during peak summer demand.
Regulatory bodies worldwide are pushing for higher efficiency in HVAC components. In the United States, the Department of Energy (DOE) has implemented standards that effectively require ECM or three-phase motors for certain small motor categories, including condenser fan motors under 1 HP. In the European Union, the ErP (Energy-related Products) Directive imposes increasingly stringent efficiency requirements, with the next major update taking effect in 2026–2027.
For building owners, upgrading from an older PSC condenser fan motor to an ECM model can reduce fan energy consumption by 15–30%, sometimes qualifying for utility incentives. Over the life of the equipment, these savings often exceed the initial cost difference.
The HVAC condenser fan motor may be a small component, but its role in system performance, efficiency, and reliability cannot be overstated. Whether you are replacing a failed motor, specifying new equipment, or performing preventive maintenance, understanding the technical details – frame size, horsepower, RPM, voltage, enclosure type, and motor technology – is essential.
By choosing the right motor and installing it correctly, you ensure that your air conditioning or heat pump delivers the cooling and heating comfort expected, season after season, while minimizing energy waste and avoiding costly compressor failures.
