48 Frame ECM Motor: The Ultimate Guide to Efficiency & Performance
Target Keyword: 48 frame ECM motor
When it comes to modern HVAC systems, precision engineering and energy efficiency are no longer just “bonus features”—they are requirements. At Trustec, we have spent years analyzing motor performance data, and one component that consistently stands out for commercial and industrial applications is the 48 frame ECM motor.
Whether you are an OEM manufacturer, a maintenance manager, or a system designer, understanding the nuances of this specific motor size and technology can drastically change your operational costs and system longevity. In this comprehensive guide, we will dive deep into what makes the 48 frame ECM motor a superior choice, its common applications, and how to troubleshoot it effectively.

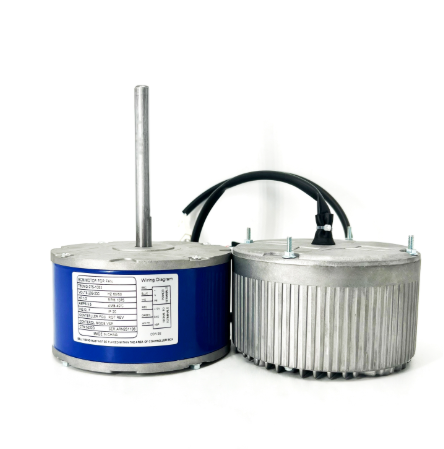

To understand the value, you must first break down the terminology. The "48 frame" refers to the mounting and dimensional standards set by NEMA (National Electrical Manufacturers Association). Specifically, a 48 frame motor has a shaft height of 3.0 inches and specific bolt circle dimensions. This frame size is the "Goldilocks" of HVAC motors—it is compact enough to fit in tight air handlers but powerful enough to drive significant airflow.
The "ECM" stands for Electronically Commutated Motor. Unlike traditional PSC (Permanent Split Capacitor) motors, an ECM uses a permanent magnet rotor and a microprocessor-controlled stator. Essentially, a 48 frame ECM motor is a brushless DC motor that behaves like a sophisticated AC motor, constantly adjusting its torque to meet system demands.
At Trustec, we have observed that facilities still relying on obsolete PSC motors waste up to 60% of their motor energy as heat. Here is why the 48 frame ECM motor is the industry standard for retrofits and new builds.
The most cited benefit is efficiency. A standard PSC motor operates at roughly 40-60% efficiency at low speeds. In contrast, a 48 frame ECM motor operates at 80-90% efficiency across its entire speed range. For a facility running air handlers 24/7, switching to a Trustec ECM solution can reduce fan energy consumption by up to 70%. This directly impacts your bottom line, often leading to a payback period of less than 12 months.
Ductwork gets dirty. Filters clog. In a PSC motor, a clogged filter reduces airflow, causing coils to freeze or overheat. In a 48 frame ECM motor, the microprocessor senses the increase in static pressure and increases torque to maintain the programmed CFM (Cubic Feet per Minute). This ensures your space remains comfortable and your equipment remains safe, regardless of external conditions.
Noise pollution is a significant concern in hotel rooms, hospitals, and office buildings. Because the 48 frame ECM motor soft-starts and ramps up slowly, there is no loud "whoosh" or humming at start-up. Furthermore, the elimination of the capacitor (a common source of buzzing in PSC motors) makes these units virtually silent.
The versatility of the 48 frame size makes it a staple in the HVAC industry. Here are the most common applications where Trustec supplies these motors:
Air Handlers (AHUs): Ideal for horizontal and vertical units requiring 1/3 to 1 HP.
Condenser Fans: The sealed nature of the ECM makes it resistant to weather damage.
Heat Pumps: Improves the seasonal energy efficiency ratio (SEER) of the unit.
Commercial Refrigeration: Evaporator fans in walk-in coolers and freezers benefit from the low-end torque.
Portable Air Scrubbers: Where variable speed is needed for different filtration levels.
When sourcing a 48 frame ECM motor for your specific project, not all units are created equal. Here are the specifications Trustec recommends verifying before purchasing:
Horsepower Range: Most 48 frame ECMs range from 1/8 HP to 1 HP. Ensure your replacement motor matches the torque curve of the original, not just the HP label.
Voltage: Common configurations are 115V (single phase) and 230V. Always double-check your supply.
RPM: Unlike PSC motors which are locked to one speed (e.g., 1075 RPM), ECMs are programmed for specific RPM ranges. Look for multi-speed or variable speed programming options.
Rotation: Programmable rotation (CW/CCW) is a feature of high-quality 48 frame ECM motors, reducing inventory needs.
Upgrading to a 48 frame ECM motor is straightforward, but it is not a "plug-and-play" swap if you are replacing an ancient shaded-pole motor. Here are three pro-tips from the Trustec engineering team:
Check the Control Signal: ECM motors require a 24V DC or 0-10V DC signal for speed control. If your existing control board outputs high voltage to a PSC motor, you will need a retrofit module or a specific universal ECM designed for high-voltage inputs.
Duct Static Pressure: Because a 48 frame ECM motor is so powerful, it can actually overcome weak ductwork, causing noise. Always perform a static pressure test after installation to ensure you aren't overshooting the CFM.
Programming: Before mounting the motor, use the manufacturer’s programming tool (or dip switches) to set the "Airflow" or "Torque" mode. For variable air volume (VAV) systems, Torque mode is usually preferred.
Even the best 48 frame ECM motor can run into issues if the system around it fails. Here is a quick troubleshooting guide for Trustec users:
Motor won't start: Check the 24V signal at the low-voltage terminals. If there is no signal, the thermostat or control board is the issue, not the motor.
Motor runs constantly: This is usually a feature, not a bug. However, if it runs when the thermostat is off, look for a stuck relay or a wiring short between the G terminal and the motor.
Humming but not spinning: ECMs have a "high-retention" magnet rotor. If the motor hums but the shaft is stuck, the bearing may be seized. If the shaft spins freely but the motor won't start, the control module is likely faulty.
As global energy regulations tighten (such as DOE 2027 efficiency standards), the days of the PSC motor are numbered. The 48 frame ECM motor represents the bridge between legacy mechanical systems and smart, connected buildings.
At Trustec, we are committed to providing motors that not only meet these standards but exceed them. Our 48 frame ECM lineup is tested for extreme temperatures, voltage fluctuations, and continuous duty cycles.
Investing in a 48 frame ECM motor is an investment in reliability. From reducing your kWh usage by 50-70% to ensuring your building stays comfortable regardless of filter load, the benefits are undeniable.
If you are currently struggling with high energy bills, frequent motor burnouts, or noisy fan coils, it is time to make the switch.
