When your central air conditioning system struggles to keep your home cool on a hot afternoon, one of the first components you should suspect is the AC condenser fan motor. This critical part, located inside the outdoor condensing unit, is responsible for moving air across the condenser coils to release heat from the refrigerant. Without a fully operational AC condenser fan motor, your entire HVAC system cannot function properly.
At Trustec, we specialize in helping homeowners, contractors, and property managers understand and maintain their cooling equipment. In this detailed guide, we will cover how the AC condenser fan motor works, common failure symptoms, selection criteria, and maintenance best practices.

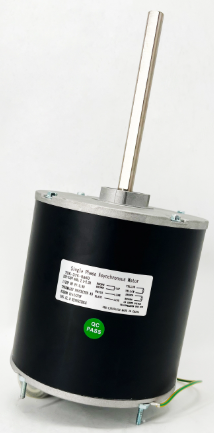

The AC condenser fan motor is an electric motor mounted inside the outdoor unit of a split air conditioning system. Its sole purpose is to drive the fan blades that pull outdoor air through the aluminum fins of the condenser coil. As hot, high-pressure refrigerant gas flows from the compressor into the condenser coil, the moving air absorbs heat from the refrigerant. This process condenses the refrigerant from a gas into a liquid, allowing it to flow back indoors for another cooling cycle.
Think of the AC condenser fan motor as the cooling system’s radiator fan—just like a car needs air passing through its radiator to cool the engine, an AC unit needs air passing through its condenser to cool the refrigerant.
Understanding the operation sequence helps in diagnosing problems. Here is the step-by-step process:
Cooling Demand: Your thermostat detects a room temperature above the set point and sends a 24-volt signal to the contactor relay inside the outdoor unit.
Contactor Activation: The contactor closes, connecting line voltage (typically 208–240 volts for residential systems) to both the compressor and the AC condenser fan motor simultaneously.
Fan Rotation: The motor shaft spins the attached fan blades, drawing ambient air horizontally through the condenser coil fins (on most residential units) or vertically upward.
Heat Rejection: As air moves across the coil, it carries away heat from the refrigerant. The refrigerant temperature drops, and it changes phase from gas to liquid.
Cycle Repetition: This process continues until the thermostat is satisfied.
Early detection can save you from a complete system breakdown. Look for these warning signs:
You hear the compressor humming inside the outdoor unit, but the fan blades are stationary. This could be a failed start capacitor. However, if replacing the capacitor does not solve the issue, the AC condenser fan motor windings may be burned out or the bearings seized.
The fan starts spinning, runs for five to ten minutes, then suddenly stops while the compressor continues running. After cooling down for 20 minutes, it restarts again. This pattern indicates a failing motor with worn internal thermal overload protection. The motor shuts itself off when it overheats due to failing bearings or insulation breakdown.
Grinding or scraping: Worn ball bearings inside the motor housing.
Louder than normal hum: A failing run capacitor or deteriorating motor windings.
Rattling or clicking: Loose fan blade hub or debris such as sticks or leaves contacting the spinning blade.
If the AC condenser fan motor spins but at a slower speed than intended, it moves insufficient air across the coil. Heat transfer efficiency drops dramatically, causing the system to blow only slightly cool or even warm air from your indoor vents.
A shorted AC condenser fan motor can draw locked rotor amps (LRA), instantly tripping the outdoor unit’s circuit breaker. If your breaker trips immediately upon a call for cooling, test the motor for a ground fault or short to the frame.
Compare your fan’s speed to a neighbor’s similar unit. If your blades appear to spin significantly slower, your motor may have failing internal windings or a weak run capacitor.
When it is time for replacement, you will typically choose between two categories:
OEM (Original Equipment Manufacturer) Motors:
Built exactly to the original specifications of your AC brand (e.g., Carrier, Trane, Lennox, Rheem).
Mounting holes, shaft length, rotation direction, and electrical connections match perfectly.
More expensive and may require longer delivery times.
Universal Replacement Motors:
Designed to fit multiple brands and models.
Include adaptable mounting brackets, reversible rotation, and multiple shaft length options.
More affordable and widely available through suppliers like Trustec.
For most applications, a high-quality universal AC condenser fan motor is the smart choice, provided its horsepower, voltage, RPM, and frame size meet or exceed the original motor’s ratings.
Selecting the wrong motor leads to premature failure or poor cooling performance. Always verify these five specifications:
Horsepower (HP): Common ratings include 1/6 HP, 1/4 HP, and 1/3 HP. Never install a lower HP rating than original. Higher HP may be acceptable but can cause excess airflow unless the RPM matches.
RPM (Revolutions Per Minute): Most residential condenser fan motors run at 810, 825, 1075, or 1100 RPM. Matching RPM is critical for proper heat exchange.
Voltage and Phase: Standard residential units use 208–230 volts, single phase. Smaller units may use 115 volts.
Frame Size: This indicates the mounting dimensions. Common frame sizes include 48, 48Y, and 51.
Shaft Diameter and Length: Typically ½ inch or 5/8 inch diameter. The shaft must be long enough to fully engage the fan blade hub.
Many people replace an AC condenser fan motor only to have the new motor fail within weeks. The cause is often an unbalanced or incorrect fan blade. Even a perfectly balanced motor will fail if the fan blade is bent, rusted, or set at the wrong depth inside the shroud.
When installing a new motor, follow these blade rules:
The blade must be positioned so that it sits halfway inside the venturi ring (the metal bell-mouth opening).
All blades on the fan must have the same pitch angle.
Replace the fan blade if it shows any signs of corrosion, cracks, or previous impact damage.
Preventive maintenance is the most cost-effective way to avoid motor failure. Follow these Trustec recommendations:
1. Clean the Condenser Coils Annually: Dirty coils raise the condensing temperature and pressure, forcing the fan motor to run longer and work harder. Use a garden hose and foaming coil cleaner every spring.
2. Keep the Area Clear: Maintain at least 24 inches of clearance around the outdoor unit. Trim back bushes, weeds, and grass. Remove leaves, dryer lint, and cottonwood seeds from the fan grille.
3. Check the Run Capacitor: A weak run capacitor reduces starting torque and running efficiency. Have a technician test the capacitor’s microfarad rating annually. Replace if it is more than 10% below specification.
4. Listen Monthly: Walk past your outdoor unit once a month while the AC is running. Any new grinding, squealing, or rattling sound is worth investigating immediately.
5. Install a Hard Start Kit (for older units): Older air conditioners with aging compressors and fan motors benefit from a hard start capacitor that provides additional starting torque, reducing stress on the motor windings.
At Trustec (www.trustecgroup.com), we understand that a failed AC condenser fan motor cannot wait. Every motor in our inventory is selected for reliability, efficiency, and ease of installation. Our products feature:
High-purity copper windings for maximum electrical conductivity and heat dissipation.
Sealed ball bearings that never require lubrication and operate quietly for years.
Automatic thermal overload protection to prevent fire hazards and complete burnout.
Color-coded wiring diagrams that make installation straightforward for any qualified technician.
The AC condenser fan motor is not the most expensive component in your air conditioning system, but it is one of the most essential. Ignoring the early warning signs—slow spinning, unusual noises, intermittent operation—will eventually lead to compressor failure, which costs thousands to replace. By recognizing symptoms early and choosing a quality replacement from Trustec, you restore your AC’s cooling capacity, improve energy efficiency, and avoid emergency breakdowns during the hottest days of the year.
Whether you are a homeowner performing proactive maintenance or an HVAC contractor in need of reliable parts, Trustec delivers the performance and durability you expect.
