For decades, alternating current (AC) motors have been the backbone of heating, ventilation, and air conditioning equipment worldwide. From residential condenser fans to large commercial air handlers, AC motors provide proven reliability, simple control, and cost‑effective operation. While brushless DC (BLDC) and electronically commutated (EC) technologies have gained attention for their high efficiency, the AC motor remains the most widely specified solution for countless applications where durability and value matter most.

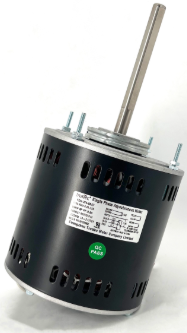

At Changzhou Trustec Co., Ltd. (brand: Trustec), we have manufactured AC motors for the global HVAC/R industry for more than 20 years. Our range includes shaded‑pole, permanent split capacitor (PSC), and split‑phase designs, with output power from 8W to 1200W and frame diameters from 3.3 inches to 6.3 inches. Trustec AC motors are engineered to meet international standards (UL, CE, CCC, RoHS) and can be customized to fit virtually any OEM requirement. This article explores the technology, applications, and advantages of AC motors—and why they remain an indispensable choice for climate control systems.
An AC motor converts alternating current into mechanical rotation through electromagnetic induction. The simplest form—the induction motor—consists of two main parts: a stationary stator and a rotating rotor. When AC voltage is applied to the stator windings, it creates a rotating magnetic field. This field induces current in the rotor bars (or in the case of a shaded‑pole motor, in a copper shading ring), generating a secondary magnetic field that interacts with the stator field to produce torque.
Unlike DC motors, AC induction motors do not require brushes or commutators, which means there are no friction parts to wear out. This brushless construction gives AC motors a long operational life and makes them suitable for continuous duty applications such as ventilation fans that run 24/7.
Within the AC motor family, three subtypes dominate the HVAC market:
Shaded‑pole motors – The simplest and lowest‑cost design, using a copper shading ring on each pole to create a slight phase shift. These motors have low starting torque (typically 25‑50% of full‑load torque) and are used in small fans, evaporator fans in refrigerators, and low‑power condenser fans.
Permanent split capacitor (PSC) motors – A more efficient design that uses a run capacitor permanently connected in series with the auxiliary winding. PSC motors offer higher starting torque than shaded‑pole types (typically 50‑100%) and operate more quietly. They are common in residential HVAC equipment including furnace blowers, air handlers, and heat pump condenser fans.
Split‑phase motors – These use a starting switch and a starting capacitor to achieve high starting torque (200‑250%), then switch to run windings once the motor reaches 75% of rated speed. They are found in larger compressors and heavy‑duty fan applications.
Trustec manufactures all three types, enabling us to recommend the optimal AC motor for each customer’s specific speed, torque, and duty cycle requirements.
Despite the rise of variable‑speed EC technology, AC motors continue to hold more than half of the global HVAC motor market by volume. Several practical reasons explain this enduring popularity:
Simplicity and robustness – AC motors have only two main components (stator and rotor), with no electronic drives or magnets that can demagnetize over time. They tolerate voltage fluctuations, high ambient temperatures, and dusty environments remarkably well. For applications where a motor runs at constant speed for years without intervention, AC remains the natural choice.
Low initial cost – For OEMs building price‑sensitive equipment such as window air conditioners, residential condenser units, or economy fan coils, the lower bill‑of‑material cost of an AC motor (especially shaded‑pole or PSC) is critical. The upfront savings can be substantial when multiplied across thousands of units.
Simple speed control – While AC motors are not inherently variable‑speed, multi‑speed operation is easily achieved by adding multiple winding taps. Many PSC motors used in furnace blowers offer three or four discrete speeds (low, medium, high). This is perfectly adequate for many comfort applications and avoids the cost of a variable‑frequency drive.
Serviceability – AC motors are well understood by field technicians around the world. A failed capacitor or thermal overload can be tested and replaced in minutes using basic tools. The same cannot always be said for electronically controlled EC motors, which may require specialized diagnostics.
Wide availability of replacement parts – Because AC motors are standardized in terms of frame size, mounting patterns, and shaft dimensions, replacement units are stocked by countless distributors globally. This supply chain maturity reduces downtime for building owners.
Trustec designs its AC motors with serviceability in mind: lead wires are clearly labeled, terminal connections are robust, and thermal protectors are easily accessible. For wholesale buyers, this means lower warranty risk and higher customer satisfaction.
When specifying an AC motor for an OEM application, engineers focus on several critical parameters. Trustec provides detailed technical datasheets and can customize each parameter:
Output power – From 8W (suitable for small electronics cooling fans) to 1200W (for large industrial condensers). The power rating determines how much air the fan can move at a given static pressure.
Speed – Standard synchronous speeds are 3000 RPM (2‑pole) or 1500 RPM (4‑pole) for 50Hz supply, and 3600 RPM or 1800 RPM for 60Hz supply. Multi‑speed PSC motors offer two to five tap‑selectable speeds, typically in ranges from 800 to 1600 RPM.
Torque characteristics – Starting torque, pull‑up torque, and breakdown torque must be matched to the fan or blower load. Centrifugal fans (forward‑curved) have low starting torque requirements, while axial fans pushing against high static pressure may need higher torque. Trustec’s engineering team can adjust rotor bar design and air gap to tailor torque curves.
Efficiency class – Trustec’s AC motor series meets IE2 (standard efficiency) or IE3 (premium efficiency) under IEC 60034‑30‑1, depending on power rating. For markets such as the European Union (EcoDesign Directive) or US Department of Energy regulations, we ensure compliance with applicable minimum efficiency standards.
Noise and vibration – AC motors inherently produce some magnetic hum and mechanical vibration. Trustec reduces noise through precision balancing of rotors, high‑quality bearings (typically double‑shielded ball bearings for larger sizes or sintered bronze sleeves for smaller shaded‑pole motors), and optimized stator slot designs.
Insulation class – Standard Trustec AC motors use Class B (130°C) or Class F (155°C) insulation systems, with Class H (180°C) available for high‑temperature environments such as commercial kitchen exhaust or industrial drying ovens. All motors include automatic reset or one‑shot thermal overload protection as standard or optional.
One of Trustec’s core strengths is the ability to customize AC motors for specific OEM applications without requiring a full engineering redesign. Common customizations include:
Shaft dimensions – Length, diameter, flat(s), keyway, or threaded end. We can machine shafts to accept specific fan hubs, pulleys, or couplings.
Mounting configurations – Resilient rings (rubber isolators), stud mounts, end brackets with custom bolt patterns, or slide‑in track mounts.
Lead wires and connectors – Wire length, gauge (AWG), color coding, pre‑stripped ends, or pre‑assembled connectors (Molex, JST, AMP, TE, etc.).
Capacitor integration – PSC motors can be supplied with a separate run capacitor (mounted on the motor bracket or remotely) or with a built‑in capacitor housing.
Enclosure protection – Open drip‑proof (ODP) for indoor dry locations, totally enclosed (TE) for dusty environments, or IP55 with sealed bearings and gasketed conduit boxes for outdoor/ washdown applications.
Shaft grounding – For inverter‑duty applications where variable‑frequency drives induce shaft voltages, Trustec can add a grounding brush or conductive grease to prevent bearing fluting.
These modifications are handled within our ISO9001‑certified production line, ensuring that every customized AC motor meets the same quality standards as our standard catalog models.
Trustec manufactures AC motors under strict quality control procedures that begin with incoming raw material inspection and continue through final functional testing. Each motor is tested for:
Dielectric withstand voltage (hipot) to verify insulation integrity
Insulation resistance (megger test)
No‑load current and speed
Vibration amplitude
Thermal protector operation (where fitted)
All Trustec AC motors intended for export carry applicable safety and environmental certifications. Our standard production includes:
UL/cUL (for North America) – many fan motor models
CE (European Union) – low voltage directive and EMC directive
CCC (China Compulsory Certificate)
RoHS (Restriction of Hazardous Substances)
SABER (for Saudi Arabia, available upon request)
For customers who require additional certifications such as VDE (Germany) or KTC (Korea), Trustec can arrange testing through accredited third‑party laboratories. Certificates are maintained centrally and provided with each shipment as needed.
Trustec AC motors are found in a wide range of equipment:
Residential air conditioning – Condenser fan motors (shaded‑pole or PSC) for outdoor units; evaporator fan motors for indoor air handlers; cross‑flow fan motors for wall‑mounted split systems.
Commercial rooftop units – Larger PSC motors (up to 1 HP) driving belt‑driven supply and exhaust fans.
Refrigeration – Evaporator fan motors in walk‑in coolers and freezers; condenser fan motors for refrigeration racks. Low‑temperature grease and moisture‑resistant windings are available.
Air curtains – Small, high‑speed shaded‑pole motors for entryway air curtains in retail stores.
Ventilation fans – Exhaust fans for bathrooms, kitchens, and industrial warehouses.
Unit heaters and fan coils – Multi‑speed PSC motors that allow the installer to select heating/cooling airflow.
In each of these applications, the AC motor delivers years of trouble‑free operation when properly matched to the load. Trustec supports OEMs by providing application engineering advice, sample testing, and detailed installation manuals.
While this article focuses on AC motors, it is worth briefly acknowledging the alternatives. BLDC and EC motors offer higher efficiency (typically 20‑30 percentage points better) and infinitely variable speed. However, they also bring higher component costs, more complex electronics, and potential electromagnetic interference issues. For many fixed‑speed or multi‑speed HVAC applications, the total cost of ownership (initial purchase + energy over 5‑10 years + repair probability) still favors AC motors, especially where electricity prices are moderate or duty cycles are low.
Trustec manufactures BLDC and EC motors as well, so we have no bias toward any single technology. We simply recommend what fits the customer’s performance targets and budget. For customers who decide that AC is the right choice, they receive the same engineering support and manufacturing quality as with our premium EC lines.
The AC motor is not a legacy technology—it is a living, evolving product family that continues to serve the HVAC industry reliably and economically. Trustec has refined our AC motor designs over two decades, incorporating better insulation materials, quieter bearing systems, and manufacturing processes that ensure consistent quality across thousands of units.
If you are an OEM or wholesale buyer looking for an AC motor that meets international standards, fits your specific mechanical and electrical requirements, and is backed by a supplier with a proven track record, we invite you to contact Changzhou Trustec Co., Ltd. Let us provide you with datasheets, samples, and competitive wholesale pricing. Trustec delivers AC motors you can trust.
