In the world of HVAC, the condenser fan motor plays a critical role. It is responsible for moving air across the outdoor coil, rejecting heat absorbed from indoor spaces to the outside environment. When this motor underperforms — whether due to low efficiency, poor speed control, or mismatched specifications — the entire refrigeration cycle suffers. As energy regulations tighten and facility managers demand lower operating costs, the industry has increasingly turned to a superior solution: the custom ECM condenser fan motor.
Unlike off‑the‑shelf motors that force equipment designers to accept fixed speed‑torque curves and standardized frames, a custom ECM (electronically commutated motor) is engineered to match the exact electrical, mechanical, and thermal requirements of a specific condenser unit. This article explores why custom ECM technology is transforming condenser fan applications, how it outperforms traditional motors, and what to consider when specifying a custom solution for residential, commercial, or industrial cooling systems.

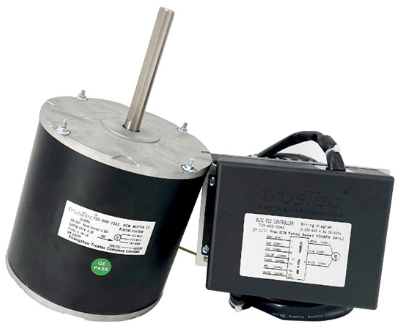

An ECM is a brushless DC motor that integrates a permanent magnet rotor with an onboard microprocessor‑based controller. For condenser fan applications, the ECM converts incoming AC power to DC, then electronically switches current to the stator windings using pulse‑width modulation (PWM). This allows precise control of motor speed, torque, and — in advanced models — airflow, independent of static pressure variations.
In a traditional condenser fan setup, a permanent split capacitor (PSC) motor runs at a single speed or possibly two speeds. It cannot adjust to changing outdoor temperatures, head pressure fluctuations, or partial load conditions. An ECM condenser fan motor, by contrast, can modulate its speed continuously. When ambient temperatures drop, the motor slows down, reducing noise and energy use while maintaining adequate head pressure. On hot days, it ramps up to maximize heat rejection.
The “custom” aspect takes this flexibility further. A custom ECM condenser fan motor is designed with specific windings, shaft dimensions, mounting flange patterns, control interfaces, and even programmed logic tailored to the OEM’s condenser coil characteristics, refrigerant type, and target operating envelope.
Standard condenser fan motors are built to cover a broad range of applications. A 1/3 HP 208‑230V PSC motor, for example, might be listed for dozens of different condenser models from various brands. While convenient for replacement markets, this “one‑size‑fits‑all” approach forces compromises.
Inefficient partial load operation – A standard PSC motor draws nearly full power even when only 50% airflow is needed.
No head pressure control – Without speed modulation, the motor cannot help maintain optimal condensing temperature under low ambient conditions, leading to short cycling or liquid floodback.
Mechanical mismatches – Shaft length, diameter, and keyway may be incorrect, requiring adapters or modifications.
Limited protection features – Generic motors often lack built‑in thermal protection, voltage sensing, or rotor‑lock detection that could be integrated in a custom design.
A custom ECM condenser fan motor eliminates each of these compromises. The manufacturer works directly with the equipment designer to define every parameter, from startup torque requirements (critical for fan blades with high inertia) to the control algorithm that responds to a pressure transducer or thermistor input.
ECM technology is inherently efficient. While a PSC condenser fan motor operates at 60‑70% efficiency at full speed and drops dramatically at reduced speeds, an ECM maintains 65‑80% efficiency across its entire speed range. For a custom unit, efficiency can be further optimized by selecting magnet materials, winding configurations, and lamination stacks specific to the fan’s typical operating point.
In real‑world terms, replacing a standard 1/4 HP PSC condenser fan motor with a custom ECM reduces fan energy consumption by 50‑70%. For a supermarket chain with hundreds of rooftop condensers or a data center with year‑round cooling, the annual kWh savings reach tens of thousands of dollars.
One of the most valuable features of a custom ECM condenser fan motor is its ability to maintain stable head pressure across varying outdoor temperatures. The motor’s controller can accept a 0‑10V, 4‑20mA, or PWM signal from a pressure sensor mounted on the discharge line. When head pressure rises above setpoint, the motor speeds up; when pressure drops, it slows down or even stops.
This precise modulation protects the compressor from operating at excessively low head pressures (which cause oil migration and reduced refrigerant flow) or excessively high head pressures (which increase compressor work and reduce system life). Custom programming allows the OEM to define the exact pressure‑to‑speed curve, including hysteresis and time delays, for their specific refrigerant (R‑410A, R‑32, CO₂, etc.).
Standard condenser fans often generate complaints in noise‑sensitive environments — hotels, hospitals, residential neighborhoods. The abrupt start of a PSC motor produces an audible “click” and an immediate jump to full speed, causing blade flutter and vibration.
A custom ECM condenser fan motor features programmable soft start: the controller ramps the motor from zero to target speed over 1‑5 seconds. This eliminates inrush current spikes, reduces mechanical stress on fan blades and mounting brackets, and dramatically lowers acoustic noise. At low ambient speeds, the motor may be barely audible.
Reliability is paramount for condenser fans, which operate outdoors in extreme heat, rain, snow, and dust. Custom ECMs can be specified with sealed enclosures (IP54 or IP55), corrosion‑resistant coatings, and high‑temperature bearings rated for 70°C ambient. The absence of brushes removes a common wear point, and the electronic controller can include protection against phase loss, over‑voltage, under‑voltage, and rotor stall.
Field data shows that a well‑designed custom ECM condenser fan motor often outlasts a PSC motor by two to three times — 90,000 hours versus 40,000‑50,000 hours — significantly reducing warranty claims and service calls.
Modern custom ECM motors can be integrated into building automation systems (BAS). Using Modbus, BACnet, or proprietary serial protocols, the motor can report real‑time data: speed, current draw, estimated power, running hours, and fault codes. This enables predictive maintenance — a gradual increase in current at the same speed may indicate dirty condenser coils or failing bearings.
For OEMs, this diagnostic capability also accelerates root‑cause analysis during warranty returns. The motor’s memory can log the last ten fault events, helping engineers distinguish between motor defects and system‑level issues (e.g., low voltage, obstructed airflow).
When ordering a custom ECM condenser fan motor, the buyer and manufacturer define a range of specifications. The most important include:
Power range – Typically 1/8 HP to 1 HP for residential/commercial condensers, up to 5 HP for industrial chillers.
Voltage – 115V, 208‑230V, 277V, 460V, or 575V, single‑phase or three‑phase.
Speed range – Maximum RPM (often 800‑1100 RPM for direct‑drive condenser fans) and minimum controllable speed.
Torque characteristics – Constant torque or variable torque, with specific startup boost if needed to accelerate large blades.
Control input – Tap selections (for simple applications), analog signal (0‑10V, 4‑20mA), PWM, or digital communication.
Mounting – Face mount, stud mount, or custom bracket; shaft diameter and length to match the fan hub.
Environmental rating – Outdoor enclosure, rain shields, drain holes, and UV‑resistant cable.
Agency approvals – UL 60730 for controls, UL 1004 for motors, CE, or specific regional marks.
Additionally, the motor’s firmware can include custom logic such as minimum run timers (to prevent short cycling), slow speed for winter operation, or a “boost on demand” function triggered by high refrigerant pressure.
The move toward custom ECM technology is accelerating across multiple sectors:
Residential HVAC – High‑end heat pumps and air conditioners use custom ECM condenser fans to achieve SEER2 ratings above 18, while reducing outdoor noise for neighboring homes.
Commercial refrigeration – Supermarket rack systems with multiple condenser fan motors benefit from individual speed control, maintaining stable head pressure during low‑ambient nights and partial loads.
Data center cooling – Chillers and dry coolers for IT environments require precise head pressure control year‑round; custom ECMs also reduce vibration that could affect sensitive equipment.
Industrial process cooling – Factories with welding equipment, plastic molding, or laser cutting often place condensers in dusty or oily environments. Custom sealed ECMs with washdown ratings provide reliable service where PSC motors fail quickly.
Cold storage and walk‑in freezers – Low ambient operation (down to -20°F) is a challenge for standard motors. Custom ECMs can be specified with low‑temperature grease and controller heaters to ensure startup in freezing conditions.
As the HVAC industry moves toward electrification and intelligent buildings, the custom ECM condenser fan motor will continue to evolve. We are already seeing prototypes with integrated pressure sensors (reducing external wiring), wireless configuration via Bluetooth for field technicians, and machine learning algorithms that learn the site’s daily pressure patterns to optimize speed profiles.
For OEMs, partnering with an experienced motor manufacturer early in the design phase is essential. The custom ECM is not just a component — it is an enabler of higher system efficiency, lower warranty costs, and a differentiated product in a competitive market.
The custom ECM condenser fan motor represents a fundamental improvement over fixed‑speed PSC motors. By tailoring every aspect — from windings and bearings to control logic and communication protocols — equipment manufacturers can achieve energy savings of 50% or more, precise head pressure control, quiet operation, and exceptional reliability. Whether you are designing a new rooftop unit, upgrading a chiller plant, or developing a next‑generation heat pump, the custom ECM condenser fan motor is a proven path to performance and efficiency.
