In the rapidly evolving landscape of modern HVAC and industrial systems, efficiency is no longer just an advantage — it is a requirement. As energy regulations tighten and operational costs continue to rise, manufacturers, engineers, and facility managers are increasingly turning to a solution that delivers both precision and performance: the custom ECM motor. This article explores what makes custom electronically commutated motors the preferred choice for demanding applications, how they outperform traditional motor technologies, and why tailored motor solutions are shaping the future of motion control.

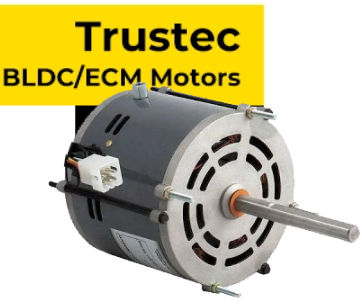

An Electronically Commutated Motor (ECM), also known as a brushless DC (BLDC) motor, is an ultra-high-efficiency programmable motor that combines a permanent magnet rotor with a built-in electronic controller. Unlike traditional AC induction motors that rely on brushes or mechanical commutation, ECMs use electronic switching to control current flow through the stator windings. This enables smoother operation, precise speed and torque control, and significantly higher energy efficiency.
The built-in controller converts incoming AC power to DC, continuously monitors rotor position using Hall-effect sensors or back-EMF detection, and switches current through the stator coils with MOSFET or IGBT transistors using pulse-width modulation (PWM). This intelligent electronic commutation allows the motor to draw only the required amount of power at any given load, minimizing heat buildup and electrical losses.
ECMs are commonly categorized into three types: constant airflow (variable speed), constant torque, and constant speed. Each type is designed for specific applications, with constant airflow ECMs typically used for indoor blower applications where maintaining consistent airflow under varying static pressure is critical, while constant torque ECMs provide energy savings primarily through speed tap control.
While standard ECMs offer substantial improvements over legacy motor technologies, many applications require a level of precision and integration that only a custom solution can provide. A custom ECM motor is designed and manufactured to meet specific customer requirements, including unique shaft designs, specialized mounting flanges, integrated gearboxes with custom gear ratios, and precise voltage compatibility ranging from 220V to 480V for regional standards.
For OEMs and design engineers, custom ECM motors eliminate the compromises inherent in off-the-shelf products. Instead of forcing a system design around an existing motor, engineers can have a motor built precisely to their specifications — from power output and frame size to control interface and communication protocol. This level of customization ensures optimal system performance, simplifies integration, and reduces time to market.
The value of custom ECM solutions extends beyond the motor itself. Experienced manufacturers work closely with OEMs on motor selection, control strategy alignment, and compliance with energy efficiency requirements such as DOE standards. This collaborative approach helps reduce engineering risk, accelerate development cycles, and ensure that the final product meets both performance targets and regulatory mandates.
The efficiency advantage of ECM technology over traditional Permanent Split Capacitor (PSC) motors is well documented and substantial. PSC motors, which have been the backbone of the HVAC industry for decades, operate at about 60-70% efficiency at full load. However, their efficiency drops dramatically when turned down — typically by at least half — resulting in real-world efficiencies of only 12% to 45% under typical operating conditions.
ECM motors, in contrast, maintain a high efficiency of 65% to 72% at all speeds. At full speed, ECMs are typically 10% to 20% more efficient than standard induction motors such as PSCs. When motor speed is reduced, that efficiency advantage increases — up to 30%. In practical terms, this translates to fan energy consumption reductions of 30% to 60% compared to standard PSC motors, with some high-performance models achieving up to 85% efficiency.
For building owners and facility managers, the financial impact is substantial. The U.S. Department of Energy has projected that efficiency standards promoting ECM adoption will save approximately 3.99 quads of energy, reduce carbon pollution by up to 34 million metric tons, and save Americans more than $9 billion in home electricity bills through 2030. These savings come from both reduced energy consumption during normal operation and the elimination of wasteful energy draw during low-load conditions — a common issue with single-speed PSC motors that consume 100% of their power whenever activated.
Beyond energy efficiency, custom ECM motors offer a range of operational and performance benefits that make them indispensable for modern HVAC, commercial, and industrial applications.
Soft Start Capability. ECMs are programmed with soft start and slewed speed ramps, which eliminate the large inrush of starting current that characterizes traditional motors. This reduces mechanical stress on mounting brackets, belts, and hardware, extending the service life of both the motor and the equipment it drives.
Quiet Operation. ECMs generate significantly less noise than comparable AC motors. The absence of brushes eliminates electrical noise and sparking, while precise electronic control ensures smooth, vibration-free rotation.
Reduced Maintenance. ECMs incorporate ball bearings with permanent lubrication, unlike PSC motors that use sleeve bearings requiring minimum rpm operation for oiling. The brushless design also eliminates friction-related wear, resulting in longer motor life and fewer service calls.
Longer Operational Lifespan. A typical ECM provides approximately 90,000 hours of operation compared to 50,000 hours for a standard PSC motor — translating to about 10 years of service versus 8 years for a PSC-based system.
Precise Control and Programmability. The built-in electronic controller allows ECMs to be programmed for constant airflow, constant torque, or constant speed operation. This programmability enables features such as factory pre-set air volume with ±5% accuracy, remote adjustment from building automation systems (BAS), and pressure-independent fan operation.
Wider Operating Range. The broader operational range of ECM motors allows a single model to replace two or more induction motor models. This simplifies product lines, reduces spare parts inventory, and increases contractor flexibility.
Government energy regulations are playing a significant role in accelerating the transition from traditional motors to ECM technology. The U.S. Department of Energy has established new minimum efficiency standards that increasingly mandate the use of high-efficiency motors across various applications.
The Fan Energy Rating (FER) standard, which took effect in July 2019, was essentially designed to regulate the efficiency of fans in gas-fired furnaces — which effectively means regulating the motor. This standard has driven an industry-wide shift from standard induction motors to ECMs, as manufacturers have no other lever to pull to meet the required efficiency levels.
More recently, the DOE has ruled that as of May 22, 2028, manufacturers will no longer be permitted to produce standard efficiency circulators that use AC induction motors. All new circulators must use high-efficiency motors such as ECMs instead. These regulatory mandates are not isolated to the United States — similar energy conservation policies are being implemented globally, driven by carbon neutrality goals and the increasing demand for energy-efficient and environmentally friendly solutions across HVAC, automotive, and appliance industries.
The versatility of custom ECM motors makes them suitable for an exceptionally wide range of applications. In the HVAC sector, ECMs are used in residential and commercial furnace blowers, air handlers, condenser fans, fan coil units, air curtains, and heat pump systems. The ability to maintain constant airflow under varying static pressure conditions makes them particularly valuable for variable air volume (VAV) systems.
Beyond traditional HVAC, ECM technology is increasingly deployed in data center cooling systems, clean rooms, cold rooms, and refrigeration equipment where precise airflow control and energy efficiency are critical. In industrial settings, ECMs power conveyor systems, process automation equipment, pumps, and variable refrigeration flow equipment. Emerging applications include electric vehicle cooling fans, agricultural ventilation systems for livestock facilities, and medical device components.
According to market research, the global electronically commutated motor market was valued at approximately USD 20.97 billion in 2024 and is expected to reach USD 36.45 billion by 2030, representing a compound annual growth rate of 9.49%. This growth is driven by increasing industrial automation, IoT integration for real-time performance monitoring and predictive maintenance, and rising urbanization in emerging markets.
As technology continues to advance, custom ECM motors are becoming smarter, more efficient, and more adaptable. The integration of IoT-enabled motor systems allows industries to collect real-time performance data, analyze operating patterns, and implement energy management strategies that further enhance operational efficiency. Sensorless vector field-oriented control (FOC) technology is replacing traditional Hall-effect sensors, reducing material costs and failure rates while improving efficiency, noise characteristics, and performance smoothness.
For OEMs and design engineers, partnering with an experienced motor manufacturer is essential to fully realize the benefits of custom ECM technology. The ideal partner offers not just manufacturing capability but also engineering expertise in motor selection, control strategy development, and regulatory compliance — helping customers reduce risk and accelerate time to market in an increasingly competitive environment.
Custom ECM motors represent a fundamental advancement in motion control technology. By combining exceptional energy efficiency, precise programmability, robust reliability, and the flexibility of tailored design, they are enabling a new generation of high-performance systems across HVAC, industrial, and commercial applications. As energy regulations become more stringent and operational costs continue to rise, the shift to custom ECM solutions is not merely an option — it is an imperative.
