The condenser fan motor is one of the hardest‑working components in any HVAC system. Mounted outdoors, it operates in extreme heat, rain, snow, and dust — often for 15 to 20 years. Its job is simple but critical: pull ambient air across the condenser coil to remove heat from the refrigerant. When the motor performs poorly, the entire system suffers: head pressure rises, compressor efficiency drops, energy bills increase, and equipment life shortens.
While off‑the‑shelf condenser fan motors can keep a system running, they force equipment designers and facility managers to accept fixed speed‑torque curves, standard shaft dimensions, and generic control logic. A custom HVAC condenser fan motor eliminates these compromises. It is engineered from the ground up to match the exact electrical, mechanical, and thermal requirements of a specific unit — whether it is a residential air conditioner, a commercial rooftop package, an industrial chiller, or a refrigeration rack in a supermarket.
This article explores why custom ECM (electronically commutated motor) technology is transforming condenser fan applications, the specific parameters that can be tailored, the efficiency and reliability gains, and how to specify a custom motor for your next HVAC project.
Most condenser fan motors sold today are “replacement” class — designed to fit a wide range of equipment. A typical 1/3 HP 208‑230V PSC (permanent split capacitor) motor may be listed for dozens of different condenser models from various brands. This broad compatibility comes with inherent trade‑offs.
Fixed speed operation is the biggest limitation. A standard PSC motor runs at full speed whenever it receives power. On a mild spring day when outdoor temperature is 65°F, the condenser does not need the same airflow as on a 100°F summer afternoon. But the motor cannot adjust. It wastes energy and, more critically, drives head pressure too low, causing refrigerant floodback, oil migration, and compressor wear.
Mechanical mismatches are another issue. A generic motor may have the wrong shaft diameter (e.g., 1/2 inch vs. 5/8 inch), incorrect shaft length, or a mounting flange that does not align with the fan blade hub. Adapters and shims add labor, vibration, and potential failure points.
No communication capability means the motor operates in isolation. There is no way to know its current draw, speed, or running hours — data that could enable predictive maintenance and energy monitoring.
A custom HVAC condenser fan motor solves each of these problems by being designed specifically for one application, not a hundred.

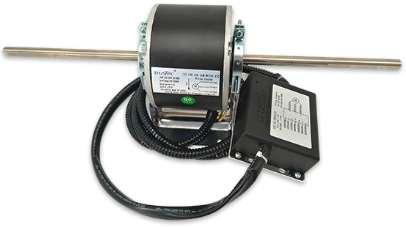

Most custom condenser fan motors today use electronically commutated motor (ECM) technology. An ECM is a brushless DC motor with an integrated microprocessor controller. Unlike a PSC motor that relies on a capacitor and mechanical switching, an ECM uses electronic commutation: the controller monitors rotor position via Hall sensors or back‑EMF and energizes stator windings in precise sequence using MOSFETs or IGBTs.
This electronic control enables features that are impossible with PSC technology:
Variable speed – The motor can run at any speed from near‑zero to its maximum, adjusting continuously to system demand.
Soft starting – Instead of a sudden inrush current spike, the motor ramps up smoothly, reducing mechanical stress on fan blades and mounts.
Constant torque or constant speed regulation – The controller maintains the commanded torque or speed even as coil fouling or wind changes alter the load.
External control – The motor accepts analog (0‑10V, 4‑20mA), PWM, or digital signals to vary speed based on refrigerant pressure, ambient temperature, or building automation commands.
When these capabilities are combined with custom mechanical and electrical design, the result is a motor that behaves as if it were an original part of the HVAC system — because it is.
A truly custom HVAC condenser fan motor is defined by a detailed specification covering electrical, mechanical, control, and environmental aspects. Below are the key parameters that can be tailored.
Power output – From 1/8 HP for small residential condensers to 5 HP or more for industrial chillers.
Voltage and phase – 115V single‑phase (window units, small splits); 208‑230V single‑phase (most residential and light commercial); 208‑230V or 460V three‑phase (large commercial and industrial); 277V, 480V, 575V available for specialized equipment.
Frequency – 50Hz or 60Hz (or dual‑rated for export).
Efficiency class – Can be optimized for IE3, IE4, or even IE5 (super premium efficiency) levels, exceeding current DOE minimum standards.
Frame size and mounting – NEMA 42, 48, 56, 143T, or custom metric frames. Bolt circle diameter, pilot diameter, and thread type can be specified to match the condenser’s mounting plate exactly.
Shaft design – Diameter (1/2″, 5/8″, 3/4″, etc.), length, keyway or flat, material (stainless steel for corrosive environments).
Bearing system – Double‑sealed ball bearings with high‑temperature grease (rated for 70°C+ ambient). Custom bearings for low‑temperature operation (e.g., walk‑in freezers down to -20°F).
Enclosure – Open drip‑proof (ODP) for sheltered locations; totally enclosed air‑over (TEAO) for direct exposure; IP54 or IP55 for washdown or coastal applications. Corrosion‑resistant coatings (epoxy, e‑coat, or stainless steel housings) can be added.
Control type – Constant speed (simple), constant torque (for precise airflow), or constant airflow (requires pressure sensor).
Input signal – Tap selections (3‑8 speeds), 0‑10V DC, 4‑20mA, PWM, or digital (Modbus RTU, BACnet MS/TP, or proprietary).
Ramp profiles – Customizable soft start duration (0.5‑10 seconds) and deceleration ramps.
Protection features – Over‑current, over‑temperature, under‑voltage, over‑voltage, rotor lock, phase loss (for three‑phase).
Diagnostic outputs – Tachometer output, alarm relay, or serial data stream reporting speed, power, and fault codes.
Operating temperature – Standard ECMs are rated to 50°C (122°F) ambient; custom units can be designed for 70°C (158°F) using higher‑grade insulation (Class H) and heat‑resistant lubricants.
Humidity and ingress – Specify IP rating and include drain holes, condensation protection, or conformal coating on the circuit board.
Certifications – UL 1004 (motors), UL 60730 (controls), CSA C22.2, CE, CCC, or specific regional approvals (e.g., KEMA, TÜV).
When a condenser fan motor is custom‑engineered for a specific HVAC unit, the performance improvements extend far beyond the motor itself.
The most immediate benefit is reduced electricity consumption. A custom ECM maintains high efficiency (65‑80%) across its entire speed range, while a PSC motor’s efficiency collapses at reduced speeds — except that a PSC cannot reduce speed at all. By modulating speed based on actual head pressure, the custom motor often runs at 40‑60% of full speed for large portions of the year. Field studies show that replacing a standard 1/4 HP PSC condenser fan motor with a custom ECM reduces fan energy use by 50‑70%, with payback periods under two years in many climates.
For refrigeration systems, stable head pressure is essential. Too low, and the expansion valve starves the evaporator; too high, and compressor power spikes. A custom ECM condenser fan motor can accept a signal directly from a pressure transducer mounted on the discharge line. The motor’s controller uses PID logic to maintain the target pressure within a narrow band (±5 psi) regardless of outdoor temperature. This precise control reduces compressor cycling, protects the refrigerant charge, and improves dehumidification in air conditioning mode.
Soft starting eliminates the mechanical shock of full‑speed engagement. Fan blades, bearings, and mounting brackets experience less fatigue. The absence of brushes removes a common failure point. Custom bearings and lubricants matched to the actual operating temperature range extend service intervals. Many custom ECM condenser fan motors achieve 90,000 hours of operation — roughly 15‑20 years of typical use — compared to 40,000‑50,000 hours for a standard PSC motor.
Noise complaints are a leading cause of customer dissatisfaction with outdoor HVAC equipment. A custom ECM can be programmed with a “night mode” that limits maximum speed during late hours, or a gradual ramp that avoids the abrupt roar of a PSC motor kicking to full speed. At low speeds, the motor may be nearly inaudible, making it ideal for residential neighborhoods, hospitals, hotels, and office parks.
Modern commercial buildings use BAS to optimize energy use. A custom ECM condenser fan motor with Modbus or BACnet communication can report real‑time data: speed, current, power, run hours, and fault status. The BAS can log this information, trend performance over time, and alert facility managers to developing issues — such as a motor drawing higher current at the same speed, indicating dirty coils or failing bearings.
While any HVAC system can benefit from a custom ECM, certain applications deliver the highest return on investment:
High‑SEER residential heat pumps and ACs – Custom motors help achieve SEER2 ratings above 18 while keeping outdoor noise low.
Supermarket refrigeration racks – Multiple condenser fans on a single rack can be individually controlled to maintain head pressure within tight tolerances, reducing compressor work and preventing low‑ambient issues.
Data center cooling – Chillers and dry coolers for IT environments require precise, reliable head pressure control 24/7/365. Custom ECMs also reduce vibration that could affect hard drives.
Industrial process chillers – Facilities with welding equipment, injection molding machines, or lasers produce significant heat; condenser fans must operate reliably in hot, dirty environments.
Cold storage and walk‑in freezers – Low‑ambient operation (down to -20°F) demands special lubricants, controller heaters, and startup algorithms. A standard motor will struggle or fail.
If you are an OEM, a large facility owner, or a distributor looking to offer custom solutions, the specification process typically follows these steps:
Define the operating envelope – Maximum and minimum ambient temperatures, typical load profile, required head pressure range, and duty cycle (continuous or intermittent).
Characterize the fan blade – Diameter, pitch, number of blades, and inertia. This determines the torque required to accelerate and run the fan.
Select control strategy – Will the motor be controlled by a pressure transducer, a thermistor, a building automation signal, or simple tap selection?
Provide mechanical dimensions – Mounting hole pattern, shaft diameter and length, overall length, and clearance requirements.
Discuss agency certifications – UL, CSA, CE, or others needed for your market.
Request prototypes – A reputable manufacturer will build and test sample motors in your actual condenser unit, measuring airflow, power draw, noise, and thermal performance.
The next generation of custom HVAC condenser fan motors will include embedded intelligence such as:
Bluetooth or NFC configuration – Technicians can adjust speed curves using a smartphone without opening the electrical panel.
Predictive algorithms – The motor learns typical current and speed patterns and flags anomalies that could indicate refrigerant leaks, coil fouling, or bearing wear.
Integrated sensors – Pressure or temperature transducers built directly into the motor housing, reducing external wiring and installation cost.
The custom HVAC condenser fan motor is not a luxury — it is an engineering necessity for anyone who demands optimal system performance, energy efficiency, and long‑term reliability. By moving away from generic, fixed‑speed PSC motors and embracing custom ECM solutions tailored to specific equipment, HVAC professionals can achieve energy savings of 50% or more, precise head pressure control, quieter operation, and extended service life. Whether you are designing a new product line or upgrading an existing facility, a custom approach to the condenser fan motor delivers measurable, lasting value.
