The heating, ventilation, and air conditioning industry is undergoing a fundamental shift. Rising energy costs, stricter environmental regulations, and growing demand for smart building integration have pushed traditional fan coil unit (FCU) motors to their limits. The solution increasingly lies in Electronically Commutated Motors (ECM). However, a standard off-the-shelf ECM often cannot meet the unique electrical, mechanical, or control requirements of specialized HVAC equipment. That is where a custom HVAC ECM motor becomes essential. Trustec specializes in designing and manufacturing ECM motors that are precisely engineered for each client’s FCU architecture, delivering unmatched efficiency, quieter operation, and seamless integration with modern building management systems.
Before exploring the benefits of customization, it is important to understand what sets ECM technology apart from traditional PSC (Permanent Split Capacitor) or shaded pole motors. An ECM is a brushless DC motor with integrated electronics that convert AC input to DC and then control the motor’s speed electronically. Unlike PSC motors, which run at fixed speeds determined by winding taps, ECMs offer continuously variable speed control. They maintain constant torque or constant airflow regardless of static pressure changes, and they consume up to 70% less energy at partial load conditions.
For HVAC applications, this translates directly into lower operating costs, improved comfort (no sudden on/off cycling), and reduced noise. However, the very sophistication of ECMs means they must be carefully matched to the fan coil unit’s impeller, duct static pressure, and control protocol. A generic ECM may waste energy if its torque curve is mismatched, or it may create electromagnetic interference if the drive electronics are not properly filtered. A custom HVAC ECM motor from Trustec eliminates these mismatches by integrating the motor’s electromagnetic design, power electronics, and control firmware into a unified solution tailored to your FCU.
Many HVAC manufacturers assume that any ECM will improve efficiency over a PSC motor. While that is generally true, the magnitude of improvement varies widely. A standard ECM designed for a generic 1/6 HP application might have a torque-speed curve that peaks at an RPM far from your FCU’s optimal operating point. The result is either insufficient airflow at high static pressure or excessive energy draw at low load. Additionally, mounting dimensions, shaft configurations, and connector types rarely match proprietary FCU housings, forcing assemblers to add brackets, adapters, or rewiring steps that increase labor costs and introduce failure points.
Furthermore, control interfaces differ across ECM suppliers. Some use 0-10V analog signals, others use PWM (Pulse Width Modulation), and high-end models offer digital communication via Modbus RTU, BACnet, or proprietary protocols. Without a custom approach, you may be forced to redesign your FCU’s control board or limit your thermostat options. Trustec’s custom HVAC ECM motor service solves these problems by giving you full authority over every parameter.
At Trustec, we do not simply modify an existing ECM design. We engineer a new motor from the ground up, starting with your FCU’s performance requirements. Our process involves several stages:
You provide us with the target airflow (CFM) at various static pressure points, the fan wheel’s moment of inertia, the available mounting envelope (diameter, length, bolt pattern), and the electrical supply (voltage, frequency, phase). We also document the intended control method—whether your FCU uses a simple on/off thermostat with speed taps, an analog 0-10V signal from a room controller, or digital commands from a building automation system.
Using finite element analysis (FEA), our engineers design the stator and rotor geometry—number of poles, winding turns, wire gauge, and magnet grade—to produce the precise torque-speed characteristic needed. For example, if your FCU operates in a high-static ducted configuration, we bias the motor for higher torque at lower speeds. For a ceiling cassette requiring ultra-quiet operation, we optimize for low cogging torque and smooth acceleration.
The ECM’s drive board is not generic. Trustec designs custom PCBs with microprocessor firmware that implements your desired control logic. Options include:
Fixed speed profiles – Two to four preset speeds selected via external switches or voltage signals.
Analog control – Linearly mapping 0-10V or 4-20mA to a speed or torque setpoint.
PWM control – Receiving a duty cycle signal (e.g., 0-100% at 1kHz).
Digital communication – Modbus RTU over RS-485, allowing remote monitoring of motor current, speed, temperature, and runtime hours.
Constant airflow regulation – The motor measures its own electrical parameters to estimate airflow and adjusts speed to maintain CFM despite filter clogging or duct changes.
We machine shafts, fabricate mounting flanges, and mold terminal housings to your exact drawings. Shaft diameters from 5mm to 15mm, lengths from 30mm to 200mm, with any combination of flats, grooves, or threaded ends. Mounting options include resilient rings, studs, C-frames, or custom die-cast brackets. Lead wires can be any length, color, and terminated with AMP, Molex, JST, or your proprietary connectors.
Depending on where your FCU will be installed, Trustec offers IP ratings from IP20 (indoor, dry) to IP54 (splash-proof). We use conformal coating on circuit boards for high-humidity environments (e.g., tropical hotels or indoor pools) and can specify sealed bearings with high-temperature grease for attic or plenum installations.
Trustec has delivered custom HVAC ECM motor solutions for a wide range of scenarios. Three examples illustrate our capabilities:
Case 1 – Hospital isolation room FCU
The client required a motor that could maintain precise positive or negative pressure differentials. We developed an ECM with embedded pressure sensor input and constant static pressure control. The motor automatically ramps up or down to keep room pressure within ±0.5 Pa, meeting strict healthcare standards. The custom design also included silver-ion coated shafts to inhibit bacterial growth.
Case 2 – Hotel ceiling cassette with night setback
A hospitality OEM needed a motor that could switch between daytime high airflow (quiet operation, ≤38 dB(A)) and nighttime ultra-low speed (≤28 dB(A)) for sleep mode. Trustec produced an ECM with a three-speed input but with infinitely variable digital potentiometer adjustment for the middle speed, allowing hotels to fine-tune noise levels without hardware changes.
Case 3 – Industrial high-static FCU

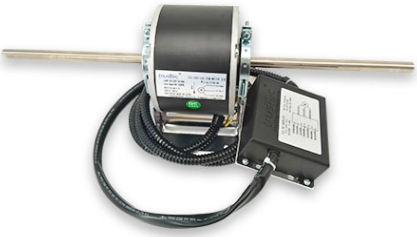

A factory in a dusty environment required a motor with IP54 rating and an external control box to keep electronics away from debris. We designed a split-system ECM: the motor body (IP54) mounted inside the FCU, while the drive electronics (IP20) were housed in a separate NEMA enclosure near the filter section. Communication between the two was handled by a 2-meter shielded cable.
Because ECMs incorporate sensitive electronics, rigorous testing is even more critical than with PSC motors. Trustec’s quality protocols for custom HVAC ECM motor orders include:
In-circuit testing of every PCB before assembly.
Hi-pot testing (1800V AC for 1 second between AC line and motor frame).
Insulation resistance (minimum 100 MΩ at 500V DC).
Rotor locking test – We apply 150% of rated torque for 5 seconds to ensure no demagnetization.
Thermal cycling – Motors are run at full load for 2 hours, then cooled to -10°C, repeating for 10 cycles to check for solder joint failures.
EMC testing – Conducted and radiated emissions per EN 55014-1 for CE compliance. We can also support FCC Part 15 testing for North America.
Each custom motor batch receives a test report signed by our QA manager. For high-volume OEM clients, Trustec provides a lot acceptance sampling plan (e.g., ANSI/ASQ Z1.4) with defined AQL levels.
Some HVAC brands hesitate to commission a custom HVAC ECM motor because they assume the engineering cost and minimum order quantities (MOQs) will be too high. However, the total cost of ownership often favors custom. Consider a company that assembles 15,000 FCUs annually. Using a generic ECM may require:
Additional mounting brackets ($0.90 each)
Wiring harness adapters ($0.60 each)
Firmware reconfiguration at assembly (2 minutes labor per unit, $0.80)
Higher warranty rate due to compatibility issues (estimated 1.5% vs. 0.4% for custom)
Total extra cost per unit: $2.30. Over 15,000 units: $34,500 per year. Spread over three years: over $100,000 in hidden costs. A custom ECM from Trustec eliminates all of these, with one-time engineering fees that are typically recovered within the first year of production.
A custom HVAC ECM motor from Trustec can be designed to meet the most demanding efficiency standards, including:
US Department of Energy (DOE) 2027 standards for fan coil units.
EU ErP Lot 10 (Commission Regulation 327/2011) – ECMs achieve IE4 or IE5 efficiency levels.
California Title 24 – Our motors support demand response and time-of-use scheduling via 0-10V dimming inputs.
We also ensure compliance with RoHS (Restriction of Hazardous Substances) and REACH, using lead-free solder and cadmium-free magnets. Our manufacturing facility follows ISO 14001 environmental management practices.
Partnering with Trustec for a custom HVAC ECM motor begins with a simple request. Prepare your FCU’s airflow requirements (CFM at low, medium, and high speeds), available motor envelope dimensions, electrical supply, and desired control interface. Send this information to our engineering team. Within two weeks, you will receive a preliminary design proposal, including estimated motor efficiency, torque-speed curve, mechanical drawings, and a prototype development timeline.
Typically, Trustec delivers engineering samples in 6–8 weeks. After your approval, we conduct pilot production (50–200 units) to validate assembly line integration. Finally, we ramp up to full production with your agreed monthly or quarterly volumes.
The era of one-size-fits-all fan coil unit motors is ending. Building owners demand lower energy bills, quieter operation, and smart building integration. Regulators demand higher efficiency. Your brand’s reputation depends on delivering these outcomes. A custom HVAC ECM motor from Trustec gives you the power to meet every demand—not as an afterthought, but as a core engineering advantage. We invite HVAC OEMs, contractors, and system integrators to contact Trustec and begin the conversation. Together, we will design an ECM that makes your FCU stand out in a crowded market.
