In the competitive landscape of heating, ventilation, and air conditioning, the fan coil unit (FCU) is a core component that directly affects system efficiency, noise levels, and longevity. However, not all FCUs are created equal. Off-the-shelf motors often fail to meet the specific dimensional, electrical, or performance needs of specialized HVAC equipment. That is where custom HVAC FCU motor OEM solutions become indispensable. Trustec has built its reputation on delivering tailor-made motor solutions that align perfectly with unique system designs, operational environments, and performance targets.
A standard fan coil unit motor might fit a general application, but HVAC manufacturers, large-scale contractors, and facility operators frequently encounter constraints that demand a custom approach. These constraints can include limited mounting space, non-standard shaft lengths, unusual voltage or frequency requirements, extreme ambient temperatures, or the need for specific insulation classes. Additionally, different markets have distinct regulatory standards—CE for Europe, UL for North America, CCC for China—and a one-size-fits-all motor seldom satisfies all.
When you partner with Trustec for custom HVAC FCU motor OEM, you move beyond compromise. You receive a motor engineered from the ground up to match your FCU’s airflow characteristics, power supply, duty cycle, and acoustic profile. The result is a harmonized system that operates reliably for years, reduces warranty claims, and enhances your brand’s reputation for quality.
Trustec’s OEM process begins with a detailed technical consultation. Our engineering team analyzes your FCU’s specifications: available space for the motor (diameter, stack length, mounting bracket positions), required torque-speed curve, start-up conditions (high static pressure or low inertia), and any special environmental factors such as dust, moisture, or chemical exposure.
Based on this analysis, we design a motor solution that can include:
Custom windings – Tailored to deliver optimal efficiency at your specific operating point (e.g., 115V/60Hz or 230V/50Hz with precise capacitance values).
Modified shaft configurations – Extended, shortened, stepped, or flat-spotted shafts to fit your fan wheel or blower assembly without adapters.
Special mounting patterns – Flanges, studs, or resilient rings that match your FCU housing exactly, eliminating alignment errors.
Thermal protection choices – Auto-reset or one-shot thermal fuses, PTC thermistors, or embedded temperature sensors for critical applications.
Connector and lead wire customization – Pre-stripped wires, polarized connectors, or sealed terminal boxes to streamline your assembly line.
All of this is delivered under a strict OEM agreement that protects your design ownership. Trustec never resells your custom motor configuration to other buyers.
A custom motor is only as good as the components that go into it. For every custom HVAC FCU motor OEM project, Trustec sources materials that meet or exceed industry standards. Our rotor cores use high-grade non-oriented silicon steel with low hysteresis loss. Magnet wire is copper with Class F (155°C) or Class H (180°C) insulation, depending on the thermal demands. Bearings are either shielded ball bearings with high-temperature grease or sintered bronze sleeve bearings for quieter, lower-cost applications.
Every custom motor batch undergoes a battery of tests before leaving our factory:
No-load and locked-rotor tests – To verify current draw and torque characteristics.
Dielectric withstand test – 1800V AC for 1 second to ensure insulation integrity.
Temperature rise test – Under simulated load in a controlled environment, ensuring operation stays within permitted winding temperature limits.
Vibration measurement – With accelerometers to confirm balance grade G 2.5 or better.
Sound pressure test – In a semi-anechoic chamber for applications requiring below 40 dB(A).
We document all results in a custom test report that accompanies each shipment. For high-volume OEM clients, we also offer statistical process control charts, allowing you to monitor consistency across production lots.
Over years of serving global HVAC clients, Trustec has developed expertise in solving specific custom motor challenges:
Scenario 1 – Low-profile ceiling cassette FCU

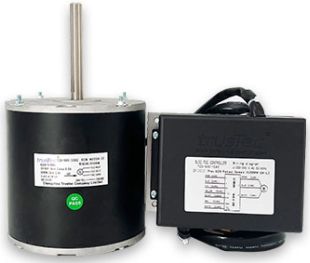

The client needed a motor with overall length under 100mm but with sufficient torque for a 4-way discharge cassette. Trustec designed a compact external-rotor motor with the electronics housed in a separate remote box, keeping the unit slim while delivering 0.6 Nm torque.
Scenario 2 – Hospital isolation room FCU
Requirements included antimicrobial shaft coating and completely sealed bearings to prevent particle shedding. We applied a silver-ion epoxy coating on the shaft and used double-sealed grease-packed ball bearings. The motors passed hospital-grade airborne particle testing.
Scenario 3 – High-altitude installation
At altitudes above 2,500 meters, cooling fan efficiency drops. Trustec adjusted the winding turns to reduce current density and upgraded the insulation to Class H to compensate for reduced convective cooling. The motors performed flawlessly at 3,200m elevation.
These examples illustrate that a truly custom HVAC FCU motor OEM partner does not simply modify an existing design but engineering a new solution from validated building blocks.
One often-overlooked aspect of OEM motor supply is manufacturability. A custom motor that is difficult to install on your assembly line defeats its purpose. Trustec works closely with your production engineers to align:
Lead wire exit positions – Left, right, or top exit to match your wiring harness routing.
Fastener types – Thread-forming screws, captive nuts, or pre-installed mounting studs.
Packaging – Custom trays that present motors in the orientation you need for robotic pick-and-place, or individual anti-static bags for manual assembly.
We also provide detailed assembly drawings and torque specifications for every mounting screw. For large-scale OEM partners, Trustec can station a field application engineer at your facility during the first production run to ensure seamless integration.
Many HVAC brands initially hesitate to invest in a custom motor, fearing higher unit costs or longer lead times. However, the total cost of ownership often favors custom solutions. An off-the-shelf motor may require added brackets, adapters, or wiring modifications at your assembly station—each adding labor and potential failure points. A custom motor bolts directly in place, connects with one plug, and runs exactly as specified. Additionally, warranty rates drop significantly when motors are thermally and mechanically matched to the FCU.
Trustec’s custom HVAC FCU motor OEM service offers competitive pricing for annual volumes starting from 1,000 units upward. With our lean manufacturing and vertical integration (we produce our own stators, shafts, and housings), we keep tooling costs reasonable and per-unit prices predictable.
As energy regulations evolve, many HVAC OEMs are transitioning from PSC to EC (electronically commutated) motors. Trustec can custom-build EC motors with your preferred control interface: 0-10V, PWM, or digital potentiometer. We also offer motors with integrated Modbus RTU for building management system integration. By future-proofing your FCU with a custom EC motor, you meet current efficiency mandates while preparing for stricter standards.
Partnering with Trustec for custom HVAC FCU motor OEM is a straightforward, collaborative process. Begin by sharing your FCU envelope constraints, electrical parameters (voltage, frequency, phases), target speed range, and any environmental ratings (IP rating, humidity, ambient temperature range). Our engineers will respond within five business days with a preliminary feasibility study and estimated tooling costs.
If the project moves forward, Trustec produces engineering samples (typically 5–10 units) for your in-house testing. After your approval, we schedule pilot production (50–100 units) to validate assembly line integration. Finally, we enter mass production with your agreed quality gates and delivery schedule.
The HVAC market rewards brands that offer differentiated performance, not generic boxes. By choosing Trustec as your custom HVAC FCU motor OEM partner, you gain the ability to design FCUs that stand out—quieter, more efficient, more reliable, and perfectly adapted to their intended environment. We treat your custom motor as the critical component it is, engineering it with the same care you put into the rest of your system. Contact Trustec today to discuss your custom motor requirements. Together, we will build a solution that moves air and moves your business forward.
