EC Fan Coil Unit Motor: Precision, Efficiency, and Smart Control for Modern HVAC Systems
When it comes to improving indoor air quality and thermal comfort in commercial buildings, hotels, hospitals, and residential complexes, the fan coil unit (FCU) remains one of the most widely used terminal devices. At the heart of every fan coil unit lies its motor—the component responsible for moving air across the coil to deliver heating or cooling. While traditional fan coil units have long relied on Permanent Split Capacitor (PSC) or shaded-pole motors, a superior solution has emerged: the EC fan coil unit motor.
Electronically Commutated (EC) motors are redefining what facility managers, HVAC contractors, and OEMs can expect from a fan coil unit. By combining the efficiency of brushless DC technology with the convenience of an AC input, EC motors offer variable speed control, silent operation, and substantial energy savings. This article explores why upgrading to an EC fan coil unit motor is one of the smartest decisions for any modern HVAC project.
An EC motor is essentially a synchronous permanent-magnet motor with integrated electronics. Unlike conventional AC induction motors, EC motors use an internal inverter to convert incoming AC power to DC, then drive the motor with precise electronic commutation. This allows the motor to operate at exactly the speed required by the system—ramping up for quick pull-down or ramping down for silent, energy-saving standby.
For fan coil applications, this means the motor can respond dynamically to thermostat commands, occupancy sensors, or building automation systems (BAS). Rather than simply turning on and off at full speed, an EC fan coil unit motor delivers infinitely adjustable airflow, matching the real-time heating or cooling load with remarkable accuracy.
To appreciate the value of an EC fan coil unit motor, it helps to compare it directly with the longstanding industry standard—the PSC motor. The differences are not minor; they represent a generational leap in technology.
1. Energy Efficiency Where It Matters Most
Fan coil units often run for thousands of hours per year, especially in hotels and office buildings. A typical PSC motor operates at around 30% to 45% efficiency, wasting a large portion of its energy as heat. In contrast, an EC fan coil unit motor routinely achieves 70% to 85% efficiency across most of its operating range. Some models even approach 90% efficiency at optimal speeds.
Field studies have shown that replacing a PSC motor with an EC motor in a fan coil unit can reduce fan energy consumption by 40% to 60%. For a building with hundreds of FCUs, this translates into thousands of dollars in annual electricity savings and a rapid return on investment.
2. Variable Speed = True Comfort
Traditional fan coil motors typically offer only three fixed speeds (low, medium, high) or simple on/off control. This creates temperature swings and noticeable changes in airflow noise. An EC fan coil unit motor, however, can provide continuous variable speed, often controllable via a 0-10V signal or PWM input. The result is steady, comfortable room temperatures without the draft or sudden blasts of air.
3. Whisper-Quiet Operation
Noise complaints are one of the most common issues with fan coil units in hospitality and healthcare environments. PSC motors produce audible electromagnetic hum and generate significant vibration. EC motors, by contrast, use sophisticated electronic commutation that virtually eliminates electrical noise. Additionally, because they often run at lower speeds for longer periods, the overall sound level is drastically reduced. Some EC fan coil unit motors are so quiet that they go unnoticed even in libraries or luxury hotel rooms.
4. Built-in Intelligence and Control
An EC fan coil unit motor is not just a motor—it is a smart device. The integrated electronics include features such as:
Soft-start and soft-stop to eliminate mechanical stress and current spikes.
Overload and over-temperature protection without external relays or thermal switches.
Tachometer output or speed feedback for precise closed-loop control.
Auto-adaptation to varying static pressures, maintaining constant airflow even as filters become dirty.
This built-in intelligence reduces the need for external VFDs (Variable Frequency Drives) or complex control boards, simplifying system design and improving reliability.
5. Extended Lifespan and Reduced Maintenance
Because EC motors generate far less heat than PSC motors, their internal bearings, windings, and electronics experience less thermal stress. The elimination of start and run capacitors—common failure points in PSC motors—further enhances durability. An EC fan coil unit motor can easily outlast two or three conventional motors, lowering the total cost of ownership and reducing disruptive service calls.
While any fan coil unit can benefit from EC technology, certain environments see especially strong returns:
Hotels and Resorts: Guests expect silent, individualized comfort. EC motors allow each room’s FCU to operate efficiently and quietly, improving guest satisfaction while reducing energy bills.
Hospitals and Clinics: Precise airflow control helps maintain pressurization and infection control requirements. Reduced maintenance also minimizes room downtime.
Office Buildings: With occupancy varying throughout the day, EC motors can ramp down during unoccupied hours and respond instantly when workers arrive.
High-End Residential: Luxury apartments and homes demand both comfort and low operating costs. EC fan coil unit motors deliver both.
Regulatory pressure is accelerating the transition away from inefficient AC motors. The EU’s ErP (Energy-related Products) Directive, US Department of Energy efficiency standards, and similar regulations worldwide are phasing out PSC motors in many HVAC applications. As a result, the global EC motor market is projected to continue its strong growth, with HVAC fan and blower applications leading the way.
For OEMs and specifiers, choosing an EC fan coil unit motor not only ensures regulatory compliance but also positions products as modern, efficient, and environmentally responsible.

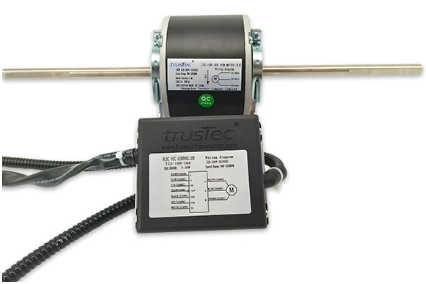

For those seeking a reliable source of high-performance EC fan coil unit motors, Trustec (www.trustecgroup.com) stands out as a dedicated specialist. With years of experience in AC, BLDC, and EC motor technology, Trustec has developed a comprehensive line of motors designed specifically for demanding HVAC applications—including fan coils, air handlers, condensers, and cooling towers.
Trustec’s EC motors are engineered using advanced sensorless vector field-oriented control (FOC), achieving efficiencies up to 85% while maintaining smooth torque output across the entire speed range. Each motor undergoes rigorous testing to meet international safety and quality standards, including UL (critical for North America), as well as CCC, CE, and UKCA certifications for global compliance.
Independent third-party validation confirms the durability of Trustec’s designs, with extended running tests showing consistent performance under varied load conditions. Whether you require a direct retrofit for existing fan coil units or a custom OEM solution, Trustec provides the engineering support and certified quality that professionals demand.
The EC fan coil unit motor is no longer a futuristic concept—it is a practical, proven technology that delivers immediate benefits. Lower energy bills, quieter operation, smarter control, and longer life make EC motors the logical choice for any new construction or retrofit project.
By partnering with a trusted manufacturer like Trustec, HVAC professionals can confidently specify and install EC motors that meet the highest standards of efficiency and reliability. As the industry continues to move away from outdated AC technology, those who adopt EC fan coil unit motors today will lead the market tomorrow.
