An ECM motor (Electronically Commutated Motor) represents one of the most significant advancements in HVAC technology over the past two decades. Unlike traditional PSC (Permanent Split Capacitor) motors that run at nearly constant speeds, ECM motors use a built‑in microprocessor and permanent magnet rotor to achieve variable speed operation with exceptional efficiency. From residential furnaces and air handlers to commercial fan coils and condenser units, ECM motors are rapidly becoming the standard for new equipment and a popular upgrade for existing systems. This comprehensive guide explains everything you need to know about ECM motors—how they work, why they save energy, how to troubleshoot them, and what to consider when selecting a replacement.
An ECM is a brushless DC motor that incorporates an electronic controller to manage the motor’s speed and torque. The term “electronically commutated” refers to the way the motor’s magnetic field is switched electronically rather than mechanically through brushes (as in older DC motors) or through capacitor‑driven windings (as in PSC motors). Inside an ECM, a microprocessor continuously monitors the motor’s position and adjusts the current to the stator windings, creating a rotating magnetic field that turns the permanent magnet rotor.
ECM motors are widely used in HVAC applications where precise airflow control, quiet operation, and high efficiency are desired. Common applications include:
Indoor blower motors in furnaces and air handlers
Condenser fan motors in high‑efficiency air conditioners and heat pumps
Fan coil unit motors in commercial buildings
Ventilation fans and ERV/HRV units
To fully appreciate ECM technology, it helps to understand how a traditional PSC motor works. A PSC motor runs at a speed determined by the frequency of the AC power and the number of poles in the motor. Its speed can only be changed by switching taps on the windings (e.g., low, medium, high). When static pressure increases—for example, from a dirty air filter—a PSC motor continues to spin at roughly the same RPM but delivers less airflow. The motor still draws nearly full power, wasting energy.
In contrast, an ECM constantly measures the load and adjusts its torque to maintain a target airflow (in constant‑CFM models) or a target torque (in constant‑torque models). If the filter becomes dirty, the ECM speeds up to keep the same CFM, ensuring consistent comfort. When the filter is clean, the ECM slows down, consuming less electricity. This ability to adapt to changing conditions is the key to both energy savings and superior comfort.
Not all ECM motors are the same. There are two primary types used in HVAC:
Constant torque ECMs are designed as direct replacements for PSC motors in many applications. They have a pre‑programmed set of torque levels (typically three to five) that can be selected via control leads. When the motor receives a call (e.g., for low speed), it delivers a fixed torque regardless of static pressure up to a certain point. These motors are simpler and less expensive than full variable‑speed ECMs, but they do not maintain exact CFM. Efficiency is typically 70–80%, compared to 60–70% for PSC. Constant torque ECMs are common in mid‑efficiency furnaces and replacement markets.
Constant airflow ECMs, also known as full variable‑speed motors, are the most advanced type. They are programmed with specific CFM targets (e.g., 1200 CFM for cooling, 800 CFM for heating). The motor continuously monitors static pressure and adjusts speed up or down to deliver the exact programmed airflow. This provides precise comfort, superior dehumidification (by allowing slower, continuous fan speeds), and the highest efficiency—often 85% or better. Constant airflow ECMs are found in high‑end furnaces, air handlers, and some commercial equipment.
The advantages of ECM motors over traditional PSC or shaded‑pole motors are substantial and well documented.
ECM motors consume 50–70% less electricity than PSC motors of equivalent size. In a typical residential air handler that runs 3,000–4,000 hours per year, replacing a PSC blower motor with an ECM can save 150–300 annually. For commercial buildings with hundreds of fan coil units, the cumulative savings can reach tens of thousands of dollars per year.
With an ECM, rooms stay comfortable regardless of filter condition or minor duct obstructions. No more weak airflow from vents when the filter is slightly dirty. Constant‑CFM models also automatically compensate for closed registers or dampers, protecting the system from over‑pressure.
ECM motors start and stop with soft ramps—no sudden “thump” when the blower turns on. At low speeds (common for continuous fan operation), they are nearly silent. The absence of capacitor hum and the reduction of vibration make ECMs significantly quieter than PSC motors.
In cooling mode, a variable‑speed ECM can run the blower at a slower speed while the compressor is running, allowing the evaporator coil to get colder and remove more moisture from the air. Some systems also offer a “dehumidify” mode that reduces blower speed further on demand. Lower indoor humidity means better comfort at higher thermostat settings, saving even more energy.
Because an ECM motor runs cooler and does not subject the blower or fan to sudden torque spikes, both the motor and the mechanical components (bearings, wheel, shaft) tend to last longer. Additionally, consistent airflow prevents the evaporator coil from freezing or the furnace from overheating, protecting the compressor and heat exchanger.
ECM motors are generally reliable, but they are more complex than PSC motors. When problems occur, they often involve the electronic module rather than the motor windings.
If an ECM fails to start, first verify that 24 VAC control signals are present. ECMs typically require specific control voltages (e.g., “G” for fan, “Y” for cooling, “W” for heating) plus a common (C) and either R (power) or a separate high‑voltage supply. Use a multimeter to confirm. Also check that the main high‑voltage supply (115 V or 230 V) is reaching the motor. Unlike PSC motors, ECMs do not use run capacitors, so skip that check. If power and control signals are correct, the module may have failed. Many ECM modules can be replaced separately from the motor windings.
This usually indicates a configuration problem. Constant‑torque ECMs have selectable speed taps; ensure they are connected to the correct control board terminals. Constant‑airflow ECMs often require setup using DIP switches or a digital programmer. The installer may have set the wrong CFM for the application. Also check the static pressure—a severely undersized duct system can cause even an ECM to reach its maximum torque limit, resulting in lower than programmed airflow.
Intermittent operation can be caused by loose low‑voltage connections, a failing thermostat, or a control board that is dropping the 24 V signal. Another possibility is overheating: if the motor is installed in a location with insufficient clearance, the module may overheat and thermally shut down. Check the motor housing temperature and improve airflow around the module.
Many ECMs have diagnostic LEDs on the module. A flashing pattern may indicate a specific fault (e.g., open thermistor, module failure, rotor locked). Consult the motor’s documentation. If you see no LED activity and power is present, the module is likely dead.
If airflow remains low even with a clean filter, the motor’s CFM setting may be too low, or the duct static pressure might exceed the motor’s capability (e.g., undersized return). Measure static pressure with a manometer. Also verify that the blower wheel is clean and not slipping on the shaft.
When an ECM motor fails, you have several options: replace with an exact OEM motor, use a universal ECM replacement, or downgrade to a PSC motor (not recommended due to efficiency loss and control compatibility issues).
The safest choice is to obtain the exact OEM motor specified for your equipment. The motor’s part number, programmed CFM tables, and mounting configuration will match perfectly. However, OEM motors are often expensive and may require a long lead time.
Several manufacturers offer universal ECM motors that can be programmed to replace a wide range of PSC and OEM ECM motors. These come with detailed setup instructions and a configuration tool (DIP switches or a push‑button interface). Universal ECMs are a cost‑effective and practical solution when an OEM motor is unavailable. When selecting a universal motor, ensure it has the correct frame size, shaft dimensions, horsepower range, and voltage. Confirm that the mounting brackets will align with your blower housing.
Converting a PSC‑equipped air handler or furnace to an ECM is possible but requires careful planning. The control board must be compatible with the ECM’s speed signals (usually 24 VAC). Some older boards cannot provide the correct signals for a constant‑airflow ECM, but they can often work with a constant‑torque ECM. You may also need to add a new control module or reprogram the thermostat. In many cases, the easiest retrofit is to use an aftermarket constant‑torque ECM designed as a drop‑in PSC replacement. Always consult the motor’s documentation and, if unsure, seek professional assistance.
ECM motors require less maintenance than PSC motors because there are no run capacitors to replace and no brushes to wear. However, some basic practices will extend their life.
Keep the air filter clean. Although ECMs adjust to filter loading, a severely clogged filter forces the motor to run at maximum speed continuously, increasing heat and wear.
Keep the blower compartment clean. Dust accumulation on the motor module can cause overheating.
Check for vibration. A worn blower wheel or loose mounting can cause vibrations that damage the electronic module over time.
Monitor for error codes. If your system has a communicating thermostat, it may report ECM faults. Pay attention to any LED blink codes on the motor module.
Ensure proper grounding. ECM modules are sensitive to electrical noise. A poor ground can cause erratic behavior.
As energy regulations become more stringent (e.g., the U.S. Department of Energy’s fan energy rating requirements), ECM motors are becoming mandatory in many new HVAC products. The technology continues to evolve. Recent innovations include:
ECM with integrated Bluetooth or Wi‑Fi: Allows technicians and homeowners to monitor motor performance and diagnose faults using a smartphone app.
Sensorless ECMs: Reduced component count for higher reliability and lower cost.
High‑temperature ECMs: Designed for extreme environments like commercial kitchen exhaust or industrial drying.
ECM for outdoor condenser fans: Offering soft start, reduced noise, and 40–60% less energy use than PSC fan motors.
At Trustec (www.trustecgroup.com), we understand that ECM motors represent the future of HVAC efficiency and comfort. Whether you are a contractor replacing a failed motor, a facility manager upgrading a building’s fan coil units, or a homeowner seeking quieter, more efficient operation, Trustec has the right ECM solution.

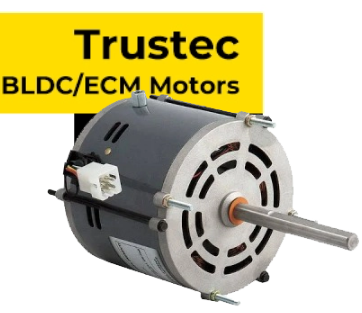

Trustec offers a complete line of constant‑torque and constant‑airflow ECM motors designed for easy installation and long‑term reliability. Our universal ECM replacement motors are pre‑programmed to match the performance of most PSC and OEM motors, saving you time and reducing callbacks. Every Trustec ECM motor features:
