A condenser fan motor is a critical component of any air conditioning or heat pump system. Whether you are a homeowner, facility manager, or HVAC technician, understanding how this motor works—and how to keep it running efficiently—can save significant time, money, and frustration. This comprehensive guide covers everything you need to know about condenser fan motors, from basic function to advanced selection criteria.
The condenser fan motor powers the fan that draws air across the condenser coil in an HVAC system. As refrigerant circulates through the system, it becomes heated after compression and must be cooled before returning to the evaporator. The condenser fan creates airflow over the condenser coil, transferring heat from the refrigerant to the outside air. This simple but essential process is what allows your air conditioner to maintain cool indoor temperatures even on the hottest days.
When the thermostat calls for cooling, the compressor contactor pulls in, simultaneously energizing both the compressor and the condenser fan motor. The fan runs continuously while the unit is in cooling mode, ensuring consistent heat dissipation from the condenser coil.
Condenser fan motors are subject to extreme conditions—outdoor weather, constant operation, and electrical loads. As a result, they rank as the third most frequently replaced component in HVAC systems, following capacitors and contactors.
Grinding, rattling, or buzzing sounds from the condenser unit are early warning signs. Grinding typically indicates worn bearings that require immediate replacement. Rattling often points to loose mounting screws or debris trapped in the fan blades. Buzzing, on the other hand, generally signals electrical issues or a failing capacitor. If you hear any of these sounds, do not ignore them—what starts as a minor noise can quickly escalate into a complete system failure.
When a condenser fan motor overheats, it may shut down intermittently. This usually occurs when the motor is working too hard due to insufficient airflow around the unit, dirty condenser coils, or improper voltage supply. An overheated motor reduces the entire system‘s cooling performance and can lead to compressor damage if left unaddressed.
If the condenser fan fails to spin, several factors could be at play. Before assuming the motor is dead, check for simple issues: debris blocking the blades, a seized motor shaft, or electrical problems. To test, manually attempt to turn the fan blade with the power off. If the blade does not spin freely, the motor bearings are likely worn out. If the blade spins freely but the motor does not run when powered on, the capacitor or the motor itself may have failed.
Frequent tripped circuit breakers or blown fuses often point to electrical problems within the condenser fan motor. Short circuits or ground faults can cause breakers to trip repeatedly. Always disconnect power before inspecting electrical components, and consider having a qualified technician test the motor‘s windings for continuity.
Excessive vertical movement or wobbling when the fan is running indicates bearing or housing failure. This condition puts additional stress on the motor and fan blade, leading to premature failure. If you observe movement when moving the blade up and down, one or more bearings or the motor housing has likely failed. Another critical failure point is the snap ring that holds the fan blade in the proper position on the motor shaft. If the snap ring is missing or improperly installed, the fan blade may rub against the orifice, causing noise and potential damage.
When the time comes to replace a failed condenser fan motor, proper selection is crucial. An incorrectly sized or specified motor will not only perform poorly but can also cause damage to other system components.
Before purchasing a replacement motor, record the specifications from the existing motor‘s nameplate. The critical parameters you must match include:
Horsepower (HP) — Never decrease horsepower from the original specification. Keeping the HP the same or increasing it by no more than one value is considered safe practice. For example, if the failed motor is 1/4 HP, a 1/3 HP motor would be an acceptable replacement. However, moving up to 1/2 HP or higher would likely cause sizing issues and unnecessary energy consumption.
Revolutions Per Minute (RPM) — RPM should match the original as closely as possible. A 1075 RPM motor can typically replace an 1100 RPM motor, as both are six-pole motors. However, an 1075 RPM motor cannot replace an 825 RPM motor because they have different pole counts and are incompatible.
Voltage — Check the nameplate voltage rating. Most residential condenser fan motors operate at 208–230 volts. Using the wrong voltage will cause immediate failure.
Amperage (Amps) — The full-load amperage of the replacement motor should be within ±5% of the original. If replacing a PSC motor with a more efficient ECM motor, lower amperage is acceptable.
Frame Size — Frame size refers to the motor‘s diameter and mounting configuration. Common frame sizes for condenser fan motors include 42-frame and 48-frame models. A 48-frame motor measures approximately 5–5/8 inches in diameter. Depth is equally important—even a small difference in motor height can alter fan blade positioning, affecting airflow and system performance.
Original Equipment Manufacturer (OEM) motors are specifically designed for your unit‘s model, including the blade, static pressure, and physical constraints. An OEM motor is always the best option for replacement. However, when an OEM motor is unavailable, high-quality aftermarket motors can serve as reliable alternatives provided all specifications are carefully matched. When using aftermarket motors, pay particular attention to frame size, depth, and blade positioning—these factors have the greatest impact on proper installation and long-term reliability.

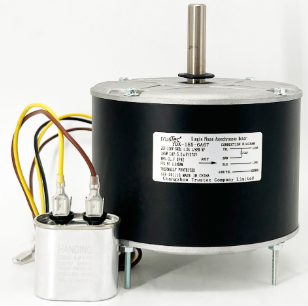

Most permanent split capacitor (PSC) condenser fan motors require a run capacitor. When replacing the motor, always install a new capacitor rated to the motor‘s specifications rather than reusing the old one. A failing capacitor can cause the motor to run noisily, overheat, or not run at all.
The type of condenser fan motor you choose has a direct impact on energy consumption and operating costs.
PSC motors have been the industry standard for over a century. They are simple, reliable, and affordable, with efficiencies typically ranging from 60–70% at full load. However, their efficiency drops significantly during partial-load conditions, sometimes falling to 30–40%. PSC motors remain common in existing equipment and will continue to be serviced for another 10–15 years, though they are rarely used in new OEM equipment following the 2019 Fan Energy Rating regulations.
ECMs represent the latest advancement in fan motor technology, using brushless DC designs with integrated microprocessors. These motors deliver 40% higher efficiency than traditional PSC models. Research shows PSC motor fans draw approximately 40% more power than ECM fans, and the median efficacy of ECM fans is 43% higher.
ECMs maintain high efficiency (80–85%) even at partial loads, unlike PSC motors that lose efficiency as demand decreases. In real-world terms, ECMs can cut annual HVAC energy costs by 120–180 per residential unit. Beyond energy savings, ECMs also provide quieter operation—typically around 20 dB compared to 40 dB for PSC motors—longer lifespan (10–15+ years versus 7–10 years), and the ability to maintain airflow even with dirty filters. However, ECMs have higher upfront costs and more complex electronics that may require specialized diagnostics.
The HVAC industry continues to move toward higher-efficiency technologies. At the 2026 AHR Expo in Las Vegas, major manufacturers showcased new EC fan systems and motor technologies featuring improved energy efficiency, ultra-quiet operation, and smart connectivity. These innovations point toward a future where condenser fan motors are not just passive components but active participants in system-wide energy optimization.
Preventive maintenance is far less expensive than emergency replacement. Most seasoned technicians recommend:
Clean the condenser coil and surrounding area regularly to maintain proper airflow
Listen for unusual noises during each cooling season and investigate promptly
Check for fan blade wobble or excessive movement at least once per year
Inspect electrical connections for signs of overheating or corrosion
Verify that the run capacitor is within its rated tolerance
