A fan coil unit motor is the driving force behind one of the most common and versatile HVAC terminal devices found in residential, commercial, and industrial buildings. Whether installed in hotel rooms, office spaces, apartment buildings, or hospitals, the fan coil unit (FCU) relies entirely on its motor to circulate air across the heating or cooling coil. Without a properly functioning motor, the entire unit becomes useless—occupants suffer from poor temperature control, reduced indoor air quality, and higher energy costs. This comprehensive guide explains everything you need to know about fan coil unit motors, from basic operating principles to advanced replacement strategies.

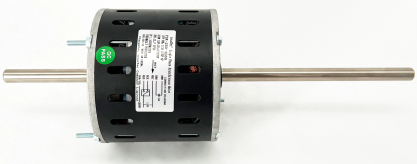

A fan coil unit motor is an electric motor that drives the fan or blower inside a fan coil unit. The fan coil unit itself consists of a finned tube heat exchanger (the coil) and a fan assembly. Conditioned water—chilled water for cooling or hot water for heating—flows through the coil while the motor-driven fan draws room air across the coil surface. The air exchanges heat with the water before being discharged back into the space.
Fan coil unit motors are typically fractional horsepower motors, ranging from 1/30 HP to 1 HP, depending on the size of the unit and required airflow. Most FCUs use permanently split capacitor (PSC) motors or, increasingly, electronically commutated motors (ECMs). The motor speed determines how much air moves across the coil, which directly affects the unit‘s heating or cooling capacity and noise level.
Unlike condenser fan motors that operate outdoors in harsh conditions, fan coil unit motors work indoors. However, they face other challenges: confined spaces, dusty air streams, and frequent speed changes (in multi‑speed applications). Proper motor selection and maintenance are therefore critical for occupant comfort and system longevity.
Understanding the differences between motor types helps when specifying replacements or upgrading existing equipment.
PSC motors have been the traditional choice for fan coil units for decades. They are simple, cost‑effective, and reliable. A run capacitor remains connected in series with the start winding at all times, improving power factor and torque characteristics. PSC motors are available in single‑speed, two‑speed, or three‑speed configurations. Speed changes are achieved by tap switching on the motor windings, which is why you often see multiple speed wires (e.g., high, medium, low). Efficiency for PSC motors typically ranges from 60% to 70%, which is acceptable for many applications but increasingly considered outdated under modern energy codes.
ECMs are becoming the standard for new fan coil units and high‑value retrofits. These motors use a built‑in microprocessor and a permanent magnet rotor to achieve efficiencies of 80% or higher. ECMs offer several advantages for fan coil applications:
Constant airflow control: The motor automatically adjusts torque to maintain a preset airflow despite filter loading or static pressure changes.
Multiple speed taps and 0–10 V control: ECMs can be easily integrated with building automation systems.
Ultra‑quiet operation: The lack of starting and running capacitors, combined with soft starting and stopping, makes ECMs noticeably quieter than PSC motors.
Lower energy consumption: In typical fan coil applications, an ECM consumes 40% to 60% less electricity than a PSC motor running at the same airflow.
The higher upfront cost of an ECM is typically recovered within one to three years through energy savings, especially in units that run continuously or for long hours.
Shaded pole motors are the simplest and least expensive type, but they are also the least efficient—often below 30%. They lack a capacitor and rely on auxiliary windings (shading coils) to produce a rotating magnetic field. Shaded pole motors are sometimes found in very small fan coil units (e.g., cassette type or under‑window units) where low cost and minimal torque requirements outweigh efficiency concerns. Most modern applications have moved away from shaded pole motors due to energy regulations.
Choosing a replacement motor requires careful attention to several specifications. An incorrect motor will lead to insufficient airflow, excessive noise, premature failure, or energy waste.
The replacement motor must provide enough power to turn the existing fan wheel or blower at the required speed. Do not decrease horsepower unless you are certain the original motor was oversized. However, increasing horsepower too much—more than one incremental step—can cause the motor to draw higher current than the unit‘s wiring and control board can safely handle. For example, replacing a 1/20 HP motor with a 1/15 HP is usually acceptable, but moving to a 1/8 HP would likely require evaluation of the entire electrical circuit.
Most fan coil units operate on single‑phase power: 115 V, 208‑230 V, or sometimes 277 V in commercial buildings. Always match the motor nameplate voltage to the unit‘s supply voltage. Using a 208‑230 V motor on a 115 V circuit will result in sluggish operation or no start; using a 115 V motor on a 230 V circuit will destroy the motor immediately.
Fan coil unit motors come in various frame sizes, typically designated by NEMA (National Electrical Manufacturers Association) or metric standards. The most common frame sizes for FCUs include 42‑frame (about 5‑5/8” diameter), 48‑frame, and smaller “skeleton” or “open” frames used in console units. Mounting style is equally important: some motors use resilient rings, others use rigid base mounts, and many smaller FCU motors are “all‑angle” or “sleeve‑bearing” motors designed to mount on rubber grommets. Measure the bolt circle diameter, shaft length, shaft diameter, and overall height before ordering.
Fan coil units often require multiple speeds—typically three speeds (low, medium, high). When replacing a multi‑speed PSC motor, you must obtain a motor with the same number of speed taps and matching speed ratings (in RPM). For ECM replacements, the motor must be programmed or configured to deliver the required airflow at each control signal. Some aftermarket ECMs are “universal” and can be set to match the original PSC performance using DIP switches or a setup tool.
The motor shaft must rotate in the correct direction to move air properly. Most fan coil units use forward‑curved centrifugal blowers, which are direction‑specific. Look for the rotation arrow on the original motor (CW or CCW as viewed from the shaft end). If you install a motor that rotates the wrong way, the unit will blow much less air and may overheat the motor.
Even the best motors can fail, but many problems are diagnosed and resolved without replacing the entire motor.
Check the control voltage first. Fan coil units are often controlled by a low‑voltage thermostat or an on‑board controller. If the call signal (e.g., 24 VAC) does not reach the fan relay or motor control, the motor will remain off. Next, inspect the run capacitor (for PSC motors). A weak or failed capacitor will prevent the motor from starting or cause it to hum and overheat. If the capacitor tests within tolerance, then test the motor windings for open or short circuits using a multimeter. Overload protection may also be tripped; allow the motor to cool and manually reset if necessary.
Squealing, rattling, or grinding noises from the fan coil unit point to different issues. A high‑pitched squeal often indicates a worn bearing or lack of lubrication (in motors with oil ports). Rattling may be a loose blower wheel set screw, a damaged wheel, or debris inside the housing. Grinding suggests bearing failure that requires immediate motor replacement to avoid seizing.
Reduced airflow despite the motor running could be caused by:
A dirty coil or filter (most common)
Running on a lower speed tap than intended
Incorrect rotation direction
A slipping belt (for belt‑drive FCUs, though most are direct drive)
Undersized motor that cannot overcome static pressure
Check the filter and coil first. If they are clean, then verify motor speed wiring and rotation.
Motors that run hot and fail after only a few years may be operating outside their design parameters. Causes include: voltage imbalance, incorrect capacitor, restricted air flow, or a motor that is too small for the blower load. Measure current draw and compare to the motor nameplate full‑load amps (FLA). If the measured current exceeds FLA, the motor is overloaded—check for binding bearings, a dirty blower wheel, or static pressure that is too high.
Preventive maintenance is the most cost‑effective way to extend motor life and maintain occupant comfort. A well‑maintained fan coil motor can last 10 to 15 years, while a neglected one may fail in less than five.
Clean or replace filters regularly: A clogged filter increases static pressure, forcing the motor to work harder and run hotter.
Keep the coil clean: Dust and debris on the coil reduce airflow and cause the motor to run longer cycles.
Listen during routine inspections: Catching bearing noise early allows for lubrication (if possible) or scheduled replacement before catastrophic failure.
Check capacitor values annually: Capacitors drift over time; replace them when they fall below 90% of their labeled microfarad rating.
Verify voltage at the motor terminals: Loose connections or voltage drop from undersized wiring can cause overheating.
Lubricate where specified: Many modern motors are sealed and “permanently lubricated,” but older motors may have oil ports requiring occasional lubrication with a few drops of electric motor oil.
For building owners and facility managers, upgrading older fan coil units from PSC to ECM motors can deliver significant benefits. In a typical office building where fan coil units run 2,500 to 3,000 hours per year, replacing a 1/8 HP PSC motor (consuming ~150 watts) with an ECM (~70 watts) saves roughly 200–250 kWh per unit annually. Multiply that by hundreds of units, and the savings become substantial.
Hotels are ideal candidates for ECM upgrades because guests demand quiet operation, and energy costs per room directly impact operating margins. Many utility companies also offer rebates for PSC‑to‑ECM retrofits. However, always verify compatibility with the existing control system—some older thermostats and relays may not work correctly with ECM signals.
