An outdoor fan motor is the workhorse of your air conditioning or heat pump system’s outdoor unit. Often called the condenser fan motor, it is responsible for pulling air through the condenser coil to remove heat from the refrigerant. Without a properly functioning outdoor fan motor, the entire HVAC system cannot reject heat to the outdoors, leading to high compressor pressures, reduced cooling capacity, and eventual system shutdown. This comprehensive guide covers everything you need to know about outdoor fan motors—from how they work and common failure modes to selection criteria and the latest efficiency trends.
The outdoor fan motor powers the fan blades mounted on top or on the side of the outdoor condenser unit. When the air conditioner or heat pump runs in cooling mode, the compressor sends high‑temperature, high‑pressure refrigerant gas to the condenser coil. As the outdoor fan motor spins the fan, it draws ambient air across the coil fins. This air absorbs heat from the refrigerant, causing the refrigerant to condense into a liquid and releasing heat outside. The fan motor runs whenever the compressor runs, and in many heat pumps, it also runs during defrost cycles or even in heating mode to control refrigerant pressure.

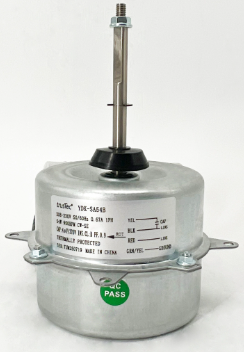

Outdoor fan motors are typically permanent split capacitor (PSC) motors, though high‑efficiency units increasingly use electronically commutated motors (ECMs). They are built to withstand extreme weather: rain, snow, direct sunlight, temperature swings from below freezing to over 120°F, and constant exposure to dust, pollen, and debris. Most residential outdoor fan motors range from 1/8 HP to 1/2 HP, with speeds of 825 RPM (for larger, slower‑moving fans) or 1075 RPM (for smaller, faster‑moving fans). Commercial units may use larger motors up to several horsepower.
While both are “fan motors,” outdoor and indoor versions have different design priorities. Indoor fan motors (blower motors) operate in a clean, temperature‑controlled environment and focus on overcoming duct static pressure. Outdoor fan motors operate in harsh conditions and prioritize weather resistance, airflow through a coil, and continuous duty. The outdoor motor’s shaft is often longer, its bearings are sealed against moisture, and its housing is typically open drip‑proof (ODP) or totally enclosed air‑over (TEAO) design. You cannot simply swap an indoor motor for an outdoor application—they are engineered differently.
Recognizing early warning signs of a failing outdoor fan motor can prevent compressor damage and avoid a complete system breakdown during a heatwave.
When the outdoor unit is running but the fan blade does not turn, several issues could be at play. First, check for power. If the compressor is running but the fan is stationary, the motor may have failed, or the run capacitor may be weak. A simple test: turn off power, manually spin the fan blade with a stick. If it spins freely and the motor starts when power is restored, the capacitor is likely bad. If the blade is hard to turn or does not spin at all, the motor bearings are seized or the motor windings are shorted.
Grinding, screeching, or rattling noises from the outdoor unit are never normal. A grinding sound typically indicates failed bearings. The motor may still run, but it will get hotter and eventually seize. A screeching noise often points to the fan blade rubbing against the coil guard or the motor mounting bracket coming loose. Rattling can be debris inside the unit—leaves, twigs, or even a small animal. Do not ignore these sounds; prompt investigation can save the motor.
If the outdoor fan motor runs for a while, then stops, and later restarts after cooling down, the internal thermal overload protector is tripping. This happens when the motor draws excessive current due to high ambient temperatures, a dirty condenser coil (reducing airflow and causing the motor to work harder), a failing capacitor, or low voltage. Overheating damages the motor windings permanently over time. Check the coil cleanliness and measure the amp draw compared to the nameplate’s full‑load amps (FLA).
A motor that runs slower than normal, or that takes a long time to reach full speed, usually has a capacitor problem or bearing drag. Slower rotation reduces airflow across the condenser coil, causing higher system pressures and reduced cooling capacity. Your energy bills will rise as the compressor strains against the heat.
This is a classic sign: the outdoor unit is humming (compressor running) but no air is moving through the top. If the fan blade is not spinning and you hear a humming sound from the motor, the motor is likely locked up or the capacitor is open. Shut the system down immediately—running the compressor without condenser fan airflow will cause the compressor to overheat and trigger its internal overload, and repeated episodes can kill the compressor.
When an outdoor fan motor fails, choosing the correct replacement is crucial. Installing the wrong motor leads to poor cooling, short motor life, and potentially voided equipment warranties.
The motor’s horsepower must be equal to or slightly greater than the original. Do not go lower. For example, if the original was 1/4 HP, a 1/3 HP motor is acceptable; but going to 1/2 HP may overspeed the fan and cause excessive noise or motor current draw. RPM is critical: a 1075 RPM motor replaces an 1100 RPM motor (both are 6‑pole), but a 1075 RPM motor cannot replace an 825 RPM motor (8‑pole) because the fan blade is designed for a slower speed. Using a higher‑speed motor with a blade intended for slower speeds will overload the motor and reduce airflow.
Residential outdoor fan motors are almost always single‑phase, 208‑230 VAC or 115 VAC. Check the nameplate voltage. A 115 V motor on a 230 V circuit will burn instantly; a 230 V motor on 115 V will run slowly and overheat. Some units use 460 V or 575 V for commercial systems—verify before ordering.
Outdoor fan motors use specific frame sizes, most commonly 48‑frame (approximately 5‑5/8” diameter) or 42‑frame (smaller). However, the physical dimensions that matter most are the motor height (from the mounting base to the top) and the shaft length and diameter. The shaft must extend far enough to mount the fan blade at the correct height within the fan guard. Many OEM motors have a stepped shaft or a flat spot for the blade setscrew. Measure carefully.
The fan blade must spin in the correct direction to pull air upward through the condenser coil. As viewed from the top, most condenser fans rotate clockwise (CW) to pull air up and out. However, some units rotate counter‑clockwise (CCW) depending on blade design. Look at the original motor’s rotation arrow, or check the blade pitch. Also note that some replacement motors are reversible by swapping leads; others are fixed.
Most outdoor fan motors require a run capacitor with a specific microfarad (µF) rating and voltage (typically 370 V or 440 V). Always replace the capacitor when replacing the motor—capacitors degrade over time, and a weak capacitor will shorten the life of a new motor. Do not reuse the old capacitor.
Traditional PSC outdoor fan motors have efficiencies around 60–70%. In recent years, manufacturers have introduced ECMs for outdoor applications. An ECM condenser fan motor can cut fan energy consumption by 40–60% in cooling mode and even more in heat pump heating mode. ECMs also allow for quieter operation (soft start, soft stop) and can be controlled to maintain optimal head pressure. However, retrofitting an ECM into an existing unit requires careful matching of control signals—not all systems are compatible. For new equipment, ECM outdoor fan motors are becoming standard on high‑SEER units.
You can significantly extend the life of your outdoor fan motor with simple, regular maintenance.
Keep the condenser coil clean. A dirty coil reduces airflow, making the motor work harder and run hotter. Use a garden hose or coil cleaner annually—or more often if the unit is near a dryer vent, dusty road, or cottonwood trees.
Clear debris around the unit. Leaves, grass, and trash can be drawn into the fan grille, blocking the fan blade or damaging the motor. Maintain at least 12 inches of clearance around the unit.
Check the fan blade for damage. A bent or cracked blade becomes unbalanced, causing vibration that destroys bearings. If the blade wobbles when spinning, replace it.
Listen for noise during each cooling season. A change in sound often precedes failure. Investigate promptly.
Monitor the capacitor. Have a technician check the capacitor’s µF reading every two years. Replacing a drifting capacitor is cheap insurance against motor failure.
Lubricate if applicable. Some older outdoor fan motors have oil ports. Use a few drops of electric motor oil annually. Most modern motors are sealed and lubricated for life.
Symptom | Likely Cause | Immediate Action |
|---|---|---|
Fan doesn’t spin, compressor runs | Bad capacitor or seized motor | Test capacitor; if good, replace motor |
Fan spins slowly | Weak capacitor or low voltage | Replace capacitor; check supply voltage |
Grinding noise | Worn bearings | Replace motor immediately |
Motor runs hot, shuts off | Dirty coil, high amps, or failing capacitor | Clean coil; test amp draw |
Vibration | Unbalanced or bent blade | Replace blade; check hub setscrew |
