The global push for energy efficiency and intelligent HVAC systems has placed electronically commutated (EC) motor technology at the forefront of modern refrigeration and air conditioning design. Among the most critical components in any outdoor condensing unit is the condenser fan motor—a small but essential part that directly impacts system efficiency, noise levels, and reliability. As a dedicated EC condenser fan motor factory, Trustec combines advanced manufacturing capabilities, rigorous quality control, and deep engineering expertise to deliver motors that meet the highest international standards.
In this article, we explore what makes EC technology superior for condenser fan applications, why choosing the right factory partner matters, and how Trustec has established itself as a trusted supplier for HVAC manufacturers, wholesalers, and contractors worldwide.
The condenser fan motor is responsible for drawing ambient air across the condenser coil, rejecting heat absorbed from the indoor environment. In air conditioners, heat pumps, refrigeration units, and chillers, this process is vital for maintaining proper system pressures and temperatures. If the condenser fan motor fails or operates inefficiently, the entire system suffers—higher discharge pressures, reduced cooling capacity, increased compressor wear, and elevated energy consumption.
Traditionally, condenser fans have been driven by shaded-pole or permanent split capacitor (PSC) AC motors. While these motors are simple and low-cost, they come with significant drawbacks: low efficiency (typically 30-50%), poor speed control, high heat generation, and limited operational flexibility. In contrast, EC motors bring a new level of performance to condenser fan applications.
EC motors integrate a permanent magnet synchronous motor with a built-in digital controller, converting AC input to DC and achieving electronic commutation. This design eliminates brushes and reduces mechanical wear while delivering efficiency levels above 85-90%. For condenser fans, which often run continuously for hours or days at a time, this efficiency difference translates into substantial energy savings over the motor’s lifetime.
Variable speed control for optimized head pressure. One of the most valuable features of EC condenser fan motors is their ability to vary speed based on real-time system demands. By using a 0–10V signal, PWM, or even onboard sensor inputs, an EC motor can adjust fan speed to maintain optimal condensing pressure across varying outdoor temperatures. During cooler weather, the fan slows down or even stops, saving energy and reducing noise. During hot days, the fan ramps up to provide maximum heat rejection. This dynamic control not only cuts electricity use but also improves compressor lifespan and system stability.
Low noise operation. Because EC motors generate less electromagnetic vibration and heat, they operate much more quietly than AC motors. For residential and light commercial applications where outdoor units are placed near windows or property lines, this acoustic advantage is a major selling point.
High reliability in harsh outdoor environments. Condenser fan motors face tough conditions: direct sunlight, rain, snow, dust, and wide temperature swings. EC motors with sealed electronics, corrosion-resistant coatings, and IP-rated enclosures can withstand these challenges better than traditional AC motors. The absence of starting capacitors (or the need for run capacitors) further reduces failure points.
Reduced maintenance and longer life. With no brushes to replace, no centrifugal switches to fail, and lower operating temperatures, EC motors typically outlast AC motors by thousands of hours. For service contractors and facility managers, that means fewer callbacks and lower total cost of ownership.
The global EC fan motor market is expanding rapidly, driven by tightening energy regulations and growing awareness of lifecycle costs. In the European Union, the Ecodesign Regulation (EU 2024/1834) effective from 2025 imposes stricter efficiency and acoustic limits for fans driven by motors between 125 W and 500 kW. In North America, Department of Energy (DOE) standards continue to raise minimum efficiency requirements for small electric motors. OEMs and replacement motor brands are shifting their production to EC technology to stay compliant and competitive.
For wholesale distributors and HVAC manufacturers, securing a reliable EC condenser fan motor factory has become a strategic priority. Factors such as production capacity, quality consistency, certification scope, and technical support differentiate leading factories from commodity suppliers.
Founded in 2011, Changzhou Trustec Company Limited has grown into a recognized manufacturer of high-efficiency HVAC/R fan motors and blower fans. With nearly two decades of experience, Trustec specializes in AC, BLDC, and EC motor technologies, serving customers across Europe, North America, the Middle East, and Southeast Asia. As an EC condenser fan motor factory, Trustec offers distinct advantages that make it a preferred partner.

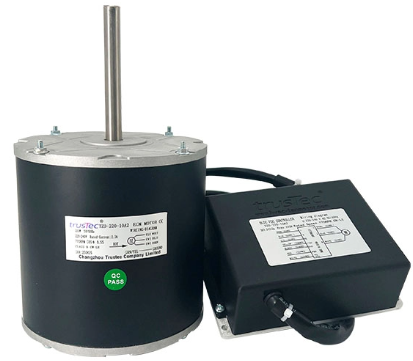

Trustec’s EC condenser fan motors typically achieve 85% efficiency or higher. They accept a wide input voltage range—AC 110V or 220V, 50/60Hz, as well as DC 24V, 48V, or 310V—making them suitable for diverse global applications. Speed control options include 0–10VDC, PWM, multi-speed, or single-speed configurations, allowing integration with simple thermostats or advanced building management systems.
A standout feature of Trustec’s EC technology is the use of sensorless vector field-oriented control (FOC) . By eliminating Hall sensors, this design reduces component count, lowers manufacturing cost, improves reliability, and delivers smoother torque output across the entire speed range. The result is a condenser fan motor that runs quieter, vibrates less, and maintains stable operation even at low speeds—ideal for maximizing energy savings during mild weather.
As a factory rather than a trading company, Trustec controls every stage of production: winding, assembly, electronic controller integration, testing, and packaging. The company operates automated production lines and uses real-time quality monitoring systems. Every EC motor undergoes stringent performance testing, including insulation resistance, dielectric strength, current draw, speed accuracy, vibration level, and noise measurement. Trustec holds CCC, RoHS, SABER, CE, and UKCA certifications, with UL approval available for a full range of condenser and blower motors.
One of the key benefits of working directly with an EC condenser fan motor factory is the ability to customize. Trustec offers design modifications for shaft length, mounting bracket type, lead wire length and termination, connector types, speed control profiles, and even specific housing colors. Output power ranges from 8W to 5kW, covering everything from small residential condensing units (e.g., 250W to 500W) to larger commercial refrigeration systems. Trustec’s engineering team works closely with customers to match motor performance curves to specific fan blade and coil combinations.
Trustec exports 100% of its EC motor production, with well-established shipping routes to major ports worldwide. The factory maintains flexible production scheduling to accommodate both large-volume OEM orders and smaller batch deliveries for distributors. A dedicated customer service team provides technical documentation, sample testing, and after-sales support—essential for customers integrating new motor models into their product lines.
Trustec’s EC condenser fan motors are designed for a wide range of outdoor and indoor condensing equipment:
Residential and commercial air conditioner outdoor units – Direct replacement or new equipment integration.
Heat pump outdoor units – Enabling variable-speed heat rejection for improved seasonal efficiency.
Refrigeration condensing units – For walk-in coolers, freezers, and supermarket display cases.
Chiller plants – For dry coolers and fluid coolers requiring precise fan control.
Packaged rooftop units (RTUs) – Retrofit of PSC motors for energy savings and compliance.
In each application, the shift to EC technology reduces energy consumption by 50–80% compared to equivalent AC motors, while lowering noise and extending maintenance intervals.
When sourcing EC motors for condenser fans, buyers must evaluate not only the motor’s specifications but also the factory’s long-term reliability, technical competence, and supply chain stability. Trustec delivers on all fronts:
Proven experience – Over a decade of dedicated EC motor development.
High-efficiency technology – Sensorless FOC for better performance at lower cost.
Full certification suite – CE, UKCA, RoHS, SABER, CCC, and UL options.
Flexible customization – Tailored to OEM drawings or replacement market needs.
Global shipping – Reliable delivery to Europe, Americas, Middle East, and Asia.
As HVAC systems become smarter and energy codes tighten, the role of EC condenser fan motors will continue to expand. Variable-speed outdoor fans enable advanced features such as demand-based ventilation, remote diagnostics, and grid-interactive load management. For manufacturers and contractors who want to stay ahead, partnering with a capable EC condenser fan motor factory like Trustec is a strategic investment.
Whether you are designing a new condensing unit or looking to upgrade existing equipment, Trustec’s EC motor solutions offer the efficiency, durability, and performance needed to meet today’s challenges and tomorrow’s standards. Contact Trustec to discuss your application requirements and discover how their engineering team can deliver the ideal EC condenser fan motor for your project.
