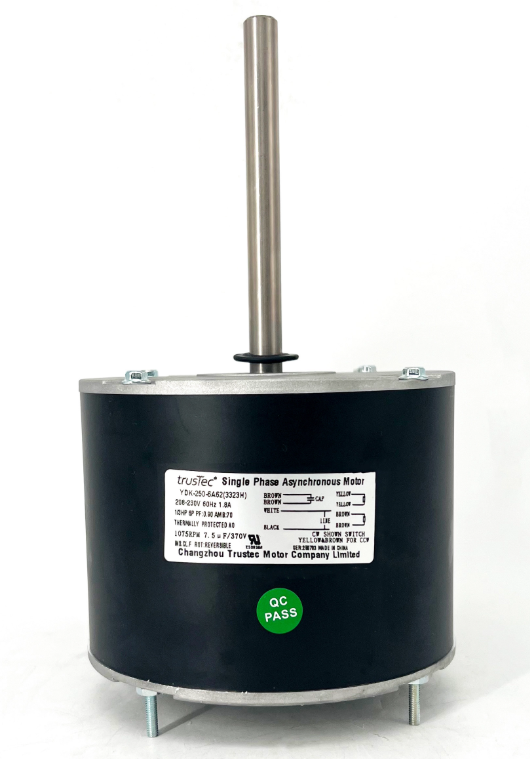

When a condenser fan motor needs to push air through a dense micro-channel coil, overcome long duct runs, or operate reliably in extreme ambient temperatures, standard horsepower ratings often fall short. The solution is the Wholesale 1/3 HP Condenser Fan Motor—a powerful, high-torque workhorse designed for the most demanding cooling applications.
At Trustec, we recognize that the 1/3 horsepower category represents a critical threshold in HVAC engineering. Below this level, motors are suited for standard residential duty. At or above 1/3 HP, you enter commercial-grade territory: higher static pressure capability, enhanced thermal protection, and the durability required for 24/7/365 operation. For wholesalers and large-scale contractors, stocking this motor in bulk ensures you can serve the commercial market profitably.
Why 1/3 HP? The Engineering Case for Higher Torque
The jump from 1/4 HP to 1/3 HP is not merely incremental—it is transformational. A Wholesale 1/3 HP Condenser Fan Motor typically delivers 30-40% more starting torque than its 1/4 HP counterpart while drawing only marginally more running amperage. This extra torque is essential for several demanding scenarios:
High-static pressure applications: Condensers with undersized louvers, restrictive grilles, or long discharge ducts.
Micro-channel condenser coils: Dense aluminum coils that require higher face velocity for proper heat transfer.
Low-ambient operation: Systems with fan cycle controls or winter operation (heat pumps, refrigeration) where the motor must start against ice or snow accumulation.
Oversized fan blades: Condensers using 26- to 30-inch diameter blades that require higher torque to accelerate.
From a system design perspective, a 1/3 HP motor at 1075 RPM typically moves 3,000 to 4,200 CFM of air—sufficient for 5 to 7.5-ton condensers, light commercial package units, and older rooftop systems.
Key Technical Specifications for Wholesale Procurement
When sourcing a Wholesale 1/3 HP Condenser Fan Motor from Trustec, several critical parameters must be verified to ensure drop-in compatibility and long service life:
Speed (RPM): Most 1/3 HP condenser motors are available in three speed ranges:
1075 RPM (most common for residential and light commercial)
825 RPM (high-torque, low-noise commercial applications)
1625 RPM (specialty applications, less common)
Frame Size and Mounting: The 1/3 HP class typically uses larger frames than residential motors:
48Y or 48YZ (common for residential-sized footprints with higher stack height)
56 Frame (standard for true commercial duty, with rigid base or resilient ring mounting)
Shaft diameter: Usually 1/2 inch or 5/8 inch, with shaft lengths from 5 to 8 inches
Rotation: Fully reversible rotation (CW/CCW) is essential. Commercial technicians expect the ability to reverse rotation by swapping leads without returning to the supply house.
Electrical Specifications:
Voltage: 208-230V single phase (standard for North American commercial HVAC)
Dual-voltage (115/230V) options exist but are less common
Hertz: 60 Hz
Capacitor: Typically requires a 10 μF, 12.5 μF, or 15 μF run capacitor. Some designs use a start capacitor + relay for high-torque applications.
Thermal Protection: Automatic reset thermal overloads are mandatory, but commercial-grade motors often feature manual reset options for critical refrigeration applications where automatic restart could be dangerous.
Insulation Class: Class F (155°C) is the minimum for reliable 1/3 HP commercial motors. Trustec's wholesale motors feature Class H (180°C) insulation with sealed windings to resist moisture and contaminants.
Amperage Draw: A properly specified 1/3 HP motor at 230V should draw between 2.8 and 3.8 amps under full load. Higher amperage indicates binding or incorrect voltage.
Service Factor (SF): Commercial motors should have a Service Factor of 1.15 or higher, allowing intermittent overload operation without damage.
Common Applications: Where the 1/3 HP Motor is Required
The Wholesale 1/3 HP Condenser Fan Motor is the standard replacement for thousands of commercial and high-end residential systems:
Carrier commercial condensing units: 38AU, 38AH, 38APS series (5-10 ton). OEM motor numbers HC42GE233, HC42GE238.
Trane commercial condensers: 4TCC, 4TTA, and RAUC series. OEM motor numbers MOT19247, MOT19838.
Lennox commercial package units: LGA, LGC, LGH series (6-10 ton rooftop units).
York Sunline package units: D4NA, D5NA, ZF, ZJ, ZR series (6-12.5 ton).
Daikin / Goodman commercial: DSXC, DDC, DCP series commercial condensers.
Mitsubishi City-Multi outdoor units: Some larger VRF condenser sections use 1/3 HP fan motors.
Refrigeration condensers: Heatcraft, Bohn, Larkin outdoor refrigeration units for walk-in coolers and freezers (2-5 HP compressor systems).
By stocking Trustec's wholesale 1/3 HP motors, you cover a significant portion of the commercial packaged rooftop market and large-scale refrigeration sector—segments with far less competition than residential replacements.
The Wholesale Economics: Higher Investment, Higher Returns
The Wholesale 1/3 HP Condenser Fan Motor commands higher pricing than lower horsepower options, but it also delivers superior margins and lower competition. Many distributors avoid stocking 1/3 HP motors due to higher upfront costs, creating an opportunity for Trustec partners.
Sample wholesale margin analysis:
Typical retail price for 1/3 HP commercial condenser fan motor: 150−220
Trustec wholesale price (20+ units): 95−125
Gross margin per unit: 35-45%
For a distributor selling 200 units annually, that represents 15,000to25,000 in gross profit from a single commercial SKU. Add in the higher-margin accessory sales (commercial-grade capacitors, contactors, fan blades), and the ROI becomes compelling.
Additional wholesale benefits:
Lower competition: Fewer suppliers stock commercial 1/3 HP motors compared to residential 1/6 HP.
Higher customer retention: Commercial customers value reliability and will return to a supplier who consistently has the right motor.
Volume discounts: Trustec offers aggressive tiered pricing at 10, 25, 50, and 100+ units.
Installation Excellence: The Trustec Advantage for Commercial Motors
Commercial HVAC technicians face unique challenges when replacing 1/3 HP condenser fan motors. These motors are heavier (typically 18-25 pounds), generate significant vibration, and must withstand harsh rooftop environments. Trustec's Wholesale 1/3 HP Condenser Fan Motor is engineered for these conditions:
Heavy-gauge rolled steel frame: Resists bending, corrosion, and vibration fatigue.
Precision-balanced rotor with dynamic balancing: Vibration held below 0.10 inches per second—critical for rooftop units where vibration transfers to building structures.
Double-sealed, oversized ball bearings: Rated for 75,000 hours (8.5+ years of continuous operation) with high-temperature grease that does not separate at 180°F+ operating temperatures.
Moisture-resistant sealed windings: Prevents humidity ingress in outdoor rooftop environments.
Heavy-duty terminal box with strain relief: Accepts up to 12-gauge wire and provides secure connections even with vibration.
Stainless steel shaft with dual flats and keyway option: Prevents fan blade slippage under high torque.
High-temperature lead wires: Silicone-insulated wiring rated for 200°C continuous operation.
A commercial technician using a Trustec 1/3 HP motor can expect the replacement to outlast the original OEM motor by 30-50% due to superior bearing and insulation specifications.
Energy Efficiency in Commercial Applications
Commercial HVAC systems run longer hours than residential units—often 3,000 to 5,000 hours annually. Small efficiency improvements in fan motors create significant energy savings for building owners. Trustec's modern 1/3 HP PSC motors achieve 70-75% efficiency, compared to 55-60% for older shaded pole or inefficient PSC designs.
Energy savings calculation for a commercial rooftop unit:
Old motor power consumption: 3.8A × 230V = 874 watts
New Trustec motor: 3.0A × 230V = 690 watts
Wattage reduction: 184 watts (21% reduction)
Annual operating hours (commercial cooling): 3,500 hours
Energy saved per year: 644 kWh
At commercial 0.12/kWh:∗∗77 annual savings per unit**
For a building with 20 rooftop units, that is $1,540 per year in electricity savings—a compelling upgrade story for facility managers.
Supply Chain Reliability: Commercial Inventory from Trustec
The commercial HVAC market demands supply chain reliability. When a supermarket's walk-in cooler fan motor fails, product loss begins immediately. Trustec maintains a dedicated inventory of Wholesale 1/3 HP Condenser Fan Motors across multiple regional distribution centers with rapid replenishment systems.
Trustec wholesale commercial benefits:
Emergency overnight shipping available for critical refrigeration applications
Master cartons of 4 or 6 units for efficient commercial warehouse storage
Full cross-reference guide covering Carrier, Trane, Lennox, York, Heatcraft, and Bohn OEM numbers
Dedicated commercial account support for wholesale partners
Conclusion: Dominate the Commercial Motor Market with Trustec
The Wholesale 1/3 HP Condenser Fan Motor is not a high-volume residential commodity—it is a strategic commercial SKU that delivers superior margins, lower competition, and essential coverage for the commercial HVAC and refrigeration markets.
At Trustec, we combine commercial-grade engineering, premium materials, and wholesale pricing to help you capture this profitable segment. Every motor we ship meets or exceeds OEM specifications for torque, thermal endurance, and service factor.
While other distributors fight over low-margin 1/6 HP residential motors, you can build a profitable commercial inventory with Trustec. Contact us today to set up your wholesale account, request commercial pricing tiers, and secure your 1/3 HP inventory for the next commercial cooling season.
