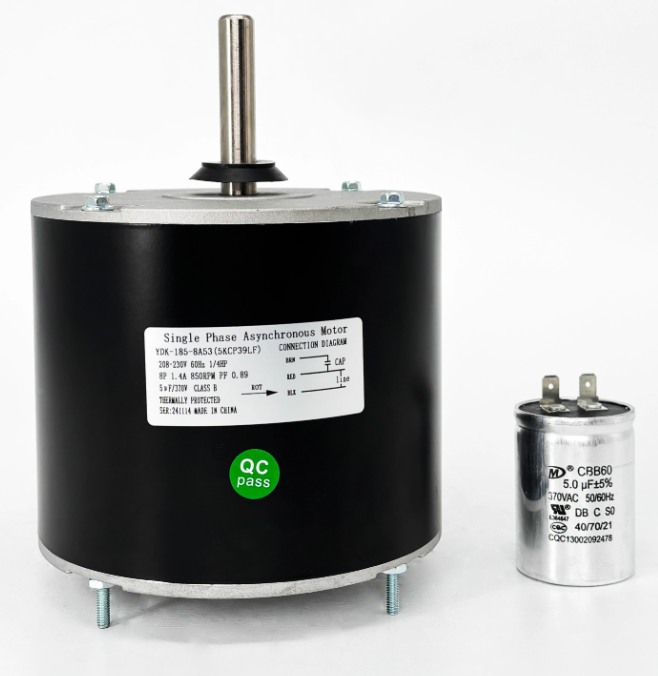

When a condenser fan motor fails on a 3.5 to 5-ton residential unit or a small commercial package system, the replacement needs to deliver more than just rotation. It needs torque. It needs thermal endurance. And it needs to fit perfectly without modification. That is exactly what a Wholesale 1/4 HP Condenser Fan Motor provides.
At Trustec, we understand that the 1/4 horsepower specification occupies a unique position in the HVAC replacement market. It is powerful enough for demanding commercial applications yet remains a direct fit for many residential condensers, particularly those with larger fan blades or restrictive coil designs. For wholesalers and large service fleets, stocking this motor in bulk ensures that when a mid-range system fails, you have the right solution ready to deploy.
Why 1/4 HP is the Bridge Between Residential and Commercial
The HVAC market often falls into two categories: light-duty residential (1/6 HP) and heavy-duty commercial (1/2 HP and above). However, the Wholesale 1/4 HP Condenser Fan Motor serves the critical middle ground. This power class is engineered for systems that require higher static pressure capability or larger-diameter fan blades—typically 22 to 26 inches—while still operating efficiently on standard 208-230V single-phase power.
Common scenarios where 1/4 HP is the correct specification include:
4 and 5-ton residential condensers (especially high-SEER units with dense micro-channel coils).
Small commercial package units (3 to 6-ton rooftop units from brands like Carrier, Trane, and Lennox).
Heat pump condensers operating in colder climates (where higher torque is needed to start against ice buildup).
Replacement for aging 1/3 HP motors when OEM specifications allow downrating.
From an engineering perspective, a 1/4 HP motor at 1075 RPM typically delivers 2,500 to 3,500 CFM of airflow—sufficient to reject heat from a 48,000 to 60,000 BTU compressor. This makes it the go-to choice for the vast majority of larger residential systems installed between 1995 and 2020.
Key Technical Specifications for Wholesale Procurement
When you source a Wholesale 1/4 HP Condenser Fan Motor from Trustec, several technical parameters must align to ensure drop-in compatibility and long-term reliability. Here is what experienced purchasing agents verify:
Speed (RPM): Most 1/4 HP condenser motors are designed for 1075 RPM or 825 RPM. The 1075 RPM variant is far more common for residential and light commercial condensers. Always verify the OEM specification before ordering.
Frame Size and Mounting: The standard frame for 1/4 HP condenser fan motors is typically 48Y or 48YZ. However, some commercial units require a 56 frame. Key dimensions include:
Shaft diameter: Often 1/2 inch, but some heavy-duty commercial motors use 5/8 inch
Shaft length: 5 to 6 inches for residential; up to 8 inches for commercial applications
Mounting: Resilient ring (standard for 48 frame) or rigid base (common on 56 frame)
Rotation: Fully reversible rotation (CW/CCW) is essential for wholesale motors. This single feature reduces your required SKU count by 50% and simplifies inventory management.
Electrical Specifications:
Voltage: 208-230V single phase (standard for North America)
Dual voltage (115/230V) options exist but are less common for 1/4 HP condenser fans
Hertz: 60 Hz
Capacitor: Typically requires a 7.5 μF, 10 μF, or 12.5 μF run capacitor, depending on the motor design
Thermal Protection: Automatic reset thermal overloads are mandatory. The higher horsepower means more heat generation under stall conditions, making robust thermal protection critical.
Insulation Class: Class F (155°C) is the minimum for reliable 1/4 HP condenser motors. Trustec's wholesale motors feature Class H (180°C) insulation for maximum durability in extreme ambient temperatures (up to 130°F).
Amperage Draw: A properly specified 1/4 HP motor at 230V should draw between 2.0 and 2.8 amps under full load. Higher amperage indicates inefficiency or incorrect specification.
Common Applications: Where the 1/4 HP Motor is Required
The Wholesale 1/4 HP Condenser Fan Motor is the direct replacement for thousands of existing models across multiple brands. Here are the most common applications your customers will encounter:
Carrier / Bryant / Payne: Infinity and Performance series 4 and 5-ton condensers (models 24ANB7, 24ACC6, 24ABC6). OEM part numbers HC41GE233, HC41GE228.
Trane / American Standard: XL and XR series 4 and 5-ton units (models 4TTR5, 4TTR6, 2TWR3). OEM motor numbers MOT17991, MOT18868.
Lennox / Allied Air: XC and XC20 series high-SEER condensers, as well as older HS29 series 4 and 5-ton units.
Goodman / Amana: GSX, GSXC, and SSX series 4 and 5-ton condensers. OEM numbers B13400261S, B13400255S.
Rheem / Ruud: RA14, RA16, and RA17 series 4 and 5-ton units.
York / Coleman / Luxaire: Affinity and LX series 4 and 5-ton residential condensers, plus small commercial package units (models D3NA, D4NA, ZF series).
By stocking Trustec's wholesale 1/4 HP motors, you cover the majority of larger residential systems and a significant portion of the light commercial packaged rooftop market.
The Wholesale Economics: Higher Margins Through Higher Horsepower
One of the most compelling reasons to stock the Wholesale 1/4 HP Condenser Fan Motor is improved profitability. While 1/6 HP motors have become highly competitive commodities, the 1/4 HP market offers better margins due to higher entry barriers and more technical complexity.
Sample wholesale margin analysis:
Typical retail price for 1/4 HP condenser fan motor: 110−150
Trustec wholesale price (25+ units): 70−85
Gross margin per unit: 35-40%
For a distributor selling 300 units annually, that represents 12,000to18,000 in gross profit from a single SKU. Add in the ancillary sales of capacitors, fan blades, and contactors, and the value of stocking this motor becomes clear.
Beyond unit margins, wholesale purchasing offers:
Volume discounts that improve as order quantity increases (tiers at 12, 25, 50, and 100+ units)
Reduced shipping costs via palletized freight
Extended warranty terms for wholesale account holders
Priority access to new inventory shipments
Installation Efficiency: The Trustec Advantage for 1/4 HP Motors
For the technician in the field, a 1/4 HP motor replacement presents unique challenges. These motors are heavier (typically 12-15 pounds), produce more vibration, and generate more heat than their 1/6 HP counterparts. Trustec's Wholesale 1/4 HP Condenser Fan Motor is engineered to address these challenges:
Precision-balanced rotor assembly: Vibration is held to less than 0.12 inches per second, extending bearing life and reducing noise complaints.
Double-sealed, oversized ball bearings: Rated for 60,000 hours of continuous operation—far exceeding the average condenser lifespan.
Heavy-gauge steel frame: Resists bending and distortion during installation, ensuring perfect fan blade alignment.
Oversized terminal box: Provides ample space for capacitor connections and wire splices, even with gloved hands.
Clear, embossed wiring diagram: No faded paper labels—the diagram is permanently stamped into the motor housing.
Stainless steel shaft with double flat: Prevents fan blade slippage and corrosion seizure, especially in coastal environments.
A technician using a Trustec 1/4 HP motor should complete the replacement in 30-40 minutes, including cleaning the condenser coil and checking capacitor health.
Energy Efficiency: Modern Motors Outperform Old OEM Parts
The 1/4 HP condenser fan motor has seen significant efficiency improvements over the past two decades. A typical 1990s-era shaded pole 1/4 HP motor might draw 3.5-4.5 amps and operate at 55-60% efficiency. Trustec's modern PSC (Permanent Split Capacitor) design draws only 2.0-2.5 amps at 70-75% efficiency.
Energy savings calculation for end users:
Old motor power consumption: 4.0A × 230V = 920 watts
New Trustec motor: 2.2A × 230V = 506 watts
Wattage reduction: 414 watts (45% reduction)
Annual operating hours (cooling season): 1,500 hours
Energy saved per year: 621 kWh
At 0.14/kWh:∗∗87 annual savings for the homeowner**
This efficiency improvement provides a compelling selling point for contractors when upselling a premium replacement motor.
Supply Chain Reliability: Why Trustec for Wholesale 1/4 HP Motors
The HVAC motor supply chain has experienced significant volatility. Copper prices, bearing shortages, and capacitor lead times have all created challenges. Trustec maintains a dedicated inventory of Wholesale 1/4 HP Condenser Fan Motors across multiple regional distribution centers. Our forecasting model tracks historical replacement patterns to ensure this critical SKU is never out of stock.
Trustec wholesale benefits include:
Same-day shipping on orders placed before 2 PM EST
Multiple warehouse locations to minimize transit times
Bulk packaging (master cartons of 6 or 12 units) for efficient warehousing
Full cross-reference guide included with every wholesale order
Conclusion: Power Your Inventory with Trustec
The Wholesale 1/4 HP Condenser Fan Motor is a mission-critical SKU for any distributor serving the residential and light commercial HVAC market. It bridges the gap between small residential units and larger commercial systems, offering better margins than commodity 1/6 HP motors while maintaining strong volume.
At Trustec, we combine robust engineering, premium materials, and wholesale pricing to help you grow your HVAC replacement parts business. Every motor we ship meets or exceeds OEM specifications for torque, thermal protection, and energy efficiency.
Do not let a lack of inventory send your customers to a competitor. Stock the 1/4 HP condenser fan motor that professionals trust. Contact Trustec today to set up your wholesale account, request current pricing tiers, and secure your inventory for the upcoming cooling season.
