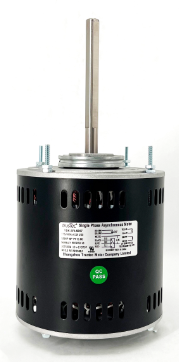

1/2 HP Condenser Fan Motor – Heavy-Duty Power for Larger AC Systems and High-Heat Loads

When a residential air conditioning system serves a larger home, a commercial space, or an environment with extreme summer temperatures, the standard 1/4 HP or 1/3 HP fan motor often isn't enough. That's where the 1/2 HP Condenser Fan Motor comes into play. This higher-horsepower motor is designed for larger condenser coils, bigger fan blades, and applications where heat rejection demands are significantly higher than average.

At Trustec, we engineer replacement motors that meet or exceed original equipment specifications. In this detailed guide, we will explore everything you need to know about the 1/2 HP Condenser Fan Motor—including when it is required, how to select the correct replacement, installation considerations, and maintenance best practices.

What is a 1/2 HP Condenser Fan Motor?

A 1/2 HP Condenser Fan Motor is a fractional horsepower electric motor rated at 0.5 horsepower, specifically designed to drive the fan blade inside an outdoor HVAC condenser unit. One-half horsepower represents significantly more torque and power output compared to the more common 1/4 HP motors. This additional power allows the motor to spin larger, heavier fan blades (typically 24 to 30 inches in diameter) and overcome higher static pressure caused by dense condenser coils or restricted airflow conditions.

In practical terms, a 1/2 HP motor can move approximately 2,500 to 3,500 CFM (cubic feet per minute) of air across a condenser coil—substantially more than the 1,500–2,000 CFM range of a 1/4 HP motor. This increased airflow is necessary for rejecting heat from larger air conditioning systems.

Common Applications for a 1/2 HP Condenser Fan Motor

You will find the 1/2 HP Condenser Fan Motor in the following equipment types:

• Large residential AC units (4 to 5 tons cooling capacity)

• Light commercial HVAC systems (5 to 7.5 tons, single or multiple circuits)

• Package rooftop units (gas/electric or heat pump, 5-ton and larger)

• Commercial refrigeration condensing units (walk-in freezers, display cases, cold storage)

• Heat pumps in cold climates (where defrost cycles demand higher fan power)

• High-static pressure applications (units with unusually restrictive coil designs or long ductwork)

If your system's original motor is a 1/2 HP, never replace it with a lower horsepower rating. Undersizing will cause the motor to overheat, draw excessive amperage, and fail prematurely—often within weeks.

Key Specifications for Selecting a 1/2 HP Condenser Fan Motor

Selecting the correct replacement 1/2 HP Condenser Fan Motor requires careful attention to several critical specifications. One wrong parameter can lead to poor performance, compressor damage, or immediate motor failure.

1. RPM (Revolutions Per Minute)

The speed of the motor must match the existing fan blade design. Common speeds for 1/2 HP condenser fan motors include:

• 810 RPM – Often found on older, large-diameter fan blades (26–30 inches)

• 1075 RPM – The most common speed for 4–5 ton residential and light commercial units

• 1140 RPM – Occasionally used on specific OEM equipment

• 1625 RPM – Used only with smaller-diameter blades designed for higher speed

Using an 1075 RPM motor on a blade designed for 810 RPM will exceed the blade's maximum safe tip speed, causing dangerous vibration, noise, and potential blade fracture. Conversely, using an 810 RPM motor on a blade designed for 1075 RPM will produce insufficient airflow, leading to high head pressure and compressor overheating.

2. Voltage

• 208-230V, single-phase – Standard for residential and most light commercial units

• 460V, three-phase – Used on larger commercial equipment (do not use on residential systems)

• 115V – Very rare at 1/2 HP; verify before purchasing

Always confirm voltage on the original motor nameplate. A 230V motor connected to 115V will not start properly. A 115V motor connected to 230V will burn out instantly.

3. Frame Size and Mounting

The 1/2 HP Condenser Fan Motor typically uses a larger frame than lower-horsepower motors. Common frame sizes include:

• 48Y – Resilient mount, common on older 1/2 HP residential motors

• 48Z – Slightly different mounting dimensions

• 56Y – Larger frame, often found on commercial and heavy-duty residential units

Shaft specifications:

• Diameter: Usually 1/2 inch or 5/8 inch (5/8 is more common on true 1/2 HP commercial motors)

• Length: 4 to 6 inches from the mounting face (longer shafts accommodate thicker fan blade hubs)

Measure your existing motor's bolt pattern, shaft diameter, and shaft length before ordering. Many universal 1/2 HP motors include adapter plates to fit multiple frame sizes.

4. Rotation Direction

Rotation must match the original. When viewed from the top of the motor (shaft pointing toward you), the fan must spin in the correct direction to pull air through the condenser coil and discharge it upward. Common configurations:

• CW (clockwise) – Most common on residential units

• CCW (counterclockwise) – Used on some brands (Lennox, Trane, etc.)

Many modern 1/2 HP Condenser Fan Motor units are reversible by swapping lead connections. Refer to the motor's wiring diagram. Never assume rotation—test the motor before fully installing the fan blade.

5. Number of Speeds

Most 1/2 HP condenser fan motors are single-speed, matching the single-stage operation of standard AC units. However:

• Two-speed motors – Used on some high-efficiency and two-stage condenser units

• Variable-speed motors – Found on premium systems (ECM technology)

If your original motor has more than one speed, you must replace it with an equivalent multi-speed motor or reconfigure the control board. Installing a single-speed motor on a multi-speed system will cause control errors and potential board damage.

6. Ambient Temperature and Enclosure Rating

Outdoor condenser fan motors must withstand harsh conditions. Look for these ratings on your 1/2 HP Condenser Fan Motor:

• TEAO (Totally Enclosed Air-Over) – Designed specifically for outdoor condenser duty; sealed against moisture and debris.

• Weather-Resistant (WR) – Suitable for outdoor use but not fully sealed.

• Open Drip-Proof (ODP) – Not acceptable for outdoor condenser use (indoor only).

Trustec's 1/2 HP motors are built with TEAO or heavy-duty weather-resistant enclosures for maximum durability.

The Run Capacitor for a 1/2 HP Condenser Fan Motor

A 1/2 HP Condenser Fan Motor requires a larger run capacitor than lower-horsepower motors due to higher starting torque requirements. Typical capacitor sizes:

• 7.5 MFD (microfarads) at 370V or 440V – Common on many 1/2 HP motors

• 10 MFD – Very common for 1/2 HP applications

• 12.5 MFD or 15 MFD – Used on high-torque or older motors

• Dual-run capacitors – Some systems combine compressor and fan capacitor functions into one unit (e.g., 40+7.5 MFD)

Critical rule: Always install a new capacitor when replacing the motor. Never guess the size—read the new motor's nameplate. Using a capacitor with lower microfarads than required will cause weak torque, slow starting, and overheating. Using higher microfarads can over-current the windings and shorten motor life.

Signs Your 1/2 HP Condenser Fan Motor Is Failing

Because 1/2 HP motors are often installed in larger, more expensive systems, catching failure early is essential:

• Humming without spinning – Failed start capacitor or seized bearings

• Slow or labored startup – Weak capacitor or worn windings

• Loud grinding or metal-on-metal noise – Bearing failure (especially common in older motors)

• Excessive vibration – Bent shaft, unbalanced fan blade, or loose mounting

• Motor housing extremely hot – Internal winding insulation breakdown

• Intermittent operation – Thermal overload switch repeatedly tripping

• Burning smell – Insulation melting inside the motor

• Tripped breaker – Short circuit to ground

If you notice any of these symptoms, shut down the system immediately to prevent compressor damage and call a qualified HVAC technician.

Installation Considerations for a 1/2 HP Condenser Fan Motor

Replacing a 1/2 HP Condenser Fan Motor is more demanding than smaller motors due to the larger size and weight. Key installation points:

Weight and Handling
A typical 1/2 HP motor weighs 15 to 25 pounds—significantly heavier than a 1/4 HP motor. Ensure the mounting brackets and condenser top panel can support the weight without flexing.

Fan Blade Matching
The fan blade must be perfectly matched to the new motor's RPM and shaft diameter. Even if the blade fits mechanically, an incorrect match will destroy performance. When in doubt, replace the fan blade along with the motor.

Venturi Ring Alignment
The fan blade must sit exactly centered within the venturi ring (the circular opening in the top grille). If the blade is too high or too low, airflow will be turbulent, and the motor will draw excessive amperage. Measure the original blade depth on the old motor shaft and duplicate it precisely.

Electrical Connections
Use properly sized wire connectors. A 1/2 HP motor draws higher amperage (typically 2.5–4.0 amps at 230V) than smaller motors. Loose or undersized connectors can overheat and fail.

Step-by-Step Replacement Overview

1. Disconnect all power to the outdoor unit. Verify with a multimeter.

2. Remove the top grille and carefully lift it with the fan blade attached.

3. Mark the fan blade position on the old motor shaft. Remove the blade using a puller—never hammer.

4. Disconnect wiring and remove the old motor. Note all connections.

5. Install the new 1/2 HP condenser fan motor using the included mounting adapter if needed.

6. Install a new run capacitor with the exact MFD rating from the new motor nameplate.

7. Wire according to the new motor diagram. Test rotation before installing the fan blade.

8. Reinstall the fan blade at the exact same depth as the original. Tighten the setscrew securely.

9. Reassemble and test. The fan should start within 1–2 seconds and run smoothly with no vibration.

Maintenance Tips for Long Life

A quality 1/2 HP Condenser Fan Motor from Trustec can last 12–15 years or more with proper care:

• Keep the condenser coil clean – A dirty coil raises head pressure, making the motor work harder and run hotter.

• Clear vegetation and debris – Maintain at least 24 inches of clearance around the unit (more than smaller systems).

• Listen for unusual noises monthly – Address bearing wear immediately.

• Check capacitor every 3–5 years – Even if the motor runs, capacitor degradation reduces efficiency.

• Inspect fan blade for cracks – A cracked blade becomes unbalanced and destroys the motor bearings.

Why Choose Trustec for Your 1/2 HP Condenser Fan Motor?

At Trustec, we know that when a 1/2 HP motor fails, you are likely dealing with a larger, more critical system—possibly serving a whole home, a business, or refrigeration for perishable goods. Our 1/2 HP Condenser Fan Motor offers:

• True 1/2 HP output – Not inflated ratings; genuine power for demanding applications

• 100% copper windings – Superior electrical efficiency and heat tolerance

• Heavy-duty sealed ball bearings – Designed for continuous operation in harsh conditions

• Automatic thermal overload protection – Prevents catastrophic failure

• Weather-resistant or TEAO enclosure – Built for outdoor durability

• Universal mounting adapters included – Fits most major brands (Carrier, Trane, Lennox, Goodman, Rheem, etc.)

• Clear wiring diagrams and reversible rotation – Simplifies installation

Conclusion

The 1/2 HP Condenser Fan Motor is a powerful, heavy-duty component designed for larger air conditioning systems, commercial applications, and high-heat environments. When replacement time comes, selecting the correct motor requires attention to RPM, voltage, frame size, rotation, and capacitor rating. Never undersize a 1/2 HP application—the consequences include compressor failure, high energy bills, and repeated service calls.

With Trustec's reliable, high-performance 1/2 HP Condenser Fan Motor, you can restore your system's cooling capacity and enjoy years of trouble-free operation. Keep your largest cooling loads covered with the power and durability of a properly selected 1/2 HP motor.
