When a commercial HVAC system or a residential outdoor condensing unit starts blowing warm air instead of cold, the culprit is often a failed motor. At the heart of that repair lies a critical component: the 1/2 HP Condenser Fan Motor. At Trustec, we understand that selecting the right motor is not just about horsepower; it is about thermal endurance, electrical efficiency, and mechanical fit.
In this comprehensive guide, we will explore everything you need to know about the 1/2 HP condenser fan motor, from its technical specifications to troubleshooting common failure modes.

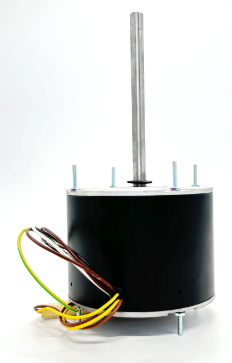

A condenser fan motor is an electromechanical device designed to drive the fan blade that pulls air through the condenser coil of an air conditioning or refrigeration system. The "1/2 HP" designation refers to half a horsepower, indicating the motor's power output.
Motors in this class typically operate at standard speeds of 810 RPM, 1075 RPM, or 1625 RPM. They are engineered to withstand extreme temperature variations, rain, snow, and the constant vibration of an operating compressor. A genuine 1/2 HP condenser fan motor is distinct from an indoor blower motor because it is totally enclosed (TEAO – Totally Enclosed Air Over) to protect the windings from moisture and debris.
For many light commercial and heavy residential systems, the 1/2 HP rating represents an optimal balance between static pressure capability and energy consumption.
Residential Units: Large central AC units (4-5 tons) often require 1/2 HP to move sufficient air across the coil.
Commercial Freezers: Walk-in coolers and freezers utilize these motors to maintain coil temperature during defrost cycles.
Heat Pumps: During the winter, the condenser fan must operate in freezing rain; a 1/2 HP motor has the torque necessary to start under ice load.
When sourcing a 1/2 HP condenser fan motor, voltage and phase are paramount. The vast majority of these motors are single-phase (115V or 230V), utilizing either a permanent split capacitor (PSC) or, increasingly, electronically commutated motor (ECM) technology.
PSC Motors: Traditional choice. Reliable, cost-effective, and easy to wire. They run at a fixed speed determined by the frequency (60 Hz) and the number of poles.
ECM Motors: Modern replacement. For a 1/2 HP rating, an ECM can reduce energy consumption by 70% compared to a PSC motor. Trustec recommends ECM retrofits where the control board allows it, due to the utility rebates often available for premium efficiency.
Before purchasing a replacement 1/2 HP condenser fan motor, you must match three critical parameters to your existing unit:
1. Frame Size (Physical Mounting)
The most common frame for this size is the 48Y (5-5/8” diameter) or 56Y (6-1/2” diameter). Measure the bolt circle diameter and the shaft length. A standard 1/2 HP motor usually has a 1/2” or 5/8” diameter shaft. If the shaft is too long or too short, the fan blade will not sit correctly inside the venturi ring.
2. RPM and Rotation
Reversible motors are ideal for service trucks. A quality 1/2 HP condenser fan motor will have a wiring diagram on the nameplate allowing you to change rotation from clockwise (CW) to counterclockwise (CCW) by switching leads. This reduces inventory needs for contractors.
3. Insulation Class
Your motor must survive the heat rejected by the compressor. Look for Class B (130°C) or Class F (155°C) insulation. Class F is superior for high-ambient environments like rooftop installations in direct sunlight.
Even robust motors fail. Understanding why they fail helps you choose a better replacement from Trustec.
Bearing Seizure: The most common cause. Condenser fan motors run for hours in dusty, wet environments. Once the sealed ball bearings lose their lubricant, the rotor drags against the stator, causing the motor to hum but not spin.
Open Windings: A lightning strike or power surge can melt the copper wiring inside the motor. A quick continuity test will show an open circuit between the common and start windings.
Rusty Shaft: In coastal environments (salt air), the shaft locks to the fan blade hub. Trying to remove the blade often bends the hub, requiring a new motor and blade.
Failed Run Capacitor: While technically separate, a weakened capacitor prevents the 1/2 HP condenser fan motor from reaching 70% of its rated torque. This causes the motor to overheat and trip its internal overload protector.
If you are replacing a failed unit, follow this professional protocol for a 1/2 HP condenser fan motor:
Lock out/Tag out: Disconnect all power to the condenser.
Recover Refrigerant (if necessary): Some units require removing the top grill. Do not bend the refrigerant lines.
Remove Fan Blade: Use a penetrating oil on the setscrew. Never hammer the shaft of the new motor; it ruins the bearings.
Mounting: The motor must sit flush on the mounting bracket. If the rubber grommets are cracked, replace them. Vibration kills bearings.
Electrical Wiring: Follow the nameplate diagram. The brown and white wires go to the capacitor. The line voltage (black) goes to the contactor. For a 1/2 HP motor, ensure the contactor is not pitted; high resistance contacts drop voltage and destroy windings.
Direction Check: Energize the system for two seconds only. The fan must blow air up (pulling air through the coil). If it spins backward, reverse the leads.
Amp Draw: A healthy 1/2 HP condenser fan motor should draw its Full Load Amps (FLA) minus 10-15%. If it draws nameplate amps or higher, your static pressure is too high (dirty coil).
When you choose Trustec for your 1/2 HP condenser fan motor, you are not just buying a spinning magnet wrapped in copper. You are investing in:
Heavy-Gauge Steel Frames: Resistant to rust-through, unlike thinner aftermarket shells.
Moisture-Resistant Windings: Dipped and baked twice in epoxy varnish to handle humidity and rain ingress.
Pre-lubricated Bearings: Sealed for life, but designed for 60,000+ hours of operation.
Universal Mounting Brackets: We know that a 1/2 HP motor needs to fit multiple brands (Carrier, Trane, Lennox, Rheem). Our mounting kits come with threaded studs and rubber isolators to adapt to any condenser base.
To ensure your 1/2 HP condenser fan motor runs for a decade, implement these quarterly checks:
Clean the Coils: A dirty condenser coil raises head pressure. The fan motor must work harder (higher amperage) to pull air through the sludge. Clean coils = happy motor.
Check the Capacitor: microfarad (mfd) ratings drift over time. If your motor is hot to the touch but the air is not hot, test the capacitor. Replace if it falls more than 5% below rating.
Listen for Noise: A grinding sound means bearing failure is imminent. A loud humming without rotation means a start capacitor or winding issue.
Verify Voltage: At the motor leads, voltage should be within 10% of the nameplate rating (e.g., 207V to 253V for a 230V motor). Brownouts kill motors faster than overheating.
The 1/2 HP condenser fan motor is a workhorse of the HVAC industry. Whether you are maintaining a residential split system or a commercial refrigeration rack, understanding the interplay of horsepower, RPM, torque, and thermal protection is key to a successful repair.
Do not let cheap, off-brand motors shorten your system's lifespan. Rely on durable, specification-matched solutions from Trustec. When you replace with precision, you restore the condenser’s ability to reject heat efficiently, lowering your head pressure and your electricity bill simultaneously.
For your next replacement, verify the frame size, match the RPM, and choose a motor that can handle the heat. The right 1/2 HP condenser fan motor doesn't just spin a blade—it keeps your entire cooling ecosystem alive.
