When an air conditioning system moves beyond residential duty and into light commercial or industrial cooling, the components must scale up accordingly. The 3/4 HP condenser fan motor represents this critical threshold. While 1/3 and 1/2 HP motors dominate home AC units, the 3/4 HP variant is the workhorse of rooftop package units, small chillers, and commercial refrigeration racks.
At Trustec, we recognize that selecting a 3/4 HP condenser fan motor requires a deeper understanding of thermal dynamics, static pressure, and electrical loading. This guide provides a comprehensive look at why this horsepower class exists, how to select the correct motor, and how to troubleshoot it in the field.

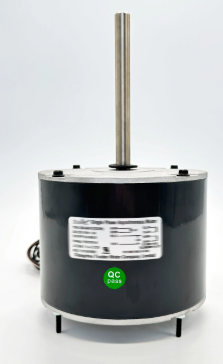

A condenser fan motor serves one primary purpose: to move air across the condenser coil, removing the heat absorbed from inside a building. The 3/4 HP condenser fan motor produces 746 watts × 0.75 = approximately 560 watts of mechanical output. This extra power allows it to drive larger, steeper-pitched fan blades or to operate against higher static pressure.
Typical specifications for this class include:
Speeds: Often 1075 RPM or 1140 RPM for standard efficiency; variable-speed ECM versions are also available.
Voltage: 208-230V single phase is most common, though three-phase (208-230V or 460V) appears in industrial settings.
Frame Sizes: Predominantly 48Y, 56Y, or the larger 48Z frame (6.5-inch diameter).
Shaft Diameter: Usually 5/8″ or ¾″ to handle greater torque.
Service technicians often ask whether they can upsize a 1/2 HP failure to a 3/4 HP condenser fan motor. The answer depends on four factors:
1. Fan Blade Compatibility
A larger motor spins the same blade more aggressively. If the existing blade is designed for 1075 RPM at 1/2 HP, running it with 3/4 HP at the same RPM will draw higher amps but may not move proportionally more air. However, if the blade is pitched steeply (e.g., 35-40 degrees), the 1/2 HP motor may stall, whereas the 3/4 HP provides the starting torque to get it moving.
2. Static Pressure Demands
Ducted condenser discharges, louvered enclosures, or microchannel coils with dense fin packs create resistance. A 3/4 HP condenser fan motor can overcome static pressures up to 0.5 inches of water column (IWC), whereas a 1/2 HP unit often maxes out at 0.3 IWC. For rooftop units with long exhaust ducts, 3/4 HP is non-negotiable.
3. Electrical Supply
A 3/4 HP motor typically draws between 4.5 and 7.5 amps at 230V. Compare this to 3.0–5.0 amps for a 1/2 HP. Ensure your contactor, fuses, and wiring can handle the increased inrush current (up to 30 amps for a split second).
4. Mounting Space
The frame length of a 3/4 HP condenser fan motor is often longer (e.g., 6.5 inches vs. 5.0 inches for a 48Y frame). Always verify the stack height and bolt circle pattern. Trustec’s mounting kits include spacers to adapt shorter frames to longer mounting posts.
You will rarely find a 3/4 HP condenser fan motor in a standard residential split system. Instead, look for these environments:
Rooftop Package Units (RTUs): Units between 7.5 and 15 tons frequently use 3/4 HP for the condenser fan. Some RTUs have dual fans; one 3/4 HP motor may drive two blades via a belt or a split shaft.
Small Air-Cooled Chillers: Chillers rejecting heat to ambient air often run multiple 3/4 HP motors in parallel, each driving a dedicated fan section.
Walk-In Freezer Condensers: These units face extreme conditions (ambients as low as -20°F outside, plus defrost heating cycles). The 3/4 HP motor provides the torque to start even when iced over.
Agricultural Cooling: Grain dryers and poultry house exhaust fans sometimes repurpose these motors due to their ability to run continuously for months.
When specifying a 3/4 HP condenser fan motor, you have three major technology choices:
Permanent Split Capacitor (PSC)
Pros: Low initial cost, simple wiring, widely available.
Cons: Efficiency maxes out at 60-70%. Runs at full speed regardless of load.
Best for: Budget replacements or units with fixed-speed controls.
Electronically Commutated Motor (ECM)
Pros: 80%+ efficiency. Allows slow ramp-up (reducing noise) and speed adjustment via 0-10V or PWM signals.
Cons: Expensive. Requires a compatible control board or thermostat.
Best for: Premium retrofits where energy savings justify the cost (payback often under 18 months for a 3/4 HP motor running 4,000 hours/year).
Three-Phase Induction
Pros: Simple construction, no run capacitor, very high starting torque, reversible by swapping any two leads.
Cons: Requires three-phase power (not available in most residential areas). Cannot run on single phase without a VFD.
Best for: Industrial refrigeration and large commercial buildings with three-phase service.
Recognizing failure early prevents compressor damage (high head pressure) and mold growth (reduced airflow). Watch for these signs in a 3/4 HP condenser fan motor:
Thermal Overload Tripping: The motor runs for 10-20 minutes, stops, cools for 30 minutes, then restarts. This indicates high amp draw or inadequate ventilation around the motor housing.
Grinding or Scraping Noises: Usually worn bearings. For a 3/4 HP motor, bearings are typically 6203 or 6204 size. Once they begin to screech, replacement is imminent.
Slow Starting: The fan spins up very slowly or requires a hand push. This points to a failed run capacitor (low microfarad reading) or a partially shorted start winding.
Vibration: A bent shaft or a fan blade that has lost a counterweight. Never ignore vibration—it will destroy the new motor’s bearings within weeks.
Replacing a 3/4 HP condenser fan motor requires careful attention to torque and alignment. Follow this professional workflow:
Step 1: Electrical Isolation
Lock out the disconnect. Verify zero voltage at the contactor line side.
Step 2: Access the Motor
Most commercial units have a hinged top panel. Support it safely. If the unit has multiple fans, note which motor corresponds to which capacitor.
Step 3: Mark the Fan Blade
Before removing the blade, mark its position on the shaft. A 3/4 HP condenser fan motor typically positions the blade hub ½ inch to 1 inch from the motor face. An incorrect depth changes airflow drastically.
Step 4: Remove the Blade
Use a penetrating lubricant on the setscrew. If the setscrew strips, use a screw extractor. Never hammer the shaft end; use a three-jaw puller on the hub only.
Step 5: Unmount the Motor
Remove the through-bolts or the base plate. Note the orientation of the rubber vibration isolators. A 3/4 HP condenser fan motor produces more vibration than smaller motors; missing isolators will transmit noise into the building.
Step 6: Wire the New Motor
Follow the nameplate diagram precisely. For a typical 230V PSC motor:
Black to line 1 (usually contactor terminal T1)
Brown to capacitor (one side)
Brown/White to capacitor (other side)
White or Yellow to line 2 (contactor terminal T2)
Green to ground
For reversible motors, swap the black and yellow leads to change from CCW to CW.
Step 7: Reinstall Blade and Test
Torque the setscrew to the manufacturer’s spec (typically 35-40 inch-pounds). Hand-rotate the blade—it should spin freely for several revolutions. Power on momentarily. The air should blow upward and outward.
Step 8: Measure Running Amps
Use a clamp meter. A healthy 3/4 HP condenser fan motor should draw between 75% and 90% of its nameplate full load amps (FLA). If amps exceed FLA, check for a dirty coil or a blade that is too large.
A premium 3/4 HP condenser fan motor from Trustec differs from generic alternatives in several measurable ways:
Class H Insulation (180°C): Standard motors use Class B (130°C). Trustec builds in a 50°C safety margin, essential for rooftop units where ambient reaches 60°C (140°F) plus motor self-heating.
Double-Sealed Bearings: Each bearing contains high-temperature grease (Mobil Polyrex EM). The bearings are sealed on both sides (2RS) to keep out dust from construction sites or agricultural debris.
Corrosion-Resistant Shaft: The output shaft receives a zinc-nickel coating, preventing rust seizure. This is especially critical for coastal applications or units near swimming pools (chlorine vapors).
Universal Voltage Tap: Many Trustec 3/4 HP models accept 208-230V automatically, with an internal auto-reset thermal protector that trips only under extreme conditions (not nuisance tripping).
Even the best 3/4 HP condenser fan motor needs periodic attention:
Quarterly: Check capacitor microfarads. A 10% drift reduces torque. Replace if out of range.
Biannually: Clean the condenser coil thoroughly. A dirty coil raises condensing temperature and forces the motor to run at higher amperage.
Annually: Grease the motor if it has grease fittings (most sealed bearings do not). Listen for bearing noise with a mechanic’s stethoscope.
As Needed: Tighten all electrical connections. Lugs that loosen over time create heat and voltage drop.
The 3/4 HP condenser fan motor is a substantial component designed for demanding environments where lighter motors would overheat or stall. Whether you are maintaining a rooftop package unit, a walk-in freezer, or a small chiller, understanding the nuances of frame size, static pressure, and electrical configuration ensures a successful repair.
Selecting a motor isn’t about grabbing the highest horsepower available. It is about matching torque to blade load, insulation class to ambient heat, and bearing quality to expected runtime. Trustec builds every 3/4 HP condenser fan motor to exceed those expectations—delivering years of quiet, efficient airflow.
By respecting the engineering behind this horsepower class, you protect not just the fan motor, but the entire refrigeration cycle that depends on it.
