TEAO Condenser Fan Motor – The Ultimate Guide to Totally Enclosed Air-Over Motors for HVAC Systems

When it comes to outdoor HVAC applications, not just any motor will do. Standard open motors fail quickly when exposed to rain, dust, insects, and temperature extremes. That's why the TEAO Condenser Fan Motor—short for Totally Enclosed Air-Over—is the industry standard for reliable, long-lasting outdoor condenser fan operation. If you want a motor that can withstand years of harsh weather while efficiently cooling your home or business, a TEAO condenser fan motor is the correct choice.

At Trustec, we design and supply high-quality TEAO motors specifically engineered for the demanding environment of outdoor condenser units. In this comprehensive guide, we will explain what makes a TEAO condenser fan motor unique, why it is superior to other enclosure types, how to select the right one, and best practices for installation and maintenance.

What is a TEAO Condenser Fan Motor?

A TEAO Condenser Fan Motor is a type of electric motor with a Totally Enclosed Air-Over enclosure. The term "totally enclosed" means the motor's internal components—windings, bearings, and electrical connections—are sealed within a housing that prevents the free exchange of air between the inside and outside of the motor. Unlike open motors that draw in surrounding air for cooling, a TEAO motor relies on airflow from the condenser fan itself to carry away heat.

The "Air-Over" designation is critical. It indicates that the motor is designed to be cooled by the air stream created by the fan blade mounted on its shaft. As the fan spins, air passes over the motor's exterior housing, removing heat generated by the windings and bearings. This design is perfectly suited for condenser units, where the motor sits directly in the forced airflow path.

Why TEAO Motors Are Essential for Outdoor Condenser Applications

Outdoor condenser units face brutal operating conditions:

• Rain and moisture – Can cause electrical shorts and rust in unprotected motors

• Dust and debris – Clogs ventilation openings and insulates windings

• Insects and spiders – Build nests inside open motor housings

• Extreme temperatures – From below freezing to over 120°F

• Direct sunlight – UV radiation degrades plastic and insulation over time

A TEAO Condenser Fan Motor addresses all these threats. The sealed housing keeps moisture, dust, and insects out. The air-over cooling design ensures the motor stays within safe operating temperatures even on the hottest days. For these reasons, virtually every original equipment manufacturer (OEM) installs TEAO motors in their outdoor condenser units.

TEAO vs. Other Motor Enclosure Types

Understanding the differences between enclosure types helps you make an informed purchasing decision.

TEAO (Totally Enclosed Air-Over)

• Sealed housing – No external ventilation openings

• Cooling method – Relies on fan airflow over the housing

• Weather resistance – Excellent; suitable for direct outdoor exposure

• Typical applications – Outdoor condenser fans, heat pump outdoor units

• Lifespan – 12–15 years with proper maintenance

ODP (Open Drip-Proof)

• Ventilated housing – Openings allow air circulation

• Cooling method – Draws in ambient air through windings

• Weather resistance – Poor; only protected from vertical drips

• Typical applications – Indoor equipment only (furnaces, air handlers)

• Lifespan outdoors – Weeks to a few months

TEFC (Totally Enclosed Fan-Cooled)

• Sealed housing with external fan – Has its own cooling fan on the opposite shaft end

• Cooling method – Self-contained fan blows air over the housing

• Weather resistance – Excellent

• Typical applications – Industrial equipment, pumps, compressors

• Note – Usually larger and more expensive than TEAO; not standard for condensers

TENV (Totally Enclosed Non-Ventilated)

• Sealed housing, no cooling fan – Relies on natural convection

• Cooling method – Passive heat dissipation

• Weather resistance – Good, but limited to low-power applications

• Typical applications – Small motors in low-heat environments

For an outdoor condenser fan, the TEAO Condenser Fan Motor is the correct and optimal choice. Never replace a TEAO motor with an ODP motor—it will fail rapidly and void any equipment warranty.

Key Specifications for Selecting a TEAO Condenser Fan Motor

When shopping for a replacement TEAO Condenser Fan Motor, you must match several specifications to ensure compatibility with your existing system.

1. Horsepower (HP)
Common horsepower ratings for TEAO condenser fan motors include:

• 1/6 HP – Small residential units (1–1.5 tons)

• 1/5 HP – Compact systems

• 1/4 HP – Most common for residential 2–3 ton units

• 1/3 HP – Larger residential and light commercial

• 1/2 HP – Heavy-duty residential and commercial

• 3/4 HP to 1 HP – Large commercial and industrial condensers

Choose exactly the horsepower specified on the original motor nameplate. Never go down in HP. Going up one step (e.g., 1/4 HP to 1/3 HP) is sometimes acceptable but may require a larger run capacitor.

2. RPM (Revolutions Per Minute)
Speed must match the fan blade design. Common speeds:

• 810 RPM – Older, larger-diameter blades

• 1075 RPM – Most common residential speed

• 1140 RPM – Some commercial applications

• 1625 RPM – High-speed, smaller-diameter blades

3. Voltage

• 115V – Small residential and some older units

• 208-230V – Standard for most residential and light commercial

• 460V or 575V – Commercial/industrial (three-phase)

4. Frame Size
The frame determines mounting dimensions. Common frames for TEAO condenser fan motors:

• 48Y – Most common residential frame (resilient mount)

• 48Z – Slight variation on 48Y

• 56Y – Larger frame for 1/2 HP and above

Shaft specifications:

• Diameter: Typically 1/2 inch (residential) or 5/8 inch (commercial)

• Length: Usually 4 to 6 inches

5. Rotation Direction
Check the original motor's rotation (CW or CCW when viewed from the top). Many TEAO motors are reversible by swapping lead connections. Always verify rotation before final assembly.

6. Number of Speeds
Most TEAO condenser fan motors are single-speed. However:

• Two-speed motors – Used on high-efficiency and two-stage condensers

• Variable-speed (ECM) motors – Premium systems with constant airflow control

If your original motor has multiple speeds, replace it with an equivalent multi-speed TEAO motor.

The Role of the Run Capacitor in TEAO Motors

Every TEAO Condenser Fan Motor requires a run capacitor to operate. The capacitor provides the phase shift necessary for starting and running efficiency. TEAO motors are typically permanent split capacitor (PSC) designs.

Common capacitor sizes:

• 5 MFD – Common for 1/6 HP to 1/4 HP motors

• 7.5 MFD – Common for 1/4 HP to 1/3 HP motors

• 10 MFD – Common for 1/3 HP to 1/2 HP motors

• 12.5 MFD to 15 MFD – Larger 1/2 HP and commercial motors

Critical rule: Replace the capacitor every time you replace the motor. A degraded capacitor will cause the new motor to overheat, draw high amperage, and fail prematurely. Match the microfarad rating exactly as shown on the new motor nameplate. Voltage rating must be at least 370V (440V preferred).

Signs Your TEAO Condenser Fan Motor Is Failing

Even the best TEAO Condenser Fan Motor will eventually wear out. Look for these warning signs:

• Humming but not spinning – Failed capacitor or seized bearings

• Slow or erratic startup – Weak capacitor or winding insulation breakdown

• Grinding or rattling noises – Bearing failure (common after 10+ years)

• Excessive heat – Housing too hot to touch indicates internal problems

• Intermittent operation – Thermal overload switch repeatedly tripping

• Burning smell – Insulation melting inside the motor

• Tripped breaker – Electrical short to ground

If you observe any of these symptoms, shut down the system immediately to protect the compressor and call a qualified HVAC technician.

Installation Tips for a TEAO Condenser Fan Motor

Replacing a TEAO Condenser Fan Motor requires attention to detail. Here are key installation points:

1. Power Disconnection
Always disconnect power at the breaker and the outdoor disconnect box. Verify zero voltage with a multimeter before touching any wiring.

2. Fan Blade Removal and Reinstallation
Mark the exact position of the fan blade on the old motor shaft before removal. Use a puller to remove the blade—never hammer the shaft, as this damages the new motor's bearings. Reinstall the blade at precisely the same depth to ensure proper alignment with the venturi ring.

3. Mounting Adaptations
If the new motor's bolt holes do not align with the old mounting plate, use the included adapter plate. Ensure the motor sits level and secure. A loose motor will vibrate and fail quickly.

4. Wiring
Follow the wiring diagram provided with the new TEAO motor. Typical connections:

• Black wire – High speed (or line voltage)

• Purple or brown wire – To capacitor

• Brown/white wire – Common side of capacitor

• Green or bare wire – Ground

Take a photo of the old wiring before disconnecting.

5. Rotation Test
Before reinstalling the fan blade, briefly energize the motor to verify rotation direction. If incorrect, reverse the appropriate leads according to the diagram.

6. Final Assembly
Reinstall the top grille and fan assembly. Ensure the fan blade spins freely without rubbing against the grille or coil. Listen for unusual noise during the first minute of operation.

Maintenance Tips to Extend the Life of Your TEAO Condenser Fan Motor

A quality TEAO Condenser Fan Motor from Trustec can last 12–15 years or more with proper care:

• Clean the condenser coil annually – A dirty coil raises head pressure, forcing the motor to work harder and run hotter.

• Keep the outdoor unit clear – Trim vegetation and remove debris within at least 18 inches of the unit.

• Listen for unusual noises monthly – Address bearing wear or vibration immediately.

• Check the capacitor every 3–5 years – Even if the motor runs, capacitor efficiency degrades over time.

• Inspect the fan blade for cracks – A cracked blade becomes unbalanced and destroys the motor bearings.

• Avoid pressure washers – Never direct high-pressure water at the motor housing—it can force moisture past seals.

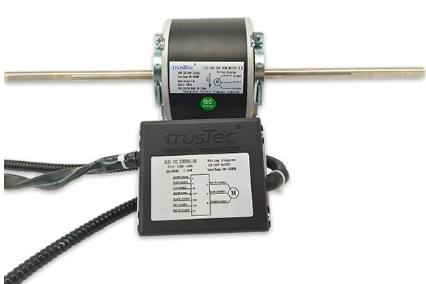

Why Choose Trustec for Your TEAO Condenser Fan Motor?

At Trustec, we understand that a failed condenser fan motor is never a convenient event. When your AC goes down on a hot day, you need a reliable replacement that installs quickly and lasts for years. Our TEAO Condenser Fan Motor products offer:

• Genuine TEAO construction – Fully sealed housing for maximum weather resistance

• 100% copper windings – Superior electrical efficiency and heat tolerance compared to aluminum

• Heavy-duty sealed ball bearings – Quiet, maintenance-free operation

• Automatic thermal overload protection – Shuts down the motor before catastrophic failure

• Universal mounting adapters – Fits most major brands (Carrier, Trane, Lennox, Goodman, Rheem, York, and more)

• Clear wiring diagrams – Reduces installation errors and callbacks

• Competitive pricing – Factory-direct value without OEM markup

Conclusion

The TEAO Condenser Fan Motor is the undisputed standard for outdoor HVAC condenser applications. Its totally enclosed design protects against moisture, dust, and insects, while the air-over cooling method ensures reliable operation even in extreme heat. When replacing a failed motor, always choose a TEAO enclosure—never compromise with an open drip-proof motor that will fail within months.

By matching horsepower, RPM, voltage, frame size, rotation, and capacitor rating, you can restore your air conditioning system to peak performance. And with Trustec's high-quality TEAO condenser fan motors, you can expect years of trouble-free cooling.

Don't let a failed fan motor leave you in the heat. Choose the durability and reliability of a genuine TEAO Condenser Fan Motor from Trustec.
