Air Conditioner Condenser Fan Motor – The Ultimate Guide to Selection, Performance, and Troubleshooting

When your outdoor HVAC unit struggles to cool your home, the culprit is often a small but mighty component: the Air Conditioner Condenser Fan Motor. At Trustec, we understand that this motor is the unsung hero of any cooling system. Without a properly functioning condenser fan motor, your air conditioner cannot reject heat to the outdoors, leading to compressor failure and skyrocketing energy bills.

In this comprehensive guide, we will explore everything you need to know about condenser fan motors—from how they work to how to choose the right replacement for your HVAC system.

What is an Air Conditioner Condenser Fan Motor?

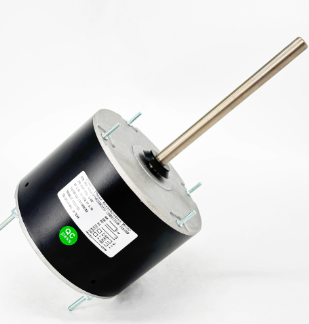

The Air Conditioner Condenser Fan Motor is an electric motor located inside the outdoor condensing unit of a split air conditioning system or a heat pump. Its primary job is to drive the fan blades that pull ambient air through the condenser coil. As hot, pressurized refrigerant gas flows through the coil, the fan motor forces air across the coil fins, transferring heat from the refrigerant to the outside air. This process condenses the refrigerant back into a liquid state, allowing it to return indoors to absorb more heat.

Without this motor, your AC unit would overheat within minutes. For residential and light commercial systems, these motors are typically single-phase, fractional horsepower units ranging from 1/6 HP to 1 HP.

Why is the Condenser Fan Motor Critical for Efficiency?

One of the most overlooked maintenance items in HVAC is the health of the Air Conditioner Condenser Fan Motor. Consider these key points:

1. Heat Rejection: The motor ensures that the compression cycle completes. If the fan slows down or stops, head pressure skyrockets.

2. Compressor Protection: High head pressure causes the compressor to draw higher amperage, leading to thermal overload trips and eventual burnout.

3. Energy Consumption: A failing motor that is drawing too many amps can increase your electricity bill by 15-25%.

4. System Lifespan: Systems with well-maintained fan motors often last 5–7 years longer than those running with worn bearings or out-of-spec capacitors.

Common Signs Your Air Conditioner Condenser Fan Motor is Failing

As a homeowner or facility manager, recognizing early failure signs can save you thousands in repair costs. Look for these symptoms:

• The Fan Won't Start: You hear a humming noise from the outdoor unit, but the blades do not spin. This often indicates a seized bearing or a bad run capacitor.

• Slow Startup or Erratic Speed: The fan takes a long time to reach full speed or randomly slows down. This usually points to a failing motor winding.

• Overheating: If the motor housing is too hot to touch (over 200°F), internal insulation is breaking down.

• Loud Noises: Grinding or rattling suggests worn ball bearings. A high-pitched squeal often means the shaft is seizing.

• Tripping Breakers: Windings shorted to ground will immediately trip the circuit breaker or blow a fuse.

OEM vs. Universal Replacement Motors: What You Need to Know

When it's time to replace your Air Conditioner Condenser Fan Motor, you have two primary paths: OEM (Original Equipment Manufacturer) or Universal replacement motors.

OEM Motors

• Pros: Exact fit, identical bolt pattern, same electrical specs, no wiring guesswork.

• Cons: Expensive (often 2-3x the cost of aftermarket), often require long wait times for shipping.

Universal Replacement Motors (Recommended by Trustec)

• Pros: Affordable, readily available in stock, highly versatile (one motor replaces hundreds of models).

• Cons: Requires installing an adapter plate or adjusting mounting height; may need to change the run capacitor.

At Trustec, we recommend high-quality universal motors when properly sized. They are the industry standard for service technicians because of their durability and cost-effectiveness.

How to Select the Correct Air Conditioner Condenser Fan Motor

Choosing the wrong motor leads to poor airflow, compressor damage, and constant short-cycling. Use this checklist to match your replacement motor exactly:

1. Horsepower (HP): Never use a lower HP than the original (e.g., replacing a 1/4 HP with a 1/6 HP will cause overheating). Going one step higher (1/4 HP to 1/3 HP) is generally safe as long as the amp draw is monitored.

2. RPM (Revolutions Per Minute): Most condenser fans run at 810 RPM, 1075 RPM, or 1625 RPM. Speed must match the original fan blade design. Using an 1100 RPM motor on a blade designed for 800 RPM will exceed blade tip speed limits and cause dangerous wobbling.

3. Voltage and Phase: Residential units are almost always 208-230V, single-phase. Verify this on the nameplate.

4. Number of Speeds: Most condenser fan motors are single-speed. However, some high-efficiency units use two-speed or variable-speed motors. Do not replace a multi-speed motor with a single-speed unit without an HVAC technician's approval.

5. Frame Size: The "48" or "48Y" frame is standard for residential condenser fan motors. The "Y" indicates a resilient mount. The shaft diameter is typically 1/2" or 5/8".

6. Rotation (CW or CCW): Check the direction of the existing motor. Reversible motors (which most universal motors are) have leads to swap rotation. If you install a motor spinning the wrong way, air will blow down through the top of the unit instead of up, causing immediate compressor failure.

The Critical Role of the Run Capacitor

Never replace an Air Conditioner Condenser Fan Motor without changing the run capacitor. The capacitor provides the phase shift necessary to start the motor and keeps it running efficiently. A weak capacitor (even if not bulging) will cause a new motor to overheat within weeks.

Formula for Capacitor Sizing:
Check the motor nameplate for "MFD" (microfarads). For example, a 5 MFD or 7.5 MFD is common. The voltage rating must be at least 370V (440V is safer and lasts longer). If your motor requires a 7.5 MFD capacitor, never use a 5 MFD—the motor will lack torque.

Step-by-Step Replacement Guide (Professional Overview)

While we highly recommend using a licensed HVAC technician, here is a general overview of replacing a failed Air Conditioner Condenser Fan Motor:

1. Disconnect Power: Remove the disconnect block or turn off the breaker. Verify zero voltage with a meter.

2. Recover Refrigerant? No. The condenser fan motor can be changed without breaking the refrigeration circuit.

3. Remove Top Grille: Most outdoor units have a single bolt holding the top fan grille. Remove it and carefully lift the grille (the fan is attached).

4. Remove Fan Blade: Mark the exact position of the blade on the shaft. Loosen the setscrew. Use a puller if rusted—never hammer the shaft as this damages the new motor bearings.

5. Disconnect Wiring: Take a photo of the old motor’s wiring (Common, Herm, Fan on the capacitor). Label wires.

6. Mount New Motor: Use the provided adapter plate if the bolt holes don't line up. Ensure the shaft height places the fan blade inside the venturi ring (the circular opening). The blade should be centered, not rubbing.

7. Install New Capacitor: Secure the capacitor in the electrical panel. Do not let it dangle.

8. Wire According to Diagram: Connect the new motor leads. For reversible motors, follow the diagram to set rotation (CW or CCW looking from the top).

9. Test Operation: Restore power. The fan should start smoothly and push air straight up. Amperage should be below the nameplate "Max Load Amps."

Maintenance Tips to Extend Motor Life

The average lifespan of a quality Air Conditioner Condenser Fan Motor is 12 to 15 years. You can maximize this with three simple tasks:

• Annual Coil Cleaning: Use a garden hose and commercial coil cleaner. Dirty coils force the fan to run hotter and longer.

• Bearing Lubrication: If your motor has oil ports (some do, many modern ones are sealed), add 2-3 drops of electric motor oil every year.

• Physical Clearance: Trim bushes and weeds at least 18 inches away from the unit. Poor airflow increases static pressure on the fan blade, straining the motor.

Why Choose Trustec for Your Condenser Fan Motor Needs?

At Trustec, we don't just sell parts—we provide reliability. Our inventory of replacement Air Conditioner Condenser Fan Motors is rigorously tested for high-temperature operation, weather resistance, and long-term bearing durability. Whether you are a contractor needing a motor that will last through a brutal summer or a DIY homeowner looking for a straightforward swap, Trustec offers the performance you demand.

Our motors feature:

• High-grade copper windings (not aluminum)

• Sealed ball bearings for whisper-quiet operation

• Automatic thermal overload protection

• Easy-to-read wiring diagrams for universal fit

Conclusion

The Air Conditioner Condenser Fan Motor is the backbone of your HVAC system's cooling capacity. By understanding how it works, recognizing failure signs, and selecting the right replacement (with a new capacitor), you can restore your air conditioner to peak performance. Remember to prioritize proper sizing—HP, RPM, voltage, and rotation—and always maintain clear airflow around your outdoor unit.

For the most durable and affordable replacement fan motors, turn to Trustec. Keep your cool, even on the hottest days, with components engineered to last.
