In the world of HVAC service, time is money, and inventory space is limited. Nothing frustrates a technician more than carrying four different motors for four different brands—only to realize the rotation is wrong. Enter the solution: the reversible condenser fan motor.

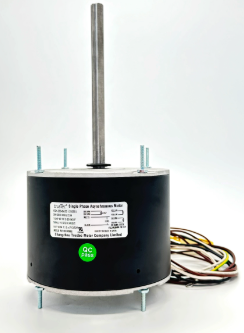

At Trustec, we have engineered a range of reversible condenser fan motor solutions that eliminate the guesswork of clockwise (CW) versus counterclockwise (CCW) rotation. But reversibility is not just a wiring gimmick; it fundamentally changes how contractors stock trucks, handle emergency calls, and retrofit obsolete equipment.
This guide explores everything you need to know about reversible condenser fan motors: how they work, when to use them, and why they are becoming the standard for professional service fleets.
A standard condenser fan motor is built with a fixed rotational direction determined by the internal winding arrangement and the starting capacitor circuit. Once manufactured, a CW motor cannot run CCW without physical modification to the stator or external contactors.
A reversible condenser fan motor, however, is specifically wound so that the technician can change rotation simply by swapping two electrical leads—usually labeled something like "Black/Yellow" or by providing a separate wiring diagram for CW and CCW operation.
In practical terms, this means one single SKU replaces two or three direction-specific motors. For a reversible condenser fan motor rated at 1/3 HP, 1/2 HP, or 3/4 HP, the mechanical footprint remains identical regardless of which way the shaft spins.
You might assume that any fan spinning inside a condenser will move air. That assumption can destroy a compressor in minutes.
Most condenser fan blades are airfoils—curved scoops designed to move air in only one direction efficiently. If you spin a blade backward:
Airflow drops by 70-80% because the blade’s camber now pushes air the wrong way.
The motor overheats because the fan blade acts as a flat plate, loading the motor above its rated amperage.
Head pressure skyrockets as the condenser coil receives no cooling air, potentially tripping the high-pressure switch or rupturing a hose.
Conversely, some units (especially older Rheem or WeatherKing models) use a "pusher" configuration where the fan sits above the coil blowing down. Others use a "sucker" configuration pulling air up. A reversible condenser fan motor handles both scenarios without needing two different parts.
To understand reversibility, you need a basic grasp of single-phase motor theory. A permanent split capacitor (PSC) motor has two windings: the main (run) winding and the auxiliary (start) winding. The capacitor creates a phase shift that determines which winding gets the leading current.
In a non-reversible motor, the capacitor is hardwired to one winding. In a reversible condenser fan motor, the design brings out both ends of both windings to the terminal board. By reconnecting which winding receives the capacitor, the rotor spins the opposite way.
Here is a typical wiring pattern for a reversible PSC motor:
For CW rotation: Capacitor connected between brown (auxiliary start) and line. Main winding sees direct power.
For CCW rotation: Capacitor connected between the other auxiliary lead (often yellow or white) and line.
Modern reversible designs use color-coded leads. Trustec’s reversible condenser fan motor lineup includes a laminated wiring diagram affixed to the motor housing—rain-resistant ink that survives years outdoors.
For a service company managing 20 trucks, the reversible condenser fan motor is a logistics breakthrough. Consider the traditional approach:
Motor A: 1/2 HP, 1075 RPM, CW rotation, 48Y frame
Motor B: 1/2 HP, 1075 RPM, CCW rotation, 48Y frame
Motor C: 1/2 HP, 1075 RPM, CW rotation, 56Y frame
Motor D: 1/2 HP, 1075 RPM, CCW rotation, 56Y frame
That is four SKUs for one horsepower and speed. With a reversible condenser fan motor, you stock only two SKUs (48Y and 56Y). When a technician arrives at a job, they set the rotation in 30 seconds using a screwdriver.
This reduction:
Lowers inventory carrying costs by up to 50% for motors.
Reduces dead stock when a specific rotation is discontinued.
Cuts return trips because the technician carries the correct rotation for any brand.
While a reversible condenser fan motor works anywhere, certain scenarios make it indispensable:
1. Rooftop Package Units (RTUs) with Multiple Fans
Some 10- to 20-ton RTUs have two or three condenser fans. One fan rotates CW, the adjacent fan rotates CCW to create a swirling airflow pattern that improves coil coverage. A reversible motor allows you to stock one spare for both positions.
2. Obsolete or Rebranded Equipment
Brands like York, Carrier, Trane, and Lennox sometimes use opposite rotations for the same nominal tonnage. If you service mixed brands, a single reversible condenser fan motor covers all.
3. Replacement When the Original Rotation Is Unknown
Labels fade. Paint overspray hides arrows. Without a reversible motor, you must guess the rotation based on blade curvature—and guess wrong 20% of the time. Reversible eliminates the guess.
4. Field-Engineered Airflow Changes
Occasionally, a site needs to convert from pull-through to push-through airflow due to ductwork constraints. A reversible condenser fan motor makes that redesign possible without a custom motor order.
If you have a genuine reversible condenser fan motor, the process is straightforward. However, mistakes happen. Follow this exact sequence:
Step 1 – Safety First
Disconnect power to the condenser. Lock out the disconnect. Verify zero voltage at the contactor.
Step 2 – Identify the Reversing Leads
Look for a wiring diagram on the nameplate. Most reversible motors mark the reversing leads as:
Black and Yellow (for PSC designs) or
A diagram showing terminal numbers (e.g., swap T5 and T8).
Step 3 – Determine Required Rotation
Stand above the unit looking down at the fan blade. Clockwise means the blade turns to the right. Counterclockwise means left. However, airflow direction matters more. A simple test: a properly rotating fan will blow strongly upward and outward from the coil.
Step 4 – Wire for Your Rotation
For CW: Connect Black to line, Yellow to capacitor, Brown to capacitor.
For CCW: Connect Yellow to line, Black to capacitor, Brown to capacitor.
Note: Exact colors vary by manufacturer. Trustec provides a laminated card with every reversible condenser fan motor showing four common wiring schemes.
Step 5 – Verify Before Full Assembly
Leave the fan blade loosely installed. Bump the contactor (energize for 1-2 seconds only). Observe the direction. If wrong, swap the two reversing leads. Do not run the motor for more than 5 seconds without the blade fully secured; running without load can overspeed and damage the windings.
Step 6 – Secure and Test
Torque the fan blade setscrew to 35-40 inch-pounds. Run the unit for 15 minutes. Measure amp draw—it should not exceed the nameplate Full Load Amps (FLA).
Even with a reversible motor, errors happen. Avoid these:
Assuming all motors are reversible. Many cheap motors are fixed rotation. Attempting to reverse them by rewiring will simply trip the breaker or burn the start winding. Always verify the nameplate explicitly says reversibility.
Swapping the wrong leads. Some motors have two capacitors or a speed tap. Changing the wrong wire changes speed, not rotation.
Forgetting to update documentation. If you replace a motor and reverse the rotation from the original, mark the unit clearly. The next technician will thank you.
Using the wrong blade direction. Reversing the motor does not change the blade’s airfoil orientation. If the blade is physically installed upside down, the motor will still move air poorly. Match blade pitch to rotation.
Not all reversible motors are created equal. Trustec builds its reversible condenser fan motor line with three distinct advantages:
1. True Field Reversibility Without Jumpers
Some manufacturers require moving a small metal jumper clip inside the terminal housing. That jumper is easy to lose and hard to manipulate with cold, gloved hands. Trustec uses lead swapping only—no loose parts.
2. Color-Coded Leads Rated for 105°C
The internal wiring insulation withstands the hottest condenser environments. Yellow and black leads are differentiated by a printed stripe, eliminating confusion even in low light.
3. Dual Capacitor Ratings
Many reversible motors must be used with a specific capacitance. Trustec’s design accepts a range (e.g., 5 μF to 10 μF) so you can reuse the existing capacitor from the failed motor—as long as the voltage rating matches.
4. Reversible Shaft Design
Some reversible motors only change rotation electrically but have a shaft key or flat that is machined for one direction only. Trustec uses a fully symmetrical shaft with a double-ended flat, allowing the fan blade hub to grip equally well in either direction.
A common question: Does reversibility reduce efficiency? The answer is no. A reversible condenser fan motor uses the exact same copper fill, lamination stack, and air gap as a fixed-rotation motor. The only difference is the termination of the winding leads.
In fact, because the reversible design forces manufacturers to use higher-quality insulation (to handle the swapped current paths), some reversible motors actually outlast fixed-direction counterparts. Trustec’s reversible models carry Class F insulation (155°C) as standard.
Despite their flexibility, reversible motors are not always the best choice:
OEM warranty replacements for units still under manufacturer warranty often require exact fixed-rotation parts to maintain coverage.
ECM motors (electronically commutated) are inherently programmable for direction via software. However, many ECMs are not field-reversible without a proprietary computer interface. A reversible PSC motor is simpler for most contractors.
Oversized applications where the motor runs near its maximum thermal limit. Reversible motors have slightly more internal wiring, which theoretically adds resistance. In practice, the difference is negligible (under 0.2 amps).
The reversible condenser fan motor represents a smart evolution in HVAC parts management. By eliminating the CW vs. CCW guessing game, it reduces truck stock, simplifies emergency repairs, and allows one motor to serve multiple legacy systems.
Whether you are a solo technician servicing a 50-mile rural route or a national MRO buyer stocking 50 warehouses, the logic is undeniable: carry fewer parts, cover more scenarios, and never lose a Sunday afternoon to a rotation mismatch.
Trustec designs every reversible condenser fan motor to be rugged, intuitive, and compatible with the widest range of equipment—from residential split systems to light commercial rooftop units. When flexibility matters, reversible is the right choice. And when reversible is the choice, Trustec delivers the reliability you need to keep cooling systems running year after year.
