AC Condenser Fan Motor – Complete Guide to Failure Signs, Replacement, and Selection

When your air conditioning system stops cooling effectively, one of the first components to suspect is the AC Condenser Fan Motor. Located in the outdoor condensing unit, this motor drives the fan that pulls air across the condenser coil, releasing heat from your home to the outside. Without a fully functional condenser fan motor, your air conditioner cannot complete its refrigeration cycle, leading to compressor overheating, high energy bills, and eventual system failure.

At Trustec, we have spent years helping homeowners and HVAC professionals find reliable, high-performance replacement motors. In this guide, we will cover everything you need to know about the AC Condenser Fan Motor—from how it works to how to select the perfect replacement.

What is an AC Condenser Fan Motor?

An AC Condenser Fan Motor is an electric motor specifically designed for outdoor HVAC condenser units. Unlike indoor blower motors, condenser fan motors are built to withstand extreme weather conditions—rain, snow, direct sunlight, and temperature fluctuations from below freezing to over 120°F.

The motor's job is simple but critical: rotate the fan blades to move ambient air across the condenser coil. As hot, high-pressure refrigerant gas flows through the coil, the moving air carries heat away, causing the refrigerant to condense into a liquid. This liquid refrigerant then travels indoors to absorb more heat. Without this motor, the heat exchange process stops immediately.

How an AC Condenser Fan Motor Works

Understanding the basic operation helps with troubleshooting. The AC Condenser Fan Motor operates on single-phase power (typically 208-230 volts for residential systems). When the thermostat calls for cooling, a contactor sends voltage to both the compressor and the fan motor. A run capacitor stores and releases energy to create a phase shift, giving the motor the torque needed to start spinning.

Once running, the motor maintains a constant speed (usually 810 RPM, 1075 RPM, or 1625 RPM) to ensure proper airflow across the condenser coil. The motor continues running as long as the compressor runs, shutting off only when the cooling cycle ends.

Top Signs Your AC Condenser Fan Motor Is Failing

Recognizing early warning signs can save you from a costly emergency repair on a 100°F day. Watch for these symptoms:

1. The Fan Does Not Spin, But You Hear a Hum
A humming noise from the outdoor unit with no blade movement almost always indicates a seized motor bearing or a failed run capacitor. If the blade spins freely by hand, the capacitor is likely bad. If it does not spin, the motor bearings are locked.

2. The Fan Starts Slowly or Intermittently
A motor that takes a long time to reach full speed or stops and starts randomly has worn internal windings or a failing capacitor. This stresses the compressor and reduces cooling efficiency.

3. Overheating Motor Housing
If the motor casing is too hot to touch for more than a few seconds, internal insulation is breaking down. Excessive heat leads to shorted windings and complete motor failure.

4. Unusual Noises

• Grinding or rattling: Worn ball bearings.

• Squealing: The shaft is seizing inside the bearing.

• Loud humming: Electrical issue, usually a capacitor or bad winding.

5. Tripped Circuit Breaker or Blown Fuse
A motor with windings shorted to ground will draw extremely high amperage, instantly tripping the breaker. Do not simply reset the breaker—this indicates a dead short in the motor.

OEM vs. Universal Replacement Motors

When replacing a failed AC Condenser Fan Motor, you have two options: OEM (Original Equipment Manufacturer) or universal replacement motors.

OEM Motors

• Pros: Exact fit, same bolt pattern, no wiring guesswork, identical shaft length.

• Cons: Expensive (often 2-3 times higher than aftermarket), long lead times, limited availability for older units.

Universal Replacement Motors (Trustec Recommendation)

• Pros: Affordable, in stock locally or online, one motor replaces dozens of models, includes mounting adapters.

• Cons: Requires minor modifications (adapter plate, shaft height adjustment), may need a new run capacitor.

For most residential applications, a high-quality universal AC Condenser Fan Motor from Trustec is the smart choice. It offers excellent value without compromising reliability.

How to Select the Correct AC Condenser Fan Motor

Choosing the wrong motor leads to poor airflow, compressor overheating, and premature failure. Use these seven criteria to match your replacement motor exactly:

1. Horsepower (HP)
Never drop to a lower HP than the original. Going up one step (e.g., 1/4 HP to 1/3 HP) is generally safe if the amp draw remains within limits. Common sizes: 1/6 HP, 1/5 HP, 1/4 HP, 1/3 HP, 1/2 HP.

2. RPM (Revolutions Per Minute)
Speed must match the existing fan blade design. Using a faster motor on a blade designed for lower RPM will exceed tip speed limits, causing dangerous wobbling and noise.

• Standard residential speeds: 810 RPM, 1075 RPM, 1625 RPM.

3. Voltage
Residential units are almost always 208-230V, single-phase. Verify this on the old motor nameplate. Do not use a 115V motor on a 230V system—it will burn out instantly.

4. Number of Speeds
Most condenser fan motors are single-speed. However, some high-efficiency or two-stage units use multi-speed motors. Replacing a multi-speed motor with a single-speed unit requires professional reconfiguration.

5. Frame Size
The frame indicates mounting dimensions. For residential condenser fan motors, the most common is 48Y (resilient mount). Shaft diameter is typically 1/2 inch or 5/8 inch. Shaft length varies but is usually 4 to 6 inches.

6. Rotation Direction
Check whether the existing motor spins clockwise (CW) or counterclockwise (CCW) when viewed from the top. Most universal motors are reversible by swapping leads. Incorrect rotation causes air to blow downward into the unit instead of upward, leading to immediate compressor failure.

7. Ambient Temperature Rating
Because the motor lives outdoors, it must have a weather-resistant (WR) or totally enclosed air-over (TEAO) rating. Standard indoor motors will fail within weeks in outdoor conditions.

The Run Capacitor – A Critical Partner

Never replace an AC Condenser Fan Motor without changing the run capacitor. A weak capacitor (even if it looks fine) will cause a new motor to overheat, draw high amperage, and fail within months.

Capacitor Selection:

• Check the new motor nameplate for microfarad (MFD) rating (e.g., 5 MFD, 7.5 MFD, 10 MFD).

• Voltage rating must be at least 370V. Use 440V for longer life.

• Never use a lower MFD than required. A 5 MFD motor needs a 5 MFD capacitor—using a 3 MFD will cause low torque and overheating.

Step-by-Step Replacement Overview

While we recommend using a licensed HVAC technician, here is a general outline of replacing an AC Condenser Fan Motor:

1. Disconnect all power to the outdoor unit at the breaker and disconnect box. Verify with a multimeter.

2. Remove the top grille (usually one bolt in the center). The fan blade is attached to the motor shaft.

3. Mark and remove the fan blade from the old shaft. Note the exact position. Use a penetrating oil and puller if rusted.

4. Disconnect wiring and remove the old motor. Take a photo of the wiring connections.

5. Install the new motor using the provided adapter plate if holes do not align. Ensure the shaft height places the fan blade correctly inside the venturi ring.

6. Install a new run capacitor of the correct MFD rating.

7. Wire according to the diagram provided with the new motor. Set rotation direction before final assembly.

8. Reinstall the fan blade at the same depth as the original. Tighten the setscrew securely.

9. Test operation – the fan should start smoothly and push air straight up. Check amperage with a clamp meter; it must stay below the nameplate "Max Load Amps."

Maintenance Tips to Extend Motor Life

A quality AC Condenser Fan Motor can last 12–15 years with proper care. Follow these simple tips:

• Clean the condenser coil annually – dirty coils raise head pressure, making the fan work harder and run hotter.

• Keep vegetation away – maintain at least 18 inches of clearance around the outdoor unit.

• Listen for unusual noises – address grinding or squealing immediately before bearing failure damages the motor.

• Replace the capacitor every 5–7 years – capacitors degrade over time even if the motor is still running.

Why Choose Trustec?

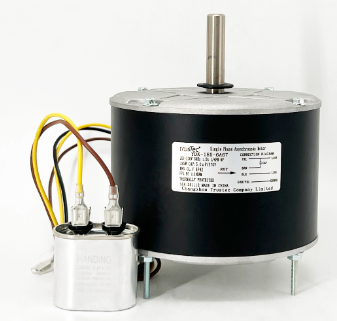

At Trustec, we take condenser fan motors seriously. Our replacement motors feature:

• 100% copper windings for superior heat transfer and efficiency (never aluminum)

• Sealed ball bearings for quiet, maintenance-free operation

• Automatic thermal overload protection to shut down the motor before it burns up

• Weather-resistant construction designed for outdoor HVAC duty

• Clear wiring diagrams and universal mounting adapters included

Whether you are a professional contractor or a confident DIY homeowner, Trustec delivers the reliability you need to get through the hottest summer days.

Conclusion

The AC Condenser Fan Motor is essential to your air conditioning system's ability to reject heat. By understanding how it works, recognizing failure signs early, and selecting the correct replacement (including a new run capacitor), you can restore your AC to peak performance. Always match horsepower, RPM, voltage, rotation, and frame size precisely. And remember—a quality universal motor from Trustec offers the best balance of affordability, availability, and durability.

Stay cool and keep your system running efficiently with the right AC Condenser Fan Motor. Trustec has your back.
