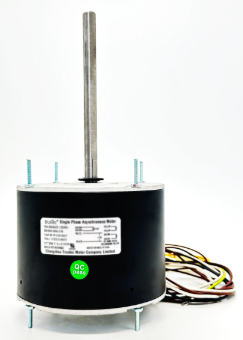

When temperatures rise and cooling systems are pushed to their limits, the 1/3 HP Condenser Fan Motor proves its value as a robust, high-performance component. Positioned between the lighter-duty 1/4 HP motors and the heavy-duty 1/2 HP class, the 1/3 HP motor delivers exceptional airflow and reliable torque for a wide range of residential and light commercial HVAC applications. At Trustec, we engineer our 1/3 HP condenser fan motors to handle higher static pressures, larger fan blades, and more demanding operating conditions than smaller motors can tolerate. Understanding the capabilities and proper applications of this versatile motor size helps ensure your cooling system operates at peak efficiency, even during extreme heat waves.
The “1/3 HP” rating represents one-third of a horsepower, equivalent to approximately 249 watts of mechanical output. While this may seem like a modest increase over a 1/4 HP motor, the real-world performance difference is significant. A 1/3 HP condenser fan motor provides roughly 33% more torque than a 1/4 HP unit, allowing it to turn larger-diameter fan blades (typically 20 to 26 inches) or blades with steeper pitch angles that move more air against higher static pressure.
This horsepower class is commonly found in:
Residential central air conditioners from 2.5 to 4 tons of cooling capacity
High-efficiency condensers with dense coil designs
Heat pump outdoor units operating in extreme climates
Light commercial package units (RTUs) up to 5 tons
Condensing units for walk-in freezers and coolers
Commercial refrigeration racks
HVAC systems with long refrigerant line sets
Units requiring higher static pressure due to restrictive grilles or ducted condenser applications
Many HVAC professionals consider the 1/3 HP motor the “upgrade choice” when replacing older 1/4 HP motors in systems that have experienced performance degradation due to dirty coils or partially restricted airflow. The extra torque helps overcome added resistance without overworking the motor.
Several trends have made the 1/3 HP Condenser Fan Motor increasingly common in modern HVAC systems:
Higher Efficiency Standards: Modern condensers use microchannel coils and enhanced fin designs that create higher airflow resistance. A 1/3 HP motor provides the additional static pressure capability needed to move air through these dense coils.
Larger Condenser Coils: To meet minimum efficiency requirements, manufacturers have increased condenser coil surface area. Larger coils require larger fan blades, which demand more torque.
Urban Installations: Condensers placed in confined spaces (balconies, alcoves, mechanical rooms) need fan motors capable of overcoming restricted airflow paths. The 1/3 HP motor handles these challenging installations better than smaller motors.
Heat Pump Popularity: Heat pumps operate year-round and must move air efficiently in both cooling and heating modes. The 1/3 HP motor provides consistent performance across all seasons.
Replacement Market Reliability: When the original motor fails, upgrading from 1/4 HP to 1/3 HP provides a margin of safety. The slightly larger motor runs cooler and lasts longer, especially in hot climates.
Selecting the correct 1/3 HP Condenser Fan Motor requires attention to several critical parameters:
RPM Rating: Common speeds include:
825 RPM – For larger fan blades (24-26 inches) or noise-sensitive applications
1075 RPM – The most common speed for 2.5 to 4-ton residential condensers
1625 RPM – For smaller condensers or high-static pressure requirements
Voltage: Most 1/3 HP motors operate on 208-230V single-phase power. Some older or smaller units may use 115V. Always verify nameplate voltage.
Frame Size: The standard frame for 1/3 HP condenser fan motors is 48Y or 48Z. Some commercial motors use 56 frames. Frame size determines mounting hole spacing and bolt pattern.
Shaft Dimensions: Shaft diameter is typically 1/2 inch, though 5/8 inch shafts are found on some commercial models. Shaft length ranges from 1.5 inches to 6 inches. Measure carefully.
Enclosure Type: Outdoor applications require weather-resistant enclosures:
Totally Enclosed Air-Over (TEAO) – Preferred for outdoor condensers
Open Drip-Proof (ODP) – Acceptable if protected from direct rain
Totally Enclosed Fan-Cooled (TEFC) – For harsh or dusty environments
Rotation: Reversible rotation is highly desirable. Most 1/3 HP motors allow lead swapping to change between clockwise and counterclockwise.
Capacitor Rating: Permanent Split Capacitor (PSC) motors in this class typically require a run capacitor between 7.5 and 15 microfarads (mfd). Common values include 7.5 mfd, 10 mfd, and 12.5 mfd.
Service Factor: Look for a motor with a service factor of at least 1.0. A higher service factor (e.g., 1.15) indicates the motor can handle intermittent overload without damage.
The 1/3 HP motor serves a diverse range of cooling equipment:
Residential Central Air Conditioners: Most 3 to 3.5-ton residential condensers use a single 1/3 HP condenser fan motor. These systems are common in warmer climates where longer cooling seasons demand reliable performance.
High-Efficiency Condensers (16+ SEER): High-efficiency units often use larger, denser coils that require more fan power. The 1/3 HP motor is frequently specified by manufacturers for their premium product lines.
Heat Pump Outdoor Units: Heat pumps operating in both heating and cooling modes benefit from the consistent torque of a 1/3 HP motor. Extra power helps overcome frost accumulation on the outdoor coil during defrost cycles.
Light Commercial Package Units: Rooftop units from 3 to 5 tons often use 1/3 HP condensor fan motors. These units may have two fans or a single larger fan, depending on design.
Walk-in Freezer Condensers: Freezer applications are particularly demanding because head pressures rise significantly during hot pull-down. A 1/3 HP motor provides the margin needed for reliable operation.
Swimming Pool and Spa Heat Pumps: Pool heating equipment operates in harsh environments with chemical exposure and high ambient temperatures. The 1/3 HP motor handles these conditions well.
Be alert for these common failure indicators:
Slow starting: The fan takes more than 5 seconds to reach full speed after the compressor starts.
Grinding or scraping noises: Bearing failure or fan blade rubbing against the coil guard.
Frequent thermal trips: The motor runs for 10-15 minutes, stops, then restarts after cooling.
Excessive current draw: Measured amperage exceeds the nameplate rating by 20% or more.
Housing discoloration: Darkened or yellowed paint near the center of the motor indicates prolonged overheating.
Oil leakage: Staining around the shaft or end bells suggests bearing seal failure.
Trustec has engineered its 1/3 HP condenser fan motors with features that matter most for demanding applications:
High-Torque Design: Trustec’s optimized winding configuration delivers maximum starting torque, ensuring reliable startup even under high head pressure conditions or low voltage.
Ball Bearing Construction: Double-sealed, pre-lubricated ball bearings provide superior life compared to sleeve bearings. Trustec bearings are rated for 50,000 hours of continuous operation.
All-Weather Protection: The motor housing features a corrosion-resistant epoxy coating that withstands salt spray, UV exposure, and chemical atmospheres.
Superior Insulation: Class F (155°C) insulation protects the windings during extreme heat events or voltage fluctuations. This exceeds the Class B insulation found in many competitor motors.
Thermal Overload Protection: An automatic resetting thermal protector guards against damage from blocked airflow, high ambient temperatures, or voltage sags.
Universal Mounting Base: Trustec motors include multiple mounting hole patterns to fit brackets from different OEM manufacturers. This reduces installation headaches.
Follow these steps for a successful 1/3 HP motor replacement:
Disconnect all power to the condenser unit. Verify with a voltmeter.
Remove the top grille and fan blade. Mark the blade position on the shaft. Count the number of exposed shaft threads if applicable.
Document wiring connections. Take clear photographs before disconnecting any wires.
Remove the old motor. Clean the mounting bracket and remove any rust.
Replace the run capacitor. Use a new capacitor with exactly the same microfarad rating. Never reuse an old capacitor with a new motor.
Install the new Trustec motor. Use the original bolts and any rubber isolation grommets.
Mount the fan blade at the correct depth. Blade tips should have at least 1/4 inch clearance from the coil guard.
Wire according to the diagram. Verify rotation direction before reassembly.
Test operation. The motor should reach full speed within 3 seconds of startup.
Reinstall the grille and verify no rubbing occurs.
Symptom | Likely Cause | Solution |
|---|---|---|
Motor does not start | Failed capacitor, open winding, or seized bearing | Test capacitor and continuity; replace motor if seized |
Motor runs hot (>220°F) | Undersized motor or dirty condenser coil | Upgrade to 1/2 HP or clean coil |
Noisy operation | Worn bearings or loose mounting bolts | Replace motor; tighten all hardware |
Low airflow | Wrong rotation or incorrect blade depth | Reverse leads; adjust blade position |
Intermittent operation | Thermal overload tripping | Check for binding or high head pressure |
The 1/3 HP Condenser Fan Motor represents the ideal choice for modern HVAC systems that demand more airflow, higher static pressure capability, and long-term reliability. Whether you are replacing a failed motor in a residential condenser or stocking your service vehicle for commercial calls, the 1/3 HP size covers a vast range of applications.
Trustec’s commitment to quality manufacturing means every 1/3 HP motor we produce delivers consistent torque, quiet operation, and exceptional durability. By selecting the correct RPM, voltage, and capacitor rating, and following proper installation procedures, you can extend the life of your entire cooling system while reducing energy consumption and avoiding costly compressor failures.
