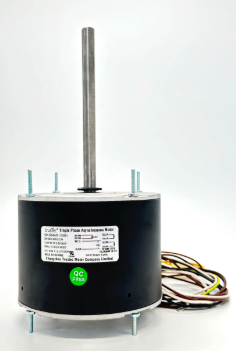

When homeowners and HVAC technicians need a reliable replacement for a failed outdoor fan motor, the 1/4 HP Condenser Fan Motor is often the first choice. This power rating strikes an ideal balance between energy efficiency and airflow performance, making it one of the most commonly specified motors for residential air conditioning condensers, heat pumps, and small commercial refrigeration units. At Trustec, we have engineered our 1/4 HP motors to deliver consistent torque, quiet operation, and long service life under demanding outdoor conditions. Understanding the technical details and applications of this popular motor size helps ensure you select the right replacement for your cooling system.
The “1/4 HP” designation indicates the motor’s mechanical power output—one-quarter of a horsepower, or approximately 186 watts. A 1/4 HP condenser fan motor provides sufficient torque to drive fan blades ranging from 18 to 24 inches in diameter at typical speeds of 825 RPM, 1075 RPM, or 1625 RPM, depending on the specific design and application.
This horsepower class is widely used in residential central air conditioning systems from 1.5 to 3 tons of cooling capacity. It is also common in:
Residential split-system condenser units
Package rooftop units (RTUs) up to 3 tons
Heat pump outdoor sections
Small commercial condensing units
Refrigerated display cases
Walk-in cooler condensers
HVAC condenser replacement applications
The 1/4 HP motor is often considered the “standard size” for many popular air conditioner brands, including Carrier, Trane, Lennox, Rheem, Goodman, York, and others. Because of its widespread use, it is typically stocked by most HVAC supply houses and available for same-day replacement.
Choosing a 1/4 HP condenser fan motor offers several practical advantages over both smaller and larger horsepower options:
Optimized Airflow: A properly matched 1/4 HP motor moves enough air across the condenser coil to maintain correct head pressure without wasting energy. Too little airflow causes high condensing temperatures and reduces cooling capacity. Too much airflow can cause refrigerant flooding and compressor damage.
Energy Efficiency: A 1/4 HP motor draws less current than a 1/3 HP or 1/2 HP motor while still providing adequate torque for most residential applications. The energy savings accumulate over years of operation.
Lower Noise Levels: Compared to larger motors, the 1/4 HP size produces less mechanical noise. When paired with the correct fan blade, the aerodynamic noise is also minimized, keeping the condenser quiet during nighttime operation.
Easy Availability: Because 1/4 HP motors are so common, they are rarely backordered. This means less downtime for homeowners and faster service calls for technicians.
Cost-Effective Replacement: The 1/4 HP motor typically costs less than higher-horsepower alternatives, making it an economical choice for budget-conscious repairs.
When replacing a 1/4 HP Condenser Fan Motor, several specifications must match your original equipment:
RPM Rating: Common speeds include:
825 RPM – For larger fan blades or noise-sensitive installations
1075 RPM – The most common speed for 1.5 to 3-ton residential condensers
1625 RPM – Used in smaller condensers or high-static pressure applications
Voltage: Most residential condensers use 208-230V single-phase power, though some older or smaller units may use 115V. Always verify voltage before ordering.
Frame Size: The standard frame for 1/4 HP condenser fan motors is 48Y, though 48Z and 42 frames are also found. Frame size determines bolt hole spacing and shaft diameter, typically 1/2 inch.
Enclosure Type: Outdoor motors require weather protection. Popular enclosure types include:
Totally Enclosed Air-Over (TEAO)
Open Drip-Proof (ODP) with weather cover
Totally Enclosed Fan-Cooled (TEFC) – less common but available
Rotation: Many 1/4 HP motors are reversible by changing lead connections. This simplifies inventory because one motor can serve both clockwise and counterclockwise applications.
Capacitor Rating: Most 1/4 HP PSC (Permanent Split Capacitor) motors require a run capacitor between 5 and 10 microfarads (mfd). Common values include 5 mfd, 7.5 mfd, and 10 mfd.
Shaft Dimensions: Shaft diameter is typically 1/2 inch. Shaft length ranges from 1.5 inches to 6 inches. Measure carefully before ordering.
The 1/4 HP Condenser Fan Motor appears in a wide variety of cooling equipment:
Residential Central Air Conditioners: Most single-family homes with 2 to 3-ton air conditioners use a single 1/4 HP condenser fan motor. These units are found both in new construction and as replacements for older failed motors.
Heat Pump Outdoor Units: Heat pumps require condenser fan motors that operate in both summer cooling and winter heating modes. A 1/4 HP motor provides reliable performance across both seasons.
Package Units (RTUs): Small commercial rooftop units up to 3 tons often use 1/4 HP motors for the condenser fan. These units are common on small retail stores, offices, and apartment buildings.
Walk-in Cooler Condensers: Many walk-in coolers in restaurants and grocery stores use 1/4 HP motors to pull air across the condenser coil. Because coolers run 24/7, motor reliability is critical.
Swimming Pool Heat Pumps: Pool heating equipment uses condenser fan motors to reject heat during cooling mode or absorb heat during heating mode. The 1/4 HP size is common for residential pool heat pumps up to 120,000 BTU.
Even quality motors eventually need replacement. Watch for these common failure indicators:
Slow or difficult starting: The fan blade rotates very slowly for several seconds before reaching full speed, or it fails to start entirely.
Loud bearing noise: Grinding, squealing, or rattling sounds indicate bearing wear.
Intermittent operation: The motor runs for a while, stops, and later restarts. This usually means the internal thermal overload is tripping due to overheating.
Excessive heat: The motor housing feels too hot to touch (above 200°F) during normal operation.
Visible damage: Cracked housing, rusted shaft, melted wire insulation, or burned smell.
Fan blade wobble: Excessive vibration that can be seen or felt at the top grille.
Ignoring these signs leads to compressor failure, frozen evaporator coils, and significantly higher electricity bills. Replacing a failing motor promptly is always the most economical choice.
Trustec has designed its 1/4 HP condenser fan motors to exceed OEM specifications while offering easy installation and long-term reliability. Key advantages include:
Heavy-Duty Copper Windings: Trustec uses pure copper magnet wire with Class B (130°C) or Class F (155°C) insulation. Copper windings conduct heat better and resist vibration damage better than aluminum alternatives.
Double-Sealed Ball Bearings: Unlike cheap motors that use sleeve bearings, Trustec motors feature sealed ball bearings rated for 50,000+ hours of continuous operation. Ball bearings handle both horizontal and vertical shaft orientations without lubrication.
Automatic Thermal Overload Protection: Every Trustec 1/4 HP motor includes an auto-reset thermal protector. If the motor overheats due to high ambient temperature or blocked airflow, the protector cuts power. Once cooled, the motor automatically restarts.
Reversible Rotation: Clear wiring instructions allow you to change rotation direction by swapping two leads. One motor fits both clockwise and counterclockwise applications.
Corrosion-Resistant Coating: The motor housing and shaft receive anti-corrosion treatment to withstand coastal environments, road salt, and chemical exposure.
Exact Fit Replacement: Trustec motors are designed as drop-in replacements for OEM models from Carrier, Trane, Lennox, Rheem, Goodman, York, and other major brands.
Proper installation extends motor life and ensures system efficiency:
Disconnect all power to the condenser unit. Lock and tag the disconnect box.
Remove the top grille and carefully extract the fan blade. Mark the blade’s position on the shaft using masking tape or a marker.
Disconnect the wiring from the old motor. Take a photograph or label each wire.
Remove the motor from its mounting bracket. Clean the bracket of rust and debris.
Check the fan blade for cracks, dents, or missing balance clips. Replace if damaged.
Replace the run capacitor with a new one of the exact same microfarad rating. Never reuse an old capacitor.
Mount the new Trustec motor using the original hardware. Apply anti-seize to bolts.
Install the fan blade at the same depth as before. Check clearance between blade tips and the coil guard (minimum 1/4 inch).
Connect the wiring per the diagram on the motor label. Verify rotation direction.
Test run with the grille removed. Listen for unusual noise or vibration.
Symptom | Likely Cause | Solution |
|---|---|---|
Motor hums but does not start | Failed capacitor or seized bearing | Replace capacitor; manually check shaft |
Motor runs but slowly | Incorrect capacitor value or low line voltage | Replace capacitor; check supply voltage |
Motor runs backwards | Wrong lead connection | Reverse rotation leads |
Excessive vibration | Bent fan blade or improper shaft depth | Replace blade; adjust depth |
Motor trips on overload | Dirty condenser coil or incorrect HP | Clean coil thoroughly |
The 1/4 HP Condenser Fan Motor is the backbone of residential and light commercial HVAC systems. Its balanced combination of power, efficiency, and affordability makes it the go-to choice for thousands of service professionals. Whether you are replacing a failed motor in your home air conditioner or stocking your service truck for the upcoming cooling season, Trustec provides the quality and reliability you need.
By selecting the correct RPM, voltage, frame size, and capacitor rating, you ensure your condenser operates at peak efficiency for years to come. Trustec’s engineering standards and rigorous testing mean every 1/4 HP motor we ship is ready to perform in the toughest outdoor conditions.
