When it comes to maintaining large air conditioning systems, heat pumps, and commercial refrigeration units, the 825 RPM Condenser Fan Motor plays a specialized but essential role. While many residential applications rely on higher-speed motors like 1075 RPM, the 825 RPM motor is engineered for applications requiring greater torque, quieter operation, and efficient heat rejection under heavy static pressure. At Trustec, we recognize that matching the correct fan motor speed to the condenser design is key to achieving long equipment life and optimal energy efficiency.
The “825 RPM” designation refers to the motor’s rotational speed—825 revolutions per minute. This is considered a medium-to-low speed for condenser fan motors, but do not mistake lower RPM for lower performance. In fact, 825 RPM motors are typically built with larger frame sizes, higher horsepower ratings, and stronger bearings to handle heavier fan blades and denser coil configurations.
An 825 RPM motor moves a greater volume of air per revolution compared to a faster motor. Because it spins more slowly, it generates less noise and vibration, making it ideal for noise-sensitive environments such as hospitals, hotels, and residential neighborhoods with strict sound ordinances. The slower speed also reduces wear on bearings and shaft seals, extending the motor’s operational life.
The 825 RPM condenser fan motor is not a one-size-fits-all component. It is commonly found in:
Large commercial condensing units (5 to 20+ tons) where condenser coils have high fin density and require steady, high-static airflow.
Roof-top package units (RTUs) that operate 24/7 in data centers or retail environments.
Remote condensers for walk-in coolers and freezers, where long refrigerant lines require stable heat rejection.
Chiller plants with multiple condenser fans staged for capacity control.
Noise-restricted installations such as condensing units placed near bedroom windows, libraries, or outdoor dining areas.
Older HVAC systems designed before the industry shifted toward higher-speed PSC motors.
Many original equipment manufacturers (OEMs) specify 825 RPM motors for units that prioritize low sound levels and durability over peak airflow. Replacing a failed 825 RPM motor with a faster 1075 RPM unit can cause loud fan noise, excessive vibration, and premature motor failure due to improper matching with the fan blade design.
Choosing the correct 825 RPM condenser fan motor requires careful attention to the following parameters:
Horsepower (HP): Common ratings for 825 RPM motors range from 1/3 HP up to 1 HP or more. Higher HP ensures the motor can turn larger, heavier fan blades without overheating.
Voltage: Most units operate on 208-230V single phase, though 460V three-phase versions exist for industrial equipment. Always check the nameplate on the existing motor.
Frame Size: 825 RPM motors often use larger frames such as 48, 56, or even 56Y. Frame size determines bolt hole spacing, shaft diameter, and overall envelope. A 48-frame motor will not fit a bracket made for a 56-frame motor.
Enclosure Type: Because these motors are often installed outdoors, a totally enclosed air-over (TEAO) or totally enclosed fan-cooled (TEFC) enclosure is recommended. Open drip-proof (ODP) motors should only be used in protected locations.
Shaft Diameter and Length: Common shaft diameters are 1/2 inch or 5/8 inch. Shaft length must be sufficient to fully engage the fan blade hub while allowing proper clearance.
Rotation: Many 825 RPM motors come with reversible rotation by swapping lead connections. Reversible motors simplify inventory management for service contractors.
Capacitor Rating: Most single-phase 825 RPM motors require a run capacitor, typically ranging from 7.5 to 20 microfarads (mfd). Always replace the capacitor when installing a new motor.
Due to their slower operating speed, 825 RPM motors tend to last longer than high-speed units, but they are not immune to failure. Watch for these symptoms:
Excessive humming or buzzing without shaft movement – usually a failed start capacitor or seized bearing.
Slow starting – the fan takes 30 seconds or longer to reach full speed.
Intermittent thermal tripping – the motor runs for a period, stops, then restarts after cooling down.
Visible oil leakage around the shaft or bearing housings.
Rust or corrosion on the motor shell, indicating moisture ingress.
Unusual vibration at the condenser grille, often caused by a bent fan blade or worn shaft.
Ignoring these signs leads to high head pressure, compressor overheating, and eventual system shutdown. Replacing a failing motor promptly avoids costly refrigerant loss or compressor burnout.

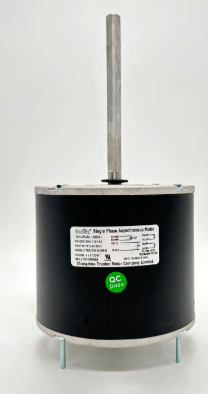

Trustec has engineered its 825 RPM Condenser Fan Motor line to address the specific demands of commercial and heavy-duty residential applications. Key advantages include:
Heavy-gauge steel frames that resist corrosion and provide rigid mounting for vibration-free operation.
High-temperature insulation (Class B or F) that withstands extreme outdoor temperatures and heat soak from condenser coils.
Double-sealed ball bearings pre-lubricated for life, eliminating the need for maintenance in most applications.
Automatic thermal overload protection that resets when the motor cools, preventing permanent winding damage.
Reversible rotation clearly marked on the wiring diagram for easy field configuration.
Factory-tested balance to ensure smooth, quiet operation even at lower RPM.
Trustec motors are also designed as drop-in replacements for obsolete OEM models from Carrier, Trane, Lennox, Rheem, Goodman, and York. Our comprehensive cross-reference guide makes matching easy.
Installing an 825 RPM condenser fan motor requires more attention to static clearance and fan blade balance than higher-speed motors. Follow these steps for a successful replacement:
Disconnect all power to the condenser unit. Verify with a multimeter.
Remove the top grille and condenser fan blade. Mark the blade’s exact position on the shaft using a marker or tape.
Disconnect wiring from the old motor. Take a photograph for reference.
Unbolt the motor from its mounting bracket. Note any rubber isolators or bushings – these must be reused.
Inspect the fan blade for cracks, dents, or missing balance clips. Replace if damaged.
Install the new Trustec motor using the existing bracket. Apply anti-seize compound to the mounting bolts to prevent future corrosion.
Mount the fan blade at exactly the same depth as before. Use a straightedge to check clearance between the blade tips and the coil guard.
Connect the run capacitor – do not reuse the old capacitor, even if it tests within tolerance.
Verify rotation direction before reassembling the grille. Momentarily apply power and observe the blade spin. Reverse leads if necessary.
Listen for any rubbing or clicking during the first minute of operation. Stop immediately if unusual sounds occur.
Critical note: Because 825 RPM motors produce less centrifugal force, they are more sensitive to blade imbalance. Even a small missing balance clip will cause noticeable vibration. Always replace a damaged fan blade with a factory-specified replacement.
A correctly matched 825 RPM condenser fan motor operates in a lower amperage range than a mismatched high-speed motor. If you replace an original 825 RPM motor with a faster unit, the fan will draw more current, run hotter, and potentially trip its internal overload during high ambient temperatures.
Conversely, using the correct 825 RPM Trustec motor maintains proper condenser subcooling and head pressure. This keeps the compressor in its efficient operating range and reduces monthly utility bills by 10–15% compared to a failing or mismatched motor.
For commercial properties with dozens of condenser fans, the cumulative savings from proper motor selection can amount to thousands of dollars annually.
Symptom | Likely Cause | Solution |
|---|---|---|
Motor runs but fan spins slowly | Undersized capacitor or low voltage | Replace capacitor; check supply voltage |
Loud grinding noise | Worn ball bearings | Replace motor immediately |
Motor doesn’t start at all | Open winding or failed capacitor | Test continuity; test/replace capacitor |
Excessive vibration | Unbalanced fan blade or bent shaft | Balance or replace blade; check shaft runout |
Motor shell very hot to touch (>240°F) | Overloaded or blocked condenser coil | Clean coil; verify HP rating |
The 825 RPM Condenser Fan Motor occupies a vital niche in the HVAC replacement market. It delivers the perfect balance of quiet operation, torque, and longevity for large residential, commercial, and industrial condensing units. Choosing the correct RPM, horsepower, and frame size ensures your system performs reliably even under extreme summer heat.
Trustec’s commitment to quality means every 825 RPM condenser fan motor we ship meets or exceeds OEM specifications. Whether you are a facility manager, an HVAC contractor, or a property owner tackling a repair, Trustec provides the durability and performance you need to keep your cooling systems running efficiently for years to come.
