When an air conditioning system fails on a scorching summer day, the culprit is often a small but mighty component: the air conditioner condenser fan motor. At Trustec, we understand that this part is the unsung hero of any HVAC system. Without a properly functioning condenser fan motor, even the most advanced AC unit cannot reject heat to the outdoors, rendering the entire system useless.
This comprehensive guide explores everything you need to know about the air conditioner condenser fan motor, including how it works, signs of failure, and why quality matters for long-term efficiency.

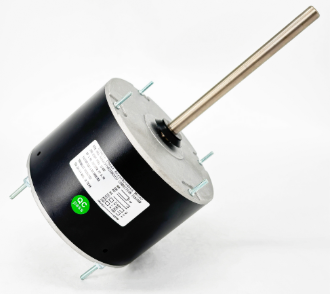

The air conditioner condenser fan motor is an electrical device located inside the outdoor condensing unit. Its primary job is to drive the fan blades that pull ambient air through the condenser coils. As hot, high-pressure refrigerant gas flows into the condenser coil, the fan motor forces air across the coil fins, removing heat and converting the refrigerant back into a liquid state.
Without this critical heat transfer process, your AC would blow warm air, and the compressor would overheat.
To fully appreciate the role of this motor, it helps to understand its operation cycle:
Signal from Thermostat: When your indoor thermostat calls for cooling, it sends a 24V signal to the contactor inside the outdoor unit.
Contactor Engagement: The contactor closes, sending high voltage (typically 208-240V in residential units) to both the compressor and the air conditioner condenser fan motor. These two components run simultaneously.
Airflow Generation: The motor spins the fan, drawing thousands of cubic feet of air per minute (CFM) across the condenser coil.
Heat Rejection: As air passes over the hot coil, it absorbs heat from the refrigerant. The now-cooled liquid refrigerant travels back indoors to absorb heat from your home.
Continuous Cycle: This process repeats until the desired indoor temperature is reached.
Recognizing early warning signs can save you from a complete system breakdown and costly emergency repairs. Here are the most common symptoms:
If your outdoor unit is humming loudly but the fan blades are stationary, the motor may have failed. Sometimes, a faulty start capacitor is the cause. However, if replacing the capacitor doesn’t work, the air conditioner condenser fan motor itself is likely seized.
Does the fan start, stop, start again, and then stop? This erratic behavior often indicates worn internal bearings or failing windings. A motor that overheats will shut down via an internal thermal overload protector. Once it cools, it may restart, only to fail again minutes later.
Listen for grinding, screeching, or rattling noises.
Grinding: Worn-out ball bearings.
Screeching: Friction in the shaft or lack of lubrication (common in older sleeve-bearing motors).
Rattling: A loose fan blade hub or debris inside the unit.
When the condenser fan motor slows down due to failing windings, it cannot move enough air across the coil. This reduces heat transfer, causing the compressor to work harder and eventually blow only slightly cool or warm air from your indoor registers.
A shorted air conditioner condenser fan motor can draw excessive amperage, tripping the breaker. If your outdoor unit’s breaker trips immediately upon a cooling call, suspect a grounded or shorted motor.
When replacing a failed motor, you will typically choose between an OEM (Original Equipment Manufacturer) motor or a universal replacement motor.
OEM Motors:
Designed specifically for your brand of equipment.
Mounting holes, shaft length, and rotation direction match perfectly.
Usually more expensive and may require longer lead times.
Universal Motors:
Designed to fit most brands and models.
Feature adaptable mounting brackets and reversible rotation.
Cost-effective and readily available.
At Trustec, we recommend high-quality universal motors for most applications, provided the horsepower (HP), voltage, RPM, and frame size match or exceed the original specifications.
Selecting the correct specifications for your air conditioner condenser fan motor is non-negotiable. Using an undersized motor (e.g., 1/6 HP instead of 1/4 HP) will cause the motor to overheat and fail prematurely. Conversely, an oversized motor can move air too quickly, reducing the contact time needed for proper heat exchange (dwell time), which hurts efficiency.
Standard specifications for residential condenser fan motors:
Horsepower: 1/6 HP, 1/4 HP, or 1/3 HP
RPM: Most commonly 810 to 1100 RPM
Voltage: 208-230V single phase (or 115V for smaller units)
Always verify the nameplate on your failed motor before purchasing a replacement.
Many people blame the motor when the issue lies with the fan blade. Even a new air conditioner condenser fan motor will fail quickly if the blade is unbalanced, bent, or incorrect. The blade must be set at the perfect depth inside the venturi (the metal shroud). If the blade sits too high or too low, the motor struggles against improper airflow resistance.
When replacing your motor, consider replacing the fan blade simultaneously if it shows any signs of corrosion or damage.
Preventive maintenance is the key to longevity. Follow these Trustec recommendations:
Keep the Coils Clean: Dirty condenser coils force the fan motor to run longer and hotter. Clean coils annually with a garden hose and coil cleaner.
Clear Debris: Remove leaves, grass clippings, and cottonwood seeds from the fan grille and inside the unit. Debris blocks airflow.
Trim Landscaping: Ensure at least 2 feet of clearance around the outdoor unit. Overgrown bushes restrict airflow.
Check the Capacitor Annually: A weak capacitor reduces starting torque, causing the motor to draw high amps and overheat.
Listen Monthly: Make it a habit to walk by your outdoor unit once a month during cooling season. Any unusual sound is a red flag.
At Trustec (www.trustecgroup.com), we don’t just sell parts; we provide reliability. Every air conditioner condenser fan motor in our inventory undergoes rigorous quality testing to ensure efficiency, low noise, and long operational life. We understand that HVAC contractors and property managers need components that work the first time, every time.
Our motors feature:
High-grade copper windings for maximum conductivity.
Sealed ball bearings for quiet, maintenance-free operation.
Thermal overload protection to prevent burnouts.
Easy-to-read wiring diagrams for quick installation.
The air conditioner condenser fan motor is a small investment that protects your much larger investment—the AC system. Ignoring the warning signs of a failing motor leads to compressor failure, which often costs thousands to replace. By choosing a premium replacement motor from Trustec and performing basic maintenance, you can restore your AC’s cooling capacity and avoid the summer heat.
If your condenser fan motor is slow, noisy, or not running at all, don’t wait until the system shuts down completely. Explore our selection of high-performance replacement motors designed for lasting durability.
Trustec – Keeping Your Cool, Season After Season.
