When maintaining or repairing commercial and residential HVAC systems, few components are as critical to system performance as the condenser fan motor. Among the many specifications available on the market, the 1075 RPM Condenser Fan Motor stands out as a standard workhorse for a wide range of air conditioning and refrigeration applications. At Trustec, we understand that selecting the right motor directly impacts energy efficiency, equipment longevity, and operational reliability.
The term “1075 RPM” refers to the rotational speed of the motor—1075 revolutions per minute. This speed rating is common in condenser units because it provides an optimal balance between airflow and static pressure. A condenser fan motor’s primary job is to draw ambient air across the condenser coil, removing heat from the refrigerant inside. If the fan spins too slowly, the system loses cooling capacity and risks high head pressure. If it spins too fast, noise and energy consumption increase unnecessarily.
The 1075 RPM speed has become an industry standard for many 1/3 HP, 1/4 HP, and 1/2 HP condenser fan motors. These motors are typically found in outdoor condensing units for central air conditioners, heat pumps, commercial refrigerators, and package units.
When sourcing a replacement or new 1075 RPM Condenser Fan Motor, several technical details determine compatibility and performance:
Horsepower (HP): Common ratings are 1/6, 1/4, 1/3, 1/2, and 3/4 HP. The required horsepower depends on the fan blade diameter and pitch. For a standard residential condenser, 1/4 to 1/3 HP is typical.
Voltage: Most HVAC applications use 115V (single phase) or 208-230V. Always verify your unit’s voltage before ordering.
Enclosure Type: Outdoor condenser motors must be protected from moisture and debris. A totally enclosed air-over (TEAO) or totally enclosed fan-cooled (TEFC) design is recommended. Many 1075 RPM motors feature open drip-proof (ODP) construction but require proper weather shielding.
Frame Size: The most common frame for this RPM class is 48Y or 48Z. Frame size dictates mounting hole spacing, shaft diameter, and overall dimensions. A mismatched frame will not fit your condenser fan bracket.
Rotation and Shaft: Reversible rotation motors are ideal for flexibility. Shaft length (typically 1/2 inch to 6 inches) must match your existing fan blade hub position.
The versatility of the 1075 RPM motor makes it suitable for:
Residential AC Condensers: Most single-family home units from 1.5 to 5 tons use this speed range.
Light Commercial Refrigeration: Walk-in cooler and freezer condensers often rely on 1075 RPM motors for consistent heat rejection.
Heat Pump Outdoor Units: Both cooling and heating modes require reliable fan operation.
Package Roof Units (RTUs): Many commercial RTUs employ multiple 1075 RPM condenser fans for staged cooling.
Hydronic and Radiant Cooling Systems: Where fan-assisted condensation occurs.
Even high-quality motors eventually fail. Watch for these common failure indicators:
Bearing noise: Squealing, grinding, or rattling suggests worn bearings.
Slow or erratic rotation: If the fan struggles to reach full 1075 RPM, the start capacitor or windings may be failing.
Overheating: A motor that feels too hot to touch (>250°F) indicates electrical or mechanical issues.
Intermittent operation: The motor runs for a while, shuts off unexpectedly, then restarts – often due to thermal overload.
Physical damage: Rusted housing, cracked shaft, or melted wire insulation.
Ignoring these signs leads to compressor failure, frozen evaporator coils, and increased electricity bills.

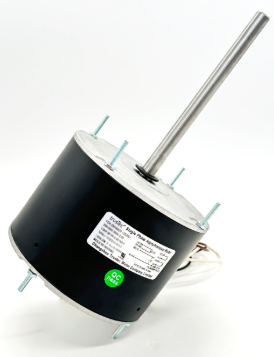

When replacing a failed motor, choosing a reliable brand minimizes callbacks and ensures years of trouble-free operation. Trustec’s 1075 RPM Condenser Fan Motor line offers:
Precision-balanced rotors for vibration-free operation at full speed.
High-grade copper windings to reduce heat generation and improve energy efficiency.
Sealed ball bearings (instead of sleeve bearings) for longer service life, especially in vertical shaft applications.
Automatic thermal overload protection that resets after the motor cools down, preventing permanent damage.
Reversible rotation – simply change lead connections to switch between clockwise and counterclockwise.
Corrosion-resistant coating on all external steel parts, ideal for coastal or high-humidity environments.
Installing a 1075 RPM Condenser Fan Motor requires technical care. Follow these steps for a successful replacement:
Disconnect power completely. Use a lockout/tagout device.
Remove the condenser fan grille and blade. Mark the blade position on the shaft – balance is critical.
Disconnect the old motor wiring. Photograph or label wires for reference.
Remove the mounting bracket screws and lift out the old motor.
Check the capacitor rating. Most 1075 RPM motors require a run capacitor between 5 and 20 mfd (microfarads). Always replace the capacitor when changing the motor.
Install the new Trustec motor using the existing bracket. Ensure the shaft length aligns properly.
Mount the fan blade at the exact same depth as before. Use a feeler gauge to confirm blade clearance inside the shroud.
Secure all electrical connections with wire nuts and electrical tape. Verify the rotation direction matches your unit’s airflow requirements.
Test operation before reassembling the top grille. Listen for unusual noises or vibration.
Pro tip: If your original motor used a 1075 RPM rating but a different horsepower, it’s safe to use a slightly higher HP motor (e.g., 1/2 HP replacing a 1/3 HP), but never lower. The Trustec cross-reference guide makes matching easy.
A properly functioning 1075 RPM Condenser Fan Motor directly reduces energy consumption. When an old motor struggles due to worn bearings or winding insulation breakdown, it draws higher amperage. This increases your electrical bill and shortens compressor life due to inadequate heat rejection.
Replacing an inefficient 1075 RPM motor with a modern Trustec equivalent typically reduces amp draw by 15–25%. For a commercial unit running 3,000 hours per summer season, the energy savings alone can pay for the motor within one cooling season.
Furthermore, maintaining correct evaporator and condenser pressures prevents refrigerant flooding or slugging – a common cause of premature compressor failure. The relatively low cost of a fan motor is a smart investment compared to a $2,000+ compressor replacement.
Even new motors can exhibit issues if installed incorrectly. Here are quick troubleshooting tips:
Symptom | Likely Cause | Solution |
|---|---|---|
Motor hums but doesn’t start | Bad capacitor or stuck bearing | Test/replace capacitor; manually spin shaft |
Motor runs slowly | Wrong capacitor value or low voltage | Replace capacitor; check supply voltage |
Fan rotates backwards | Incorrect lead connection | Reverse black and purple leads (or follow motor diagram) |
Excessive vibration | Bent fan blade or improper shaft depth | Replace blade; adjust depth |
Overheating and tripping | Undersized motor or blocked airflow | Upgrade HP; clean condenser coil |
As HVAC systems evolve toward variable-speed and EC (electronically commutated) motors, fixed-speed PSC motors like the 1075 RPM remain the standard for millions of existing units. Trustec continues to manufacture drop-in replacements that match legacy form factors while improving reliability.
For facility managers and contractors, stocking a few common 1075 RPM Condenser Fan Motors covers the majority of service calls. Trustec offers bulk packaging and quick shipping to minimize equipment downtime.
The 1075 RPM Condenser Fan Motor is more than just a generic replacement part – it is a critical component that determines whether your air conditioning system operates efficiently or wastes energy while struggling to keep pace with demand. By understanding the technical specifications, application requirements, and installation best practices, you can ensure your condenser unit delivers peak performance for years to come.
For HVAC professionals and property owners seeking durability, efficiency, and exact-fit compatibility, Trustec provides the quality and support you need. Whether you service residential split systems, light commercial refrigeration, or packaged rooftop units, choosing the right 1075 RPM motor makes all the difference.
