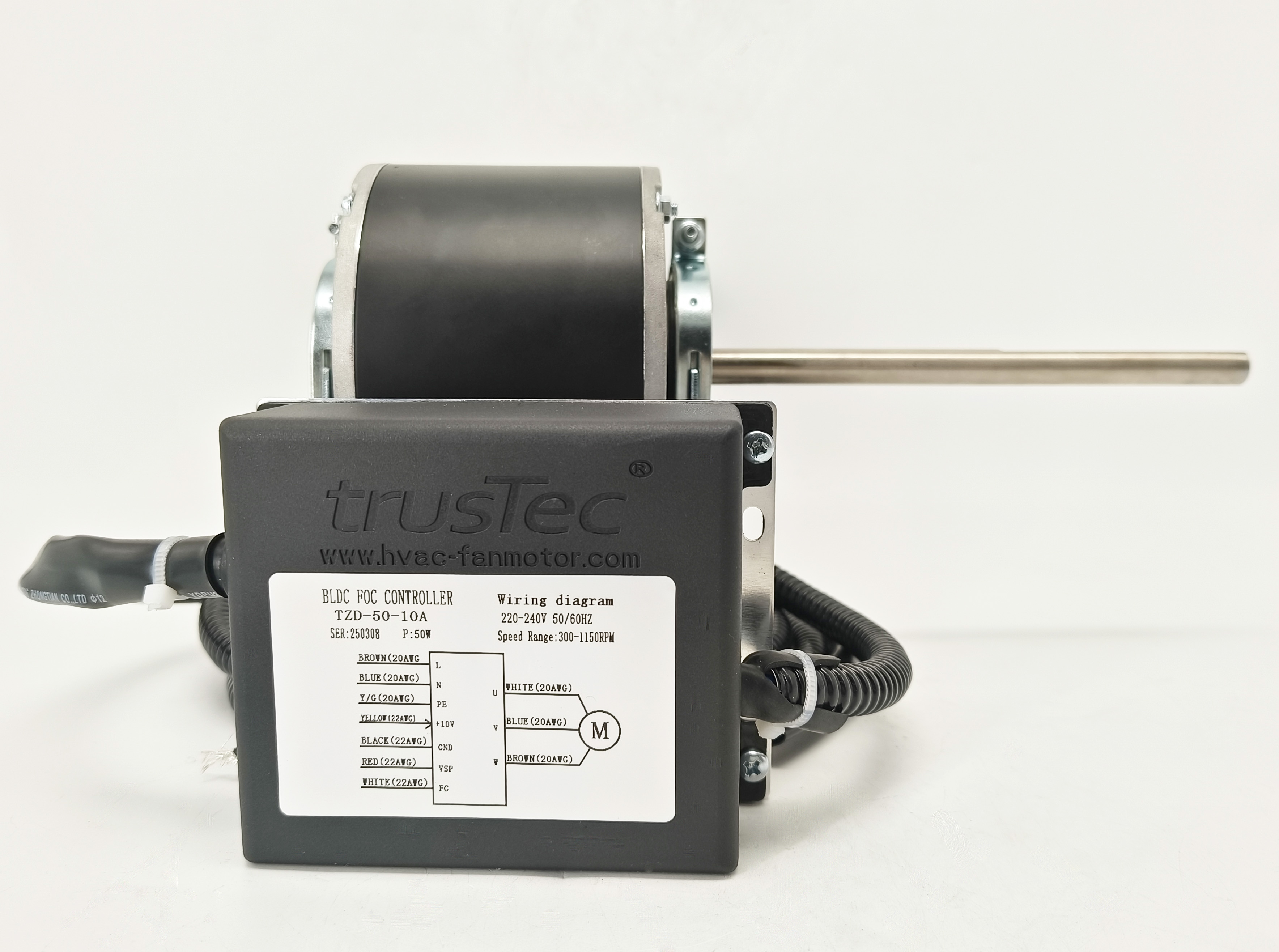

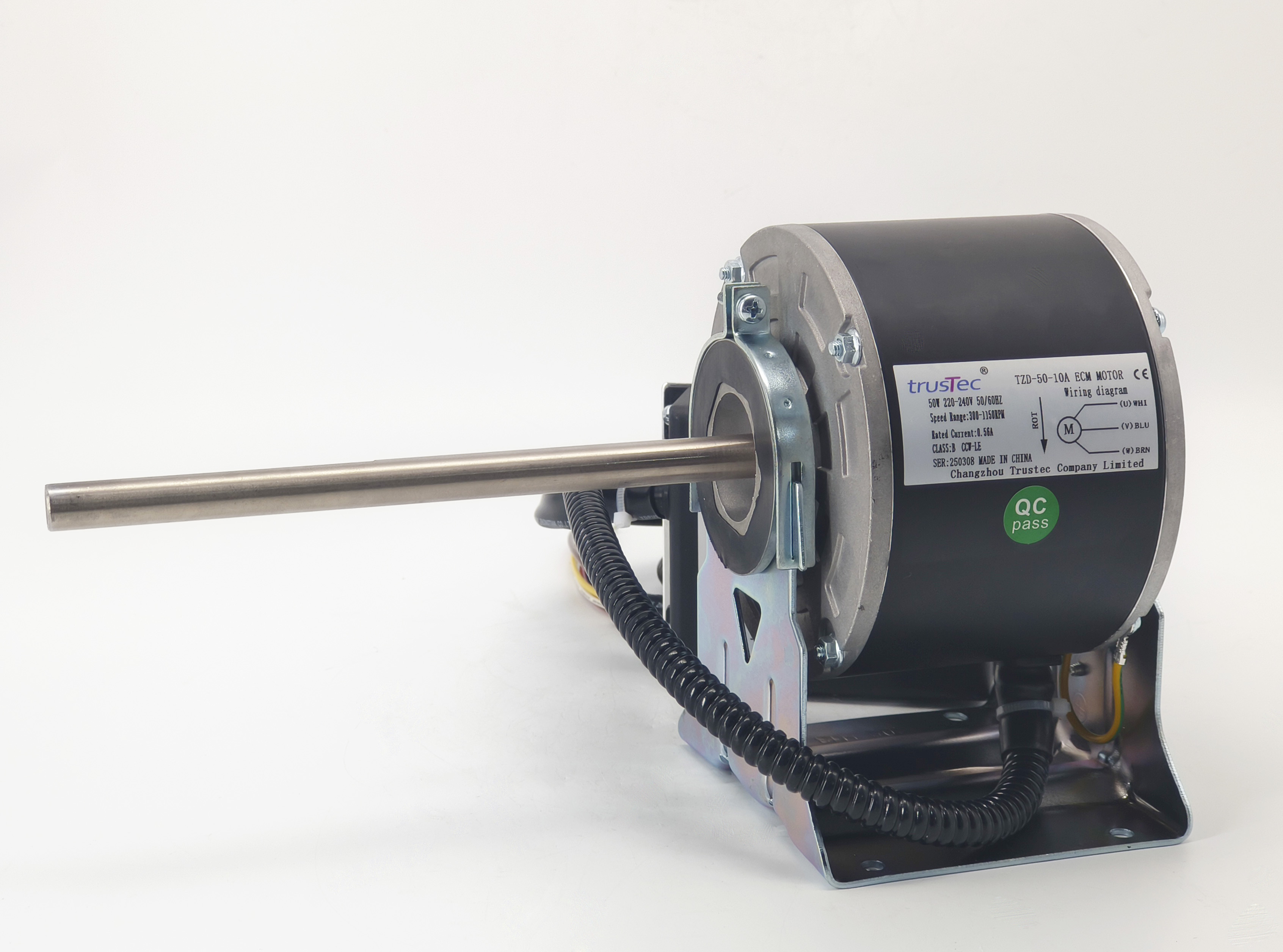

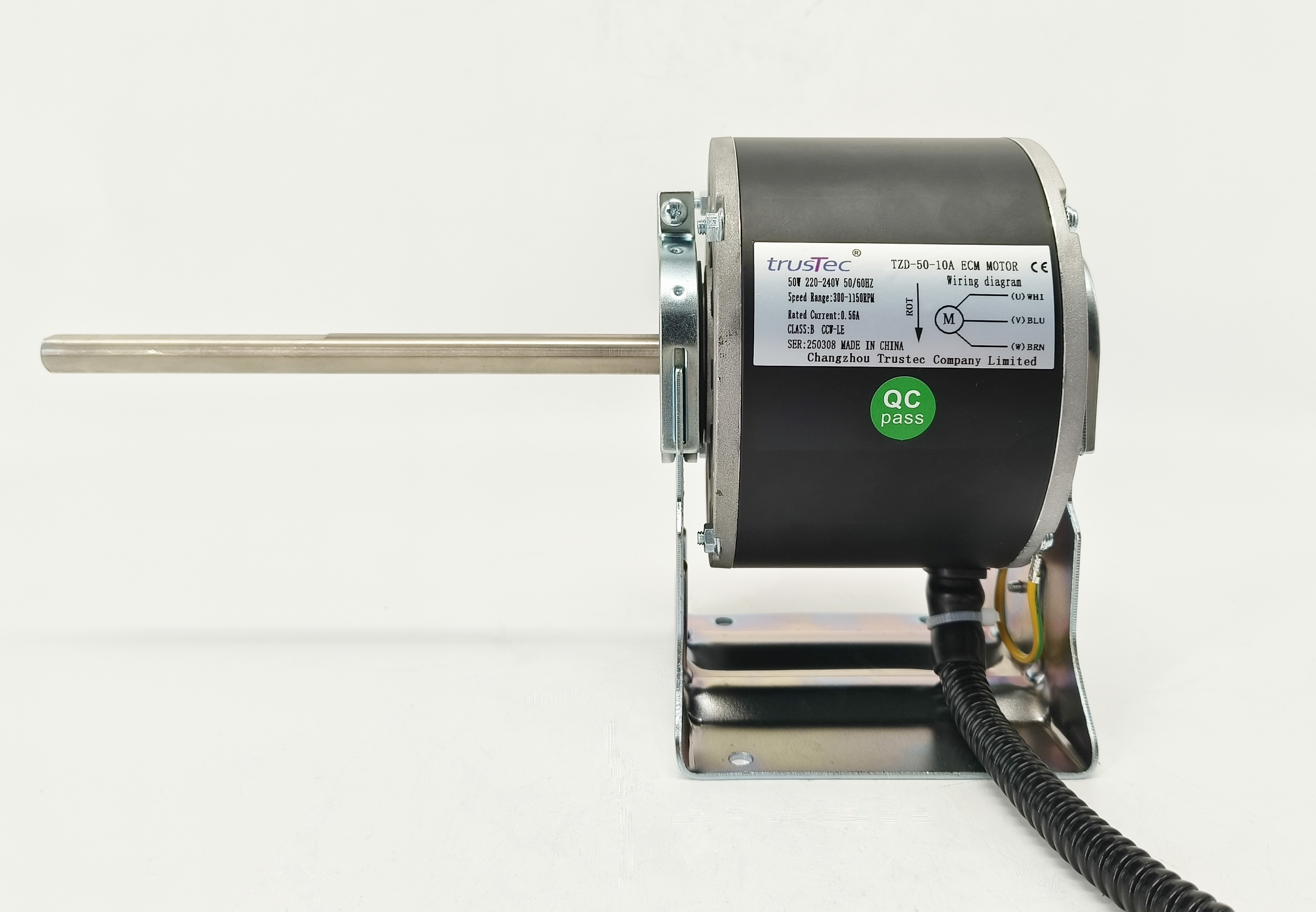

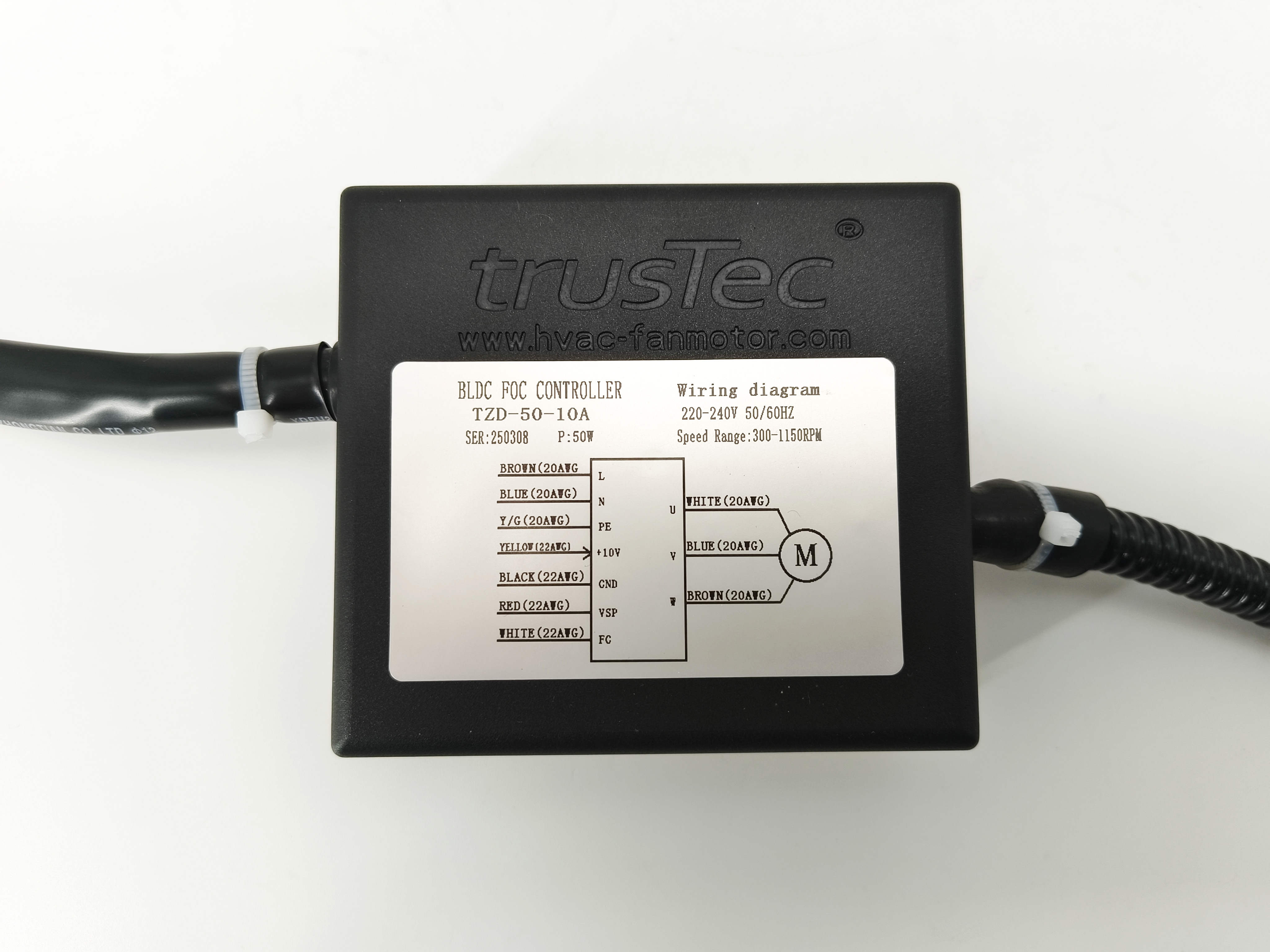

TZD-50-10A-UTZ
trusTec
1/15HP
300-1150RPM
200pcs
Negotiable (FOB/CNF/CIF)
Standard carton packing, foam board inside for protection.
T/T, L/C
15 days fresh products after order confirmation.
100,000 pcs per month
| Quantity: | |
|---|---|
| Product: | EC Fan Coil Unit Motor | Supply Voltage: | 220-240V |
|---|---|---|---|
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 50/60HZ |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 0.56A |
| Phase: | Single Phase | Output Power: | 1/15Hp |
| Mounting: | Bracket | Speed: | 300-1150RPM |
| Bearings: | Ball Bearing | Poles: | 10P |
| Mounting Orientation: | All Angle | Flat Length: | 3.15"/80mm |
| Insulation Class: | Class B | Shaft Length: | 11.50"/292mm |
| Control Mode: | VSP 0-10V | Shaft Diameter: | 0.49" / 12mm |
| Rotation: | CCW(LE) | Lead Length: | 62.99"/1600mm |
| Max. Ambient Temperature: | 40℃/104℉ | Motor Shell Length: | 3.43"/87mm |
1. In reply to your inquiry within 12 hours. Because we are valuing every customer.
2. We cooperate with customer to design and develop new product. Provide OEM.
3. We provide quality after-sales service.
4. 15-30 days leading time.
5. We are willing to help you arrange delivery, testing or other requests.
1. As a professional motor manufacturer, we are specialized in designing and producing all kinds of motors for room, commercial and central air conditioners.
2. Our main products are fan coil unit motors, motors for split, cabinet, window air-conditioner, high static pressure motors, ceiling air-conditioner motors, air cooling motors, single and three phase motors, kinds of pump motors, PG motor and DC brushless motors.
3. Our products have been approved by RoHS, CCC, CE and UL certificates, and the products have been being exported to the main market such as North America, Europe and Mid-east.
The warranty is 18 months on the production date, under the warranty we will afford the shipping cost to send the replacement.
Yes, we can offer the ODM.
Yes. We have distributors in USA, Holland, Spain, Turkey, Sudan, UAE, KSA...
The precise price will be quoted after checking the specification and mounting dimension of the motor.
| Product: | EC Fan Coil Unit Motor | Supply Voltage: | 220-240V |
|---|---|---|---|
| Enclosure Type: | TEAO(Totally Enclosed Air Over) | Supply Frequency: | 50/60HZ |
| Thermal Overload: | Equipped With An Automatic Thermal Overload | Current: | 0.56A |
| Phase: | Single Phase | Output Power: | 1/15Hp |
| Mounting: | Bracket | Speed: | 300-1150RPM |
| Bearings: | Ball Bearing | Poles: | 10P |
| Mounting Orientation: | All Angle | Flat Length: | 3.15"/80mm |
| Insulation Class: | Class B | Shaft Length: | 11.50"/292mm |
| Control Mode: | VSP 0-10V | Shaft Diameter: | 0.49" / 12mm |
| Rotation: | CCW(LE) | Lead Length: | 62.99"/1600mm |
| Max. Ambient Temperature: | 40℃/104℉ | Motor Shell Length: | 3.43"/87mm |
1. In reply to your inquiry within 12 hours. Because we are valuing every customer.
2. We cooperate with customer to design and develop new product. Provide OEM.
3. We provide quality after-sales service.
4. 15-30 days leading time.
5. We are willing to help you arrange delivery, testing or other requests.
1. As a professional motor manufacturer, we are specialized in designing and producing all kinds of motors for room, commercial and central air conditioners.
2. Our main products are fan coil unit motors, motors for split, cabinet, window air-conditioner, high static pressure motors, ceiling air-conditioner motors, air cooling motors, single and three phase motors, kinds of pump motors, PG motor and DC brushless motors.
3. Our products have been approved by RoHS, CCC, CE and UL certificates, and the products have been being exported to the main market such as North America, Europe and Mid-east.
The warranty is 18 months on the production date, under the warranty we will afford the shipping cost to send the replacement.
Yes, we can offer the ODM.
Yes. We have distributors in USA, Holland, Spain, Turkey, Sudan, UAE, KSA...
The precise price will be quoted after checking the specification and mounting dimension of the motor.
